Huawei Switch S5710-52C-PWR-EI-AC (02354042)


Huawei S5710-52C-PWR-EI-AC is one of the S5700 Series Switches.S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers.


Quick Specification


Table 1 show the quick specification.

Model

S5710-52C-PWR-EI-AC

Part Number

02354042

Extended Slots

two extended slots that support uplink sub-cards

Subcards supported

 2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard

Switching Capacity

416 Gbit/s

Forwarding Performance

192 Mpps

Fixed Interfaces

48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports

PoE Available

PoE+

Power Supply

Double hot-swappable AC power supplies (A 580W AC power unit is included in S5710-52C-PWR-EI-AC model)

Memory (RAM)

512 MB

Flash

200 MB

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.75 in.)

Weight

Empty: ≤ 6 kg (13.23 lb)
Fully loaded: ≤ 10 kg (22.05 lb)

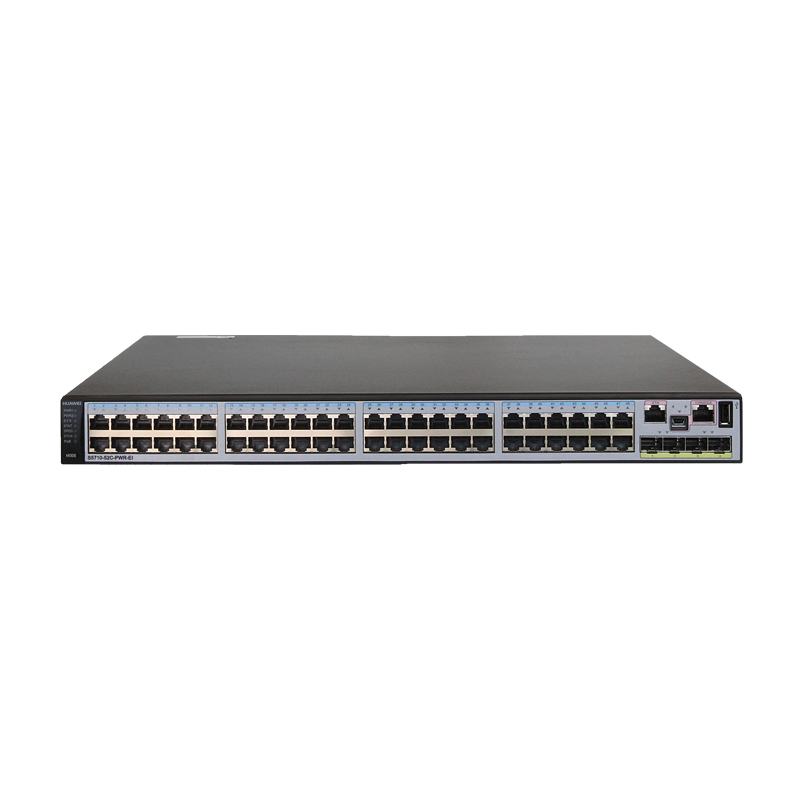

Figure 1 shows the appearance of S5710-52C-PWR-EI-AC.

front-s5710-52c-pwr-ei-ac-datasheet



Product Details

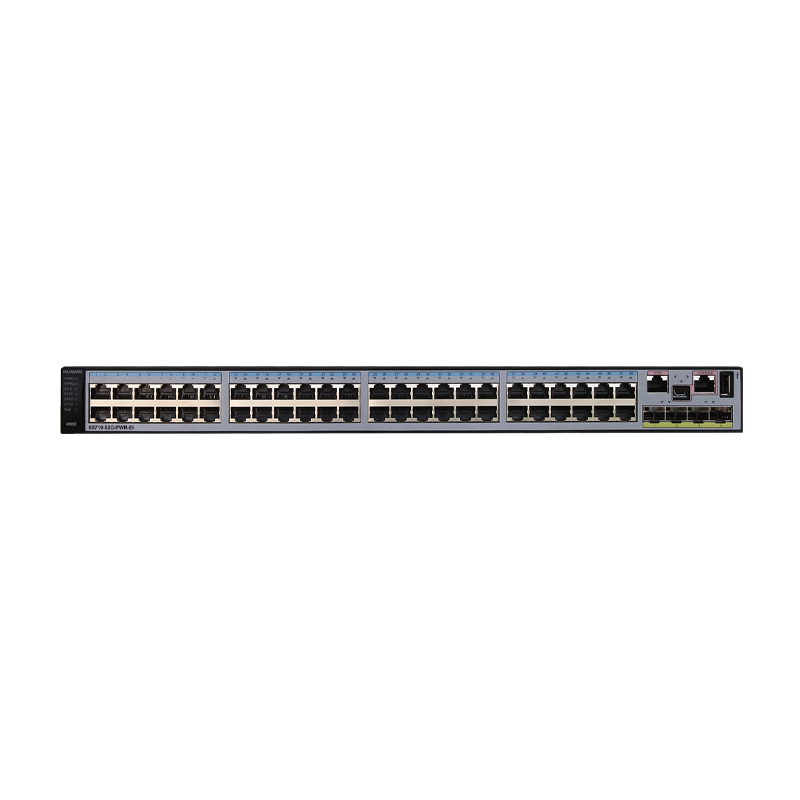

Figure 2 shows the front panel of S5710-52C-PWR-EI-AC.

front-panel-s5710-52c-pwr-ei-ac-datasheet



Note:

(1)

Forty-eight PoE+ 10/100/1000BASE-T ports

(4)

One mini USB port

(2)

Four 10GE SFP+ ports

(5)

One console port

(3)

One ETH management port

(6)

One USB port


Figure 3 shows the back panel of S5710-52C-PWR-EI-AC.

back-panel-s5710-52c-pwr-ei-ac-datasheet

Note:

(7)

Ground screw

(10)

ESN label

(8)

Rear card slot 1

(11)

Power module slot 2

(9)

Rear card slot 2

(12)

Power module slot 1

·You can draw ESN label out to view the ESN and MAC address of the switch.


The Modules, Cards


Table 2 shows the recommended elements for the S5710-52C-PWR-EI-AC.

Model

Description

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

10GE Interface Card

ES5D21X02S00

2 10 Gig SFP+ interface card (used in S5710EI series)

GE Interface Card

ES5D21G08T00

8 Ethernet 10/100/1000 ports interface card (used in S5710EI series)

ES5D21G08S00

8 Gig SFP interface card (used in S5710EI series)


Compare with Similar Item


Table 3 shows the comparison of S5710-52C-PWR-EI-AC and S5710-28C-PWR-EI-AC.

Model

S5710-52C-PWR-EI-AC

S5710-28C-PWR-EI-AC

Subcards supported

 2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard

2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard

Switching Capacity

416 Gbit/s

416 Gbit/s

Forwarding Performance

192 Mpps

156 Mpps

Fixed Interfaces

48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports

24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ ports

PoE Available

PoE+

PoE+


Get more information


Do you have any question about the S5710-52C-PWR-EI-AC (02354042)?

Contact us now via [email protected].

Specific Data Sheet:


S5710-52C-PWR-EI-AC Specification

Fixed port

48 x 10/100/1000Base-T, 4 × 10GE SFP+

MAC address table

IEEE 802.1d compliance
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses

VLAN

4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping

Ring protection

RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731
DLDP
LACP

MPLS features

MPLS L3VPN
MPLS L2VPN(VPWS/VPLS)
MPLS-TE
MPLS QoS
Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

IPv6 features

Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics

QoS/ACL

Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
WRED (supported by the S5710-EI and S5700-HI)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0–50
Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC power supplies.

Dimensions (W x D x H)

442 x 420 x 43.6 mm

Power consumption

< 1043W with two 580W AC supplies (PoE:740W), or <1625W with two 1150W AC supplies (PoE:1440W)
