Huawei Switch S5710-52C-PWR-EI (02355886)

7418
4.5
4.5/5.0
Q/A
0 sold/Mon
Detail: S5710-52C-PWR-EI (48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, with 2 interface slots, without power module)
Model: S5710-52C-PWR-EI (02355886)
Condition: Factory Sealed New
Related: Huawei Switch S5710-52C-EI (02353169) Huawei Switch S5710-52C-PWR-EI-AC (02354042) Genuine New​ S-SFP-GE-LH40-SM1550 (02317347) Huawei 1000BASE-LH40 SFP 1550nm 40km DOM Duplex LC SMF Transceiver Module Genuine New SFP-1000BaseT (02313URG 02314171) Huawei 1000BASE-T SFP Copper RJ-45 100m Transceiver Module
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
6
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S5710-52C-PWR-EI (02355886)


The S5710-52C-PWR-EI gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 48 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports for users, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. It also has multiple card modules to select and unique PoE function. The S5710-52C-PWR-EI is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network.


Quick Specification


Table 1 show the quick specification.

Model

S5710-52C-PWR-EI

Part Number

02355886

Fixed Ports

48 x 10/100/1,000 Base-T
4 x 10 GE SFP+

Extended Slots

2 extended slots

Memory (RAM)

512 MB

Flash

200 MB

MAC Address Table Size Forwarding Performance

32K MAC

Forwarding Performance

192 Mpps

Switching Capacity

416 Gbit/s

Power Supply

AC Double hot-swappable AC power supplies

Voltage Required

AC:
Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz

Power Consumption Operational

< 1,043W with two 580W

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

PoE

Supported

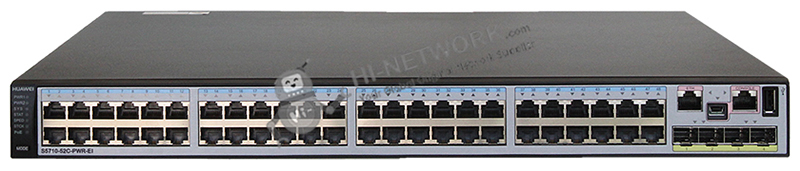

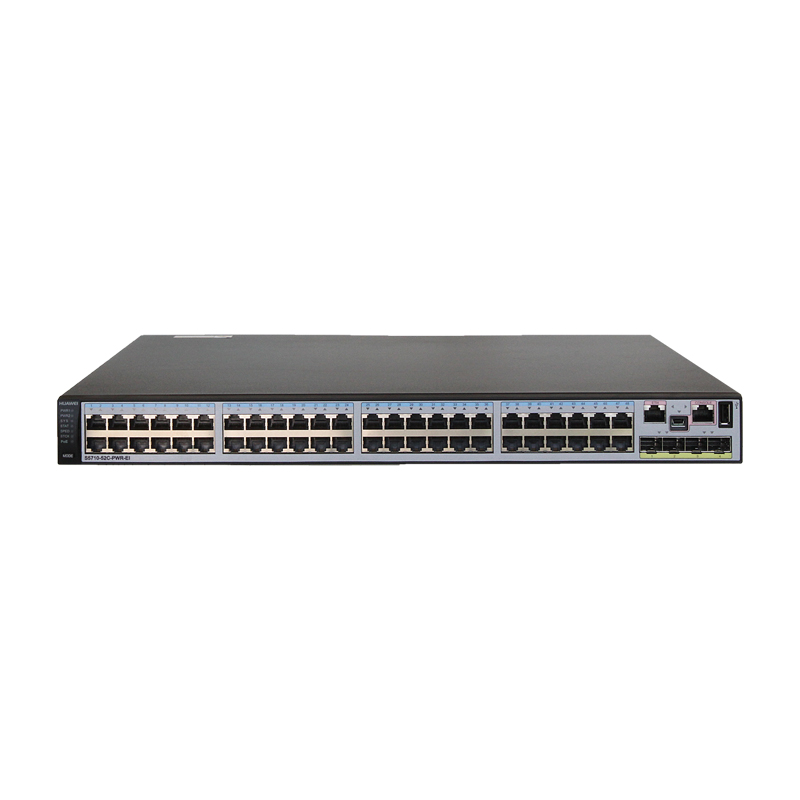

Figure 1 shows the appearance of S5710-52C-PWR-EI.

front-s5710-52c-pwr-ei-datasheet



Product Details

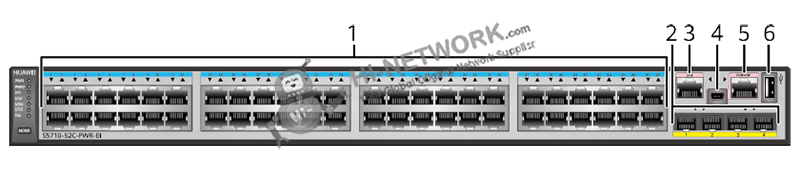

Figure 2 shows the front panel of S5710-52C-PWR-EI.

front-panel-s5710-52c-pwr-ei-datasheet

Note:

(1)

Forty-eight PoE+ 10/100/1000BASE-T ports

(4)

One mini USB port

(2)

Four 10GE SFP+ ports

(5)

One console port

(3)

One ETH management port

(6)

One USB port

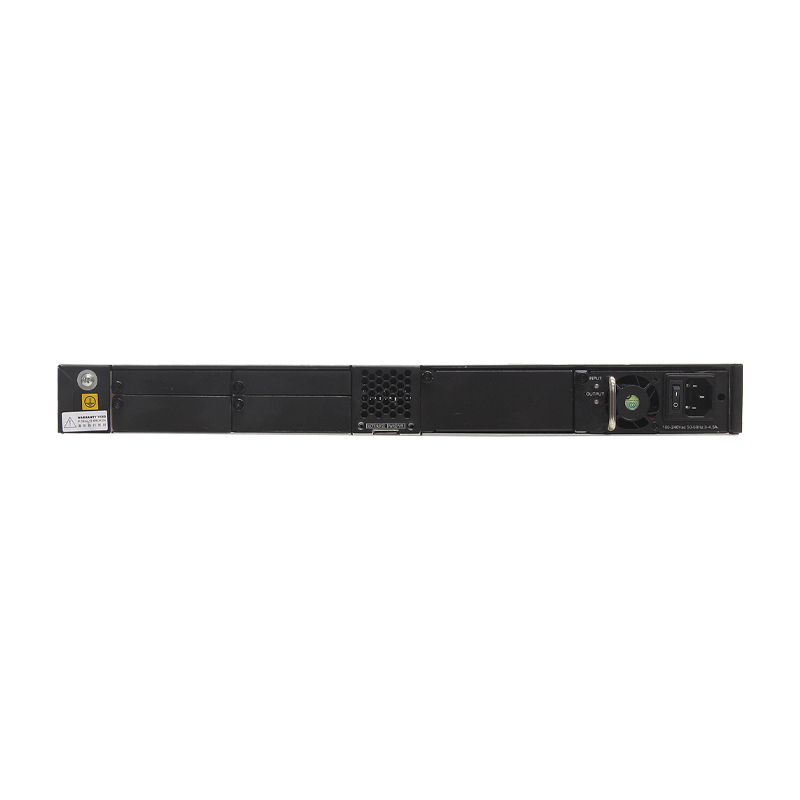

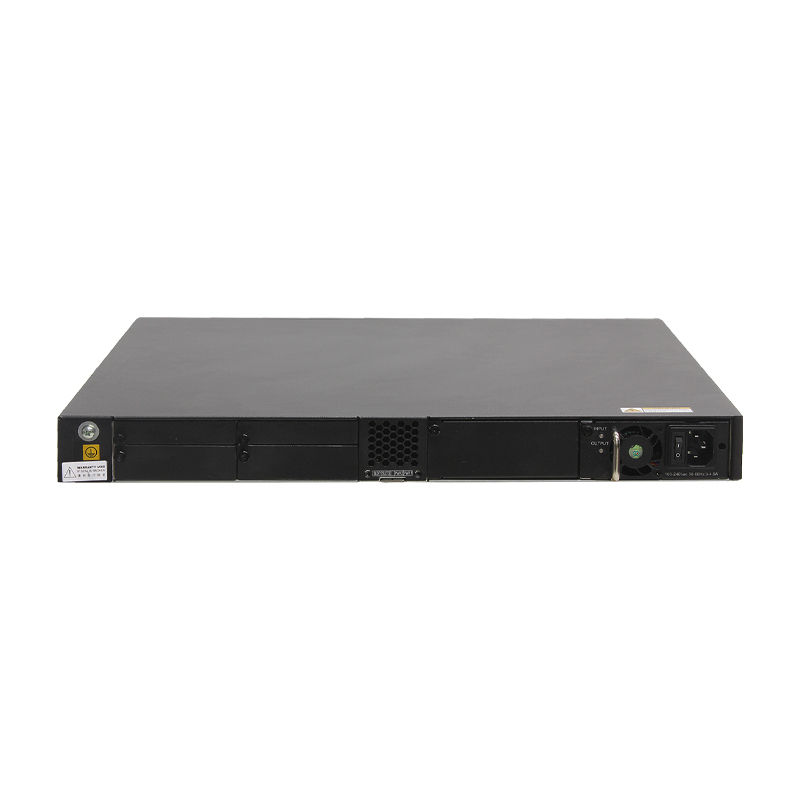

Figure 3 shows the back panel of S5710-52C-PWR-EI.

back-panel-s5710-52c-pwr-ei-datasheet

Note:

(7)

Ground screw

(10)

ESN label

(8)

Rear card slot 1

(11)

Power module slot 2

(9)

Rear card slot 2

(12)

Power module slot 1

*The ground screw is used with a ground cable.

* You can draw the label out to view the ESN and MAC address of the switch.

* AC power supply is built-in here.


Recommended Modules


Table 2 shows the recommended modules.

Typer

Model

Description

Power Module

W2PSA0580

580W AC power module

W2PSA1150

1150W AC Power Module

Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Sngle-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

Card

ES5D21X02S00

2 10 Gig SFP+ interface card (used in S5710EI series)

ES5D21G08S00

8 Gig SFP interface card (used in S5710EI series)

ES5D21G08T00

8 Ethernet 10/100/1000 ports interface card (used in S5710EI series)


Compare with Similar Item


Table 3 shows the comparison of Huawei S5710-52C-EI, S5710-52C-EI-AC, S5710-52C-PWR-EI and S5710-52C-PWR-EI-AC.

Models

S5710-52C-EI

S5710-52C-EI-AC

S5710-52C-PWR-EI

S5710-52C-PWR-EI-AC

Fixed Ports

48 x 10/100/1,000 Base-T4 x 10 GE SFP+

48 x 10/100/1,000 Base-T4 x 10 GE SFP+

48 x 10/100/1,000 Base-T4 x 10 GE SFP+

48 x 10/100/1,000 Base-T4 x 10 GE SFP+

Extended Slots

2 extended slots for uplink subcards

2 extended slots for uplink subcards

2 extended slots for uplink subcards

2 extended slots for uplink subcards.

Power Supply

Double hot-swappable AC/DC

AC power supply

Double hot-swappable AC power supplies

Double hot-swappable AC power supplies

Forwarding Performance

192 Mpps

 192 Mpps

192 Mpps

192 Mpps

Switching Capacity

416 Gbit/s

  416 Gbit/s

 416 Gbit/s

416 Gbit/s

Power Consumption

< 165W

< 165W

PoE model:< 1,043W with two 580W
AC supplies (PoE: 740W)
or < 1,625W with two 1,150W
AC supplies (PoE: 1,440W)

PoE model:< 1,043W with two 580W
AC supplies (PoE: 740W)
or < 1,625W with two 1,150W
AC supplies (PoE: 1,440W


Get more information


Do you have any question about the S5710-52C-PWR-EI (02355886)?

Contact us now via [email protected].

Specific Data Sheet:


S5710-52C-PWR-EI Specification

MAC address table

IEEE 802.1d compliance
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS (G.8032) (supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731
DLDP
LACP
E-Trunk (supported by the S5700-SI/S5700-EI/S5700-HI series)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN
MPLS L2VPN(VPWS/VPLS)
MPLS-TE
MPLS QoS
Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing
RIPv1, RIPv2 and RIPng,ECMP (supported by the S5700-SI/S5700-EI/S5700-HI series)
OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel (supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
WRED (supported by the S5710-EI and S5700-HI)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist

Access Security

DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security

Management and maintenance

Virtual cable test
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0–50
Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
DC:
Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC power supplies.
