S2710-52P-SI-AC (02354128) S2710-52P-SI-AC (02354128)
  • S2710-52P-SI-AC (02354128)
  • S2710-52P-SI-AC (02354128)

Huawei Switch S2710-52P-SI-AC (02354128)

379
4.9
4.9/5.0
Q/A
1 sold/Mon
Detail: S2710-52P-SI-AC(48 Ethernet 10/100 ports,4 Gig SFP,AC 110/220V)
Model: S2710-52P-SI-AC (02354128)
Condition: Factory Sealed New
Related: Huawei Switch S2710-52P-EI-AC (02352333) Huawei Switch S2710-52P-PWR-EI (02354131)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
9.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei Switch S2710-52P-SI-AC (02354128)


The S2700 is provided in the standard version (SI) and enhanced version (EI). The S2700 switches of the EI series are collectively called S2700-EI, and the S2700 switches of the SI series are collectively called S2700-SI. S2710-SI is a sub-series switch of S2700-SI. Huawei S2710-52P-SI-AC switch provides 48 Ethernet 10/100 ports and 4 Gig SFP.


Quick Specification:

Model

S2710-52P-SI-AC

Part Number

02354128

Memory (RAM)

128 MB

Flash

16 MB

PoE

Not supported

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight

≤ 3.5 kg (7.72 lb)

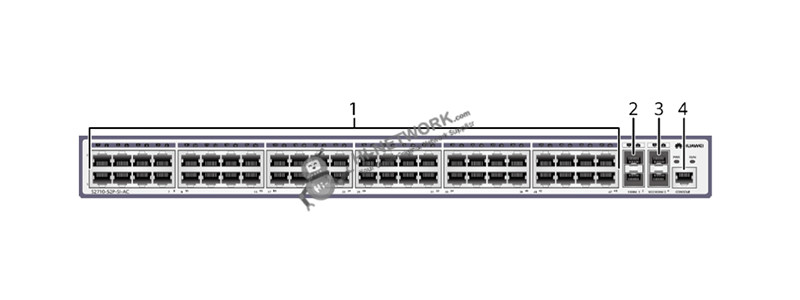

The Front Panel:

s2710-52p-si-ac-front-datasheet



Forty-eight 10/100BASE-TX ports



Two 1000BASE-X ports



Two 100/1000BASE-X ports



One console port

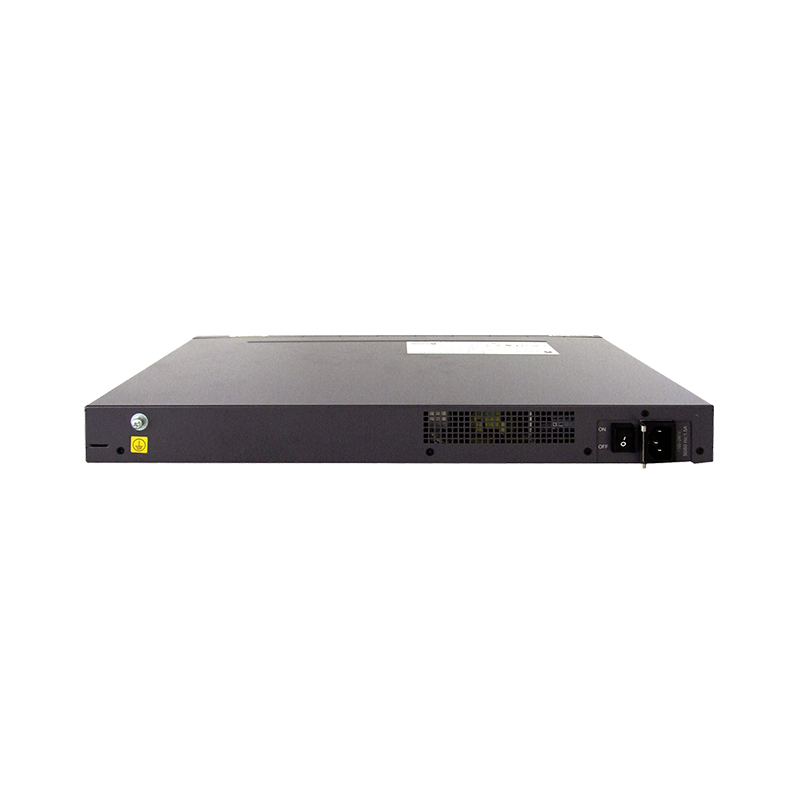

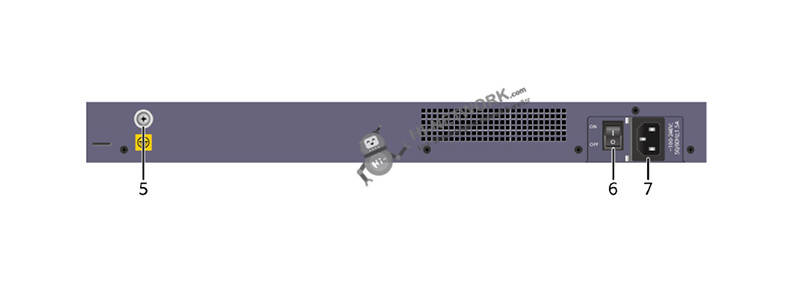

The Back Panel:

s2710-52p-si-ac-back-datasheet



Ground screw



Power switch



AC socket


The Accessories for S2710-52P-SI-AC

Recommended optical transceivers:

Models

Descriptions

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)


Compare to Similar Items:

Models

S2700-52P-EI-AC

S2710-52P-SI-AC

Downlink Ports

48 Ethernet 10/100 ports

48 Ethernet 10/100 ports

Uplink Ports

4 Gig SFP

4 Gig SFP

Power Supply

AC

AC

Models’ vesion

Enhanced

Standard

Get More Information

Do you have any question about the S2710-52P-SI-AC 02354128?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02354128

Model

S2710-52P-SI-AC

Memory (RAM)

128 MB

Flash

16 MB

Mean time between failures (MTBF)

26.8 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)

Weight

≤ 3.5 kg (7.72 lb)

Stack ports

Two 1000BASE-X ports

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)

38 W

Operating temperature

-5°C to +50°C (23°F to 122°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Silent

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
