Huawei Switch S2710-52P-PWR-EI (02354131)

USD

4.9 4.9/5.0 Reviews Q/A 1 sold/Mon
Detail:	S2700-52P-PWR-EI(48 Ethernet 10/100 PoE+ ports,4 Gig SFP,with 500W AC power supply)
Model:	S2710-52P-PWR-EI (02354131)
Condition:	Factory Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 9.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Switch S2710-52P-PWR-EI (02354131)

HUAWEI S2700-52P-PWR-EI is the new generation layer 2 intelligence switch. It integrates 48 Fast Ethernet PoE+ ports with 4 Gigabit Ethernet SFP uplink ports. HUAWEI S2700 uses iStack technology to virtualize multiple switches into a single one to ease user management and configuration and expand the system switching capacity. By utilizing stack features enhances reliability and scalability, moreover, this greatly reduces system operation and maintenance costs.

Quick Specification:

Model	S2700-52P-PWR-EI
Part Number	02354131
Memory (RAM)	128 MB
Flash	16 MB
PoE	Supported
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight	≤ 8 kg (17.64 lb)

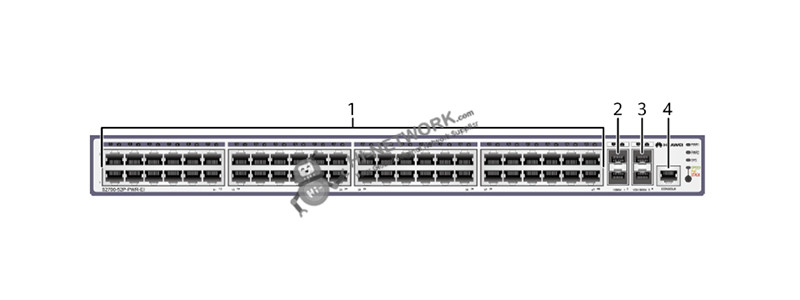

The Front Panel:

s2700-52p-pwr-ei-front-datasheet

①	Forty-eight 10/100BASE-TX ports
②	Two 1000BASE-X ports
③	Two 100/1000BASE-X ports
④	One console port

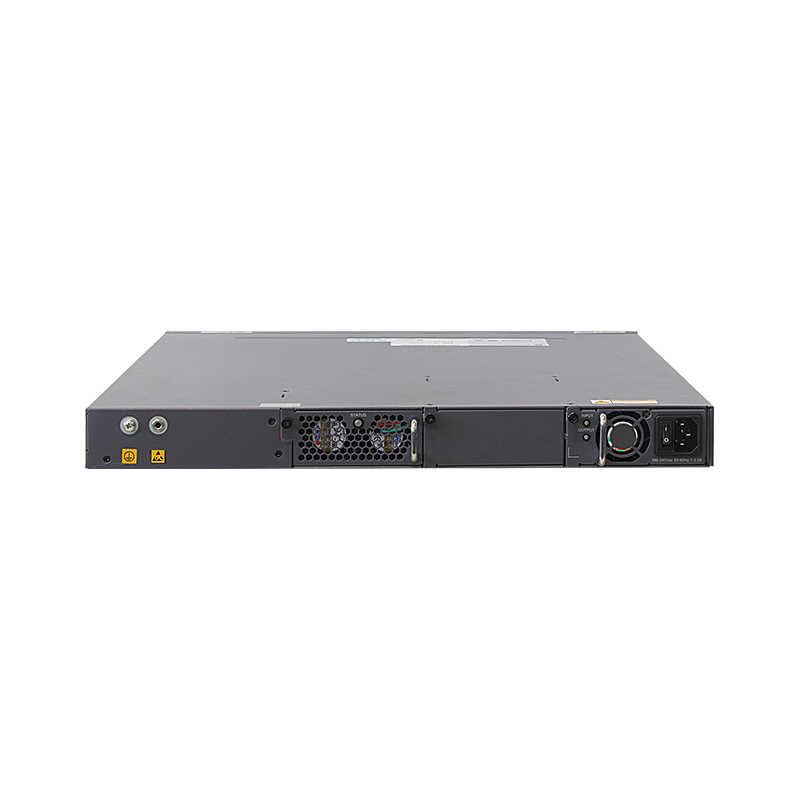

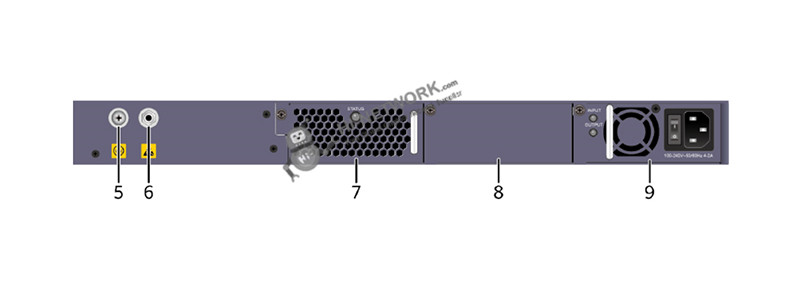

The Back Panel:

s2700-52p-pwr-ei-back-datasheet

⑤	Ground screw
⑥	Power switch
⑦	AC socket

The Accessories for S2710-52P-PWR-EI

Recommended optical transceivers:

Models	Descriptions
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module (1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module (1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module (1310nm,40km,LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km,LC)

Compare to Similar Items:

Models	S2700-52P-EI-AC	S2700-52P-PWR-EI
Downlink Ports	48 Ethernet 10/100 ports	48 Ethernet 10/100 ports
Uplink Ports	4 Gb SFP	4 Gb SFP
Power Supply	AC	AC
PoE Support	None	PoE+

Get More Information

Do you have any question about the S2700-52P-PWR-EI 02354131?

Specific Data Sheet:

Part Number	02354131
Model	S2700-52P-PWR-EI
Memory (RAM)	128 MB
Flash	16 MB
Mean time between failures (MTBF)	35.4 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±1 kV
Power supply surge protection	±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight	≤ 8 kg (17.64 lb)
Stack ports	Two 1000BASE-X ports
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	880 W (system power consumption: 140 W, PoE: 740 W)
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 51 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
