Huawei Switch CE5855-48T4S2Q-EI (02350TJD)



Huawei CE5855-48T4S2Q-EI provides 48*GE line-speed ports plus 4*10 GE and 2*40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.



Quick Specification


Table 1 shows the Quick Specification.

Model

CE5855-48T4S2Q-EI

Part Number

02350TJD

Software Version

V100R005C10 and later

Base-T Ports

48

SFP+ Ports

4

QSFP+ Ports

2

Switching Capacity

336 Gbit/s

Forwarding Rate

252 Mpps

Power module type

Pluggable AC or DC power module, 1+1 backup supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC

Maximum power consumption

103W

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight (fully loaded)

8.4 kg (18.5 lb)

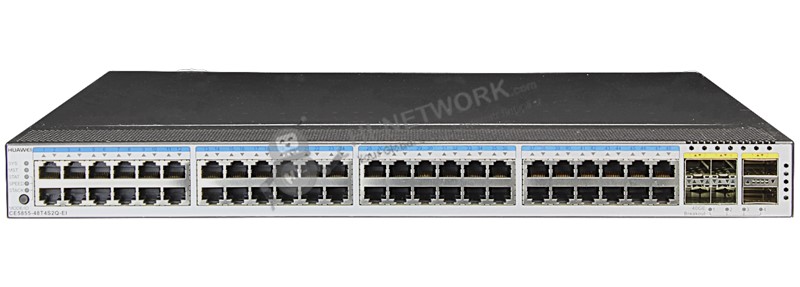

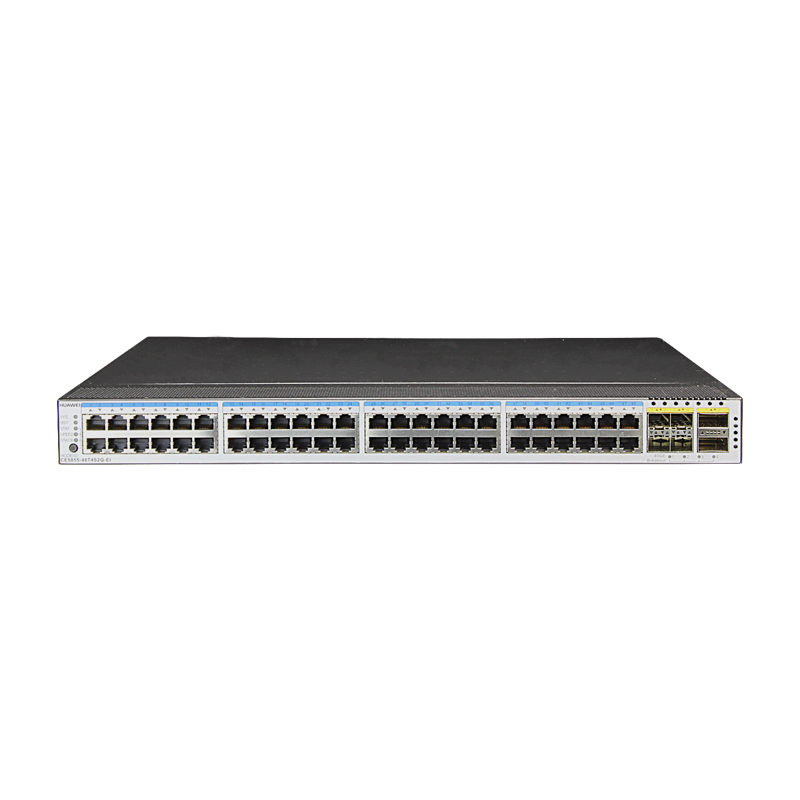

Figure 1 shows the appearance of CE5855-48T4S2Q-EI.


front-ce5855-48t4s2q-ei-datasheet

Product Details

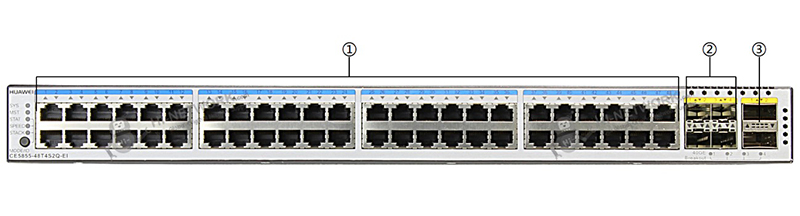

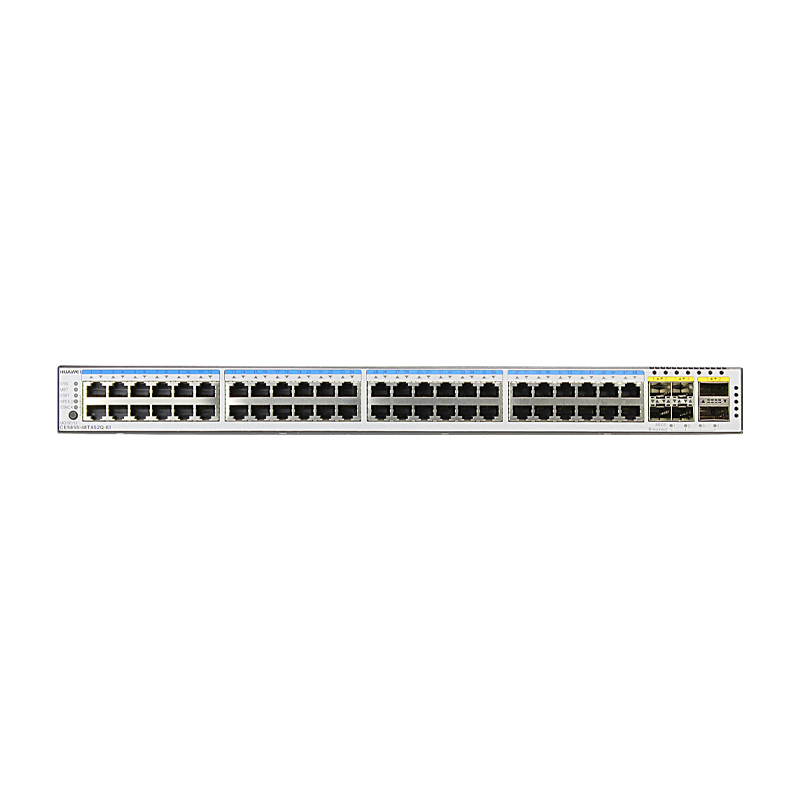

Figure 2 shows the CE5855-48T4S2Q-EI front view (port side).


front-panel-ce5855-48t4s2q-ei-datasheet

Note:

(1)

Forty-eight 10/100/1000BASE-T Ethernet electrical ports

(2)

Four 10GE SFP+ Ethernet optical ports

(3)

Two 40GE QSFP+ Ethernet optical ports

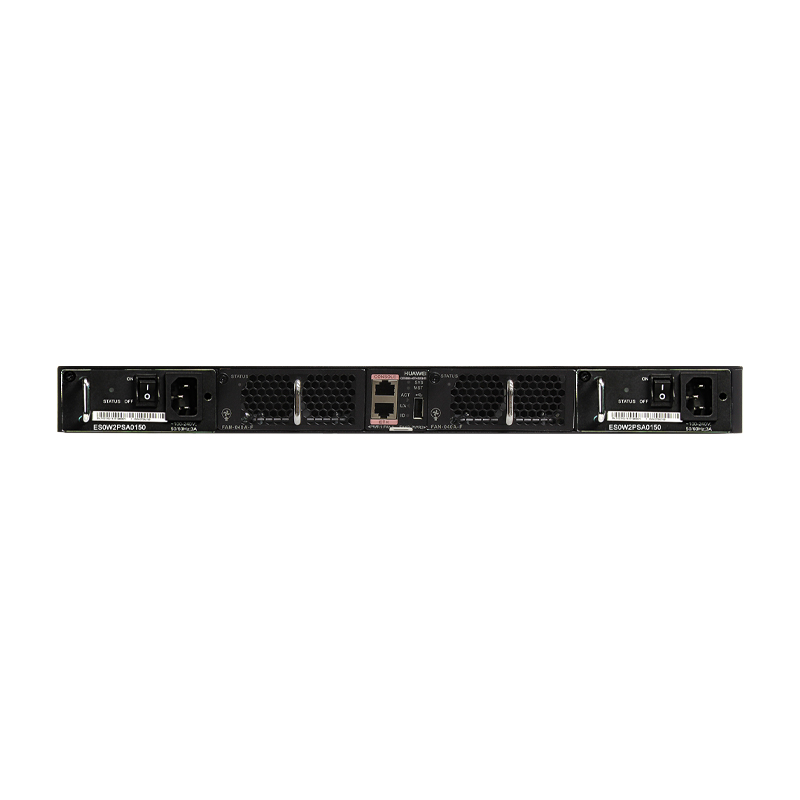

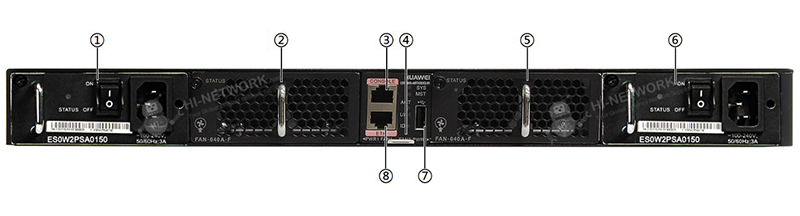

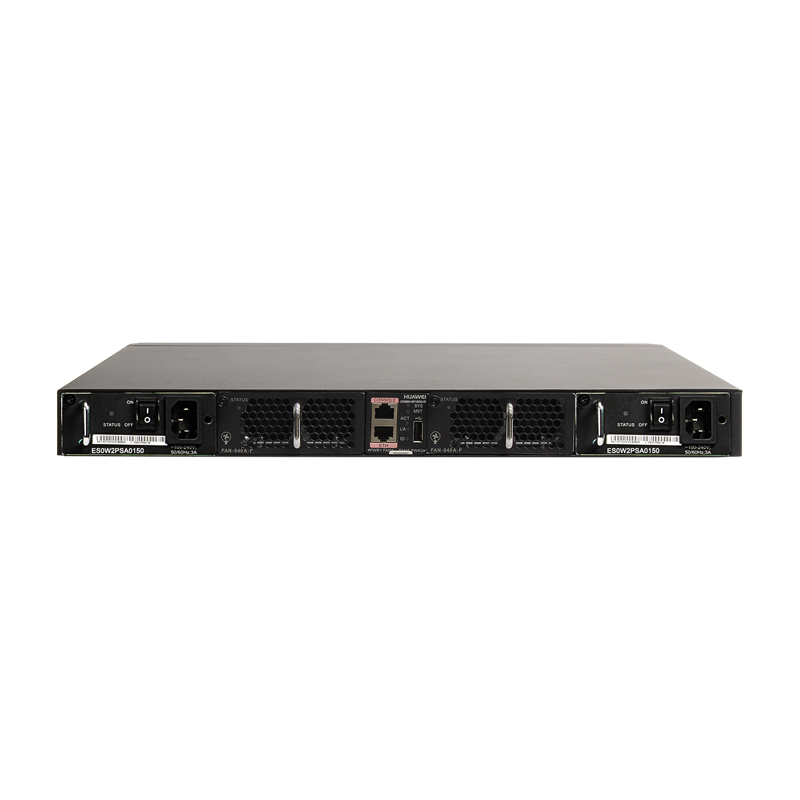

Figure 3 shows the CE5855-48T4S2Q-EI rear view (power supply side).


back-panel-ce5855-48t4s2q-ei-datasheet

Note:

(1)

Power supply slot 1

(5)

Fan slot 2

(2)

Fan slot 1

(6)

Power supply slot 2

(3)

Console port

(7)

USB port

(4)

Barcode label

(8)

ETH management port (RJ45)


The Modules


Table 2 shows the recommended elements for the CE5855-48T4S2Q-EI-B.

Model

Description

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Get More Information


Do you have any question about the CE5855-48T4S2Q-EI (02350TJD)?

Contact us now via [email protected].

Specific Data Sheet:


CE5855-48T4S2Q-EI Specification

Base-T Ports

48

SFP+ Ports

4

QSFP+ Ports

2

Switching Capacity

336 Gbit/s

Forwarding Rates

252 Mpps

Airflow Design

Front-to-back or back-to-front

Device Virtualization

iStack
Super Virtual Fabric (SVF)

Network Virtualization

M-LAG
TRILL (CE5855 & CE5850)

Programmability

Open Programmability System (OPS)

Traffic Analysis

NetStream
sFlow

VLAN

Adding access, trunk, and hybrid interfaces to VLANs
Default VLAN
QinQ
MUX VLAN
GVRP

ACL

ingress: 9k
egress: 2k

MAC Address Table

maximum: 64k
Dynamic learning and aging of MAC addresses
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
MAC address limiting based on ports and VLANs

ARP (maximum)

54k

ND (Maximum)

16k

IPv4 FIB (maximum)

32k

IP Routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv6 FIB (maximum)

16k

IPv6

IPv6 Neighbor Discovery (ND)
Path MTU Discovery (PMTU)
TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6

Multicast FIB (maximum)

2k

Multicast

IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
IGMP snooping
Fast leave of multicast member interfaces
Multicast traffic suppression
Multicast VLAN

Reliability

LACP
STP, RSTP, VBST, MSTP
BPDU protection, root protection, and loop protection
Smart Link and multi-instance
DLDP
ERPS (G.8032)
VRRP, VRRP load balancing, and BFD for VRRP
BFD for BGP/IS-IS/OSPF/Static route

QoS

Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Actions of ACL, CAR, re-marking, and scheduling
Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
Congestion avoidance mechanisms, including WRED and tail drop
Traffic shaping

Configuration and Maintenance

Console, Telnet, and SSH terminals
Network management protocols, such as SNMP v1/v2c/v3
File upload and download through FTP and TFTP
BootROM upgrade and remote upgrade
802.3az Energy Efficient Ethernet (EEE)
Hot patches
User operation logs
Zero-Touch Provisioning (ZTP)

Security and Management

802.1x authentication
Command line authority control based on user levels, preventing unauthorized users from using commands
DoS, ARP, and ICMP attack defenses
Port isolation, port security, and sticky MAC
Binding of the IP address, MAC address, interface number, and VLAN ID
Authentication methods, including AAA, RADIUS, and HWTACACS
Remote Network Monitoring (RMON)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

Weight (fully loaded)

8.4 kg (18.5 lb)

Environmental Parameters

Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Relative humidity: 5% to 95%, non-condensing

Operating Voltage

AC: 90V to 264V
DC: -38.4V to -72V

Maximum Power Consumption

103W
