Huawei SNMP-Based Switch S1700-52FR-2T2P-AC (98010461)

The Huawei S1700-52FR-2T2P-AC is full web-managed switch with 48 Ethernet 10/100 ports, 2 Ethernet 10/100/1,000 ports and 2 Gig SFP. It is green, energy-saving and belongs to the Ethernet access switch. SNMP-managed switch supports MSTP examples up to eight, making the networks smooth. With rich safety features, it can prevent attacks from hackers and virus in order to build secure, reliable, high-performance and multi-service networks for small- and medium-size enterprises.

Quick Specification:

Model	S1700-52FR-2T2P-AC
Part Number	98010461
PoE	Not supported
Memory (RAM)	128 MB
Flash	16 MB
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (including packaging)	< 3 kg (6.62 lb)

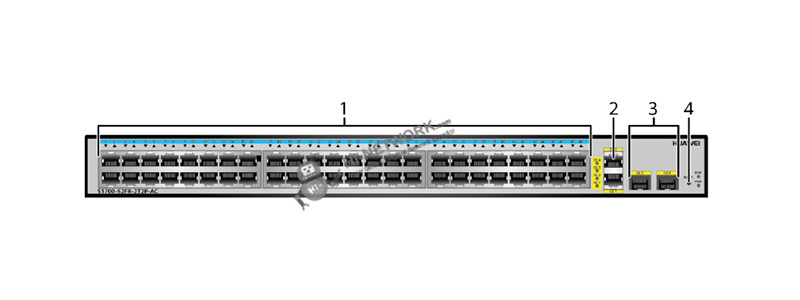

The Front Panel:

s1700-52fr-2t2p-ac-front-datasheet

①	Forty-eight 10/100BASE-TX ports
②	Two 10/100/1000BASE-T ports
③	Two 1000BASE-X ports
④	Reset button

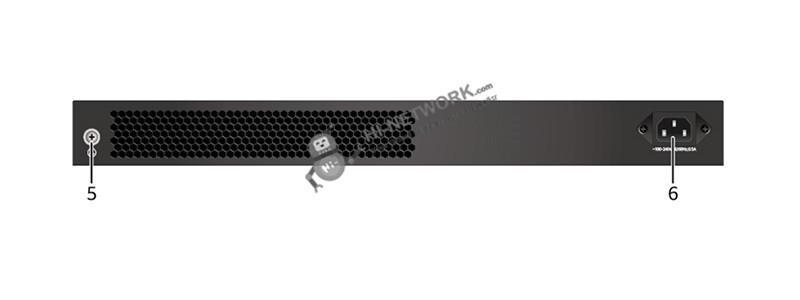

The Back Panel:

s1700-52fr-2t2p-ac-back-datasheet

⑤	Ground screw
⑥	AC power socket

The Accessories for S1700-52FR-2T2P-AC

Optical Modules:

Port	Optical Module	Description
1000BASE-X Ethernet port	eSFP-GE-SX-MM850	Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
	SFP-GE-LX-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
	S-SFP-GE-LH40-SM1310	Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
	S-SFP-GE-LH40-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)

Compare To Similar Items:

Model	S1700-28FR-2T2P-AC	S1700-52FR-2T2P-AC	S1700-52R-2T2P-AC
Type	Web/SNMP-based Switch	Web/SNMP-based Switch	Unmanaged Switch
Down link Ports	24 Ethernet 10/100 ports	48 Ethernet 10/100 ports	48 Ethernet 10/100 ports
Uplink Ports	2 Ethernet 10/100/1,000 ports and 2 Gig SFP	2 Ethernet 10/100/1,000 ports and 2 Gig SFP	2 Ethernet 10/100/1,000 ports and 2 Gig SFP
MAC Address Table	8K MAC	8K MAC	8K MAC
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm	442 mm x 220 mm x 43.6 mm	442 mm x 220 mm x 43.6 mm
Power consumption	<25W	< 35W	<22.6W
EEE	NA	NA	NA

Get More Information

Do you have any question about the S1700-52FR-2T2P-AC 98010461?

Specific Data Sheet:

Part Number	98010461
Model	S17300-52FR-2T2P-AC
Memory (RAM)	128 MB
Flash	16 MB
Mean time between failures (MTBF)	24.65 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (including packaging)	< 3 kg (6.62 lb)
Stack ports	Not supported
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	35 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-20°C to +70°C (-4°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	10% to 90%, noncondensing
Operating altitude	0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
