Huawei OptiXstar P613E GPON ONU 4GE+4GE PoE

USD

5 5/5.0 Reviews Q/A 4 Sold/Mon
Detail:	Huawei OptiXstar P613E GPON terminal, 4GE+4GE(POE/POE+)
Model:	OptiXstar P613E
Condition:	Factory Sealed New
Related:	Huawei OptiXstar P602E GPON ONU 4GE Huawei OptiXstar P603E GPON ONU 8GE Huawei OptiXstar P612E GPON ONU 4 x GE PoE Huawei OptiXstar P622E Dual GPON ONU 4 GE
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 1.03	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei OptiXstar P613E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 8 GE ports. These ports provide high-quality voice, data, and HD video services.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar P613E
Dimensions (H x W x D)	35 mm x 220 mm x 150 mm (without floor mat)
Weight	Approximately 1030 g
Operating Temperature	-5°C to 45°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50/60 Hz
System Power Supply	56 V DC, 1.42 A
NNI	GPON
UNI	8 x GE, the PoE1-PoE4 ports support PoE/PoE+
Static Power Consumption	7 W
Surge Protection Specifications	GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV.

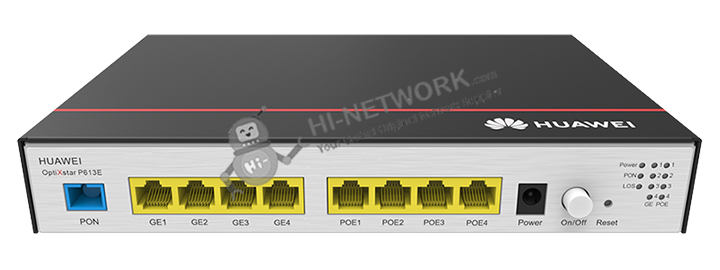

Figure 1 shows the appearance of OptiXstar P613E.

front-optixstar-p613e-datasheet

Product Highlights

● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.

● The PoE/PoE+ function supports flexible power supply

● Features high reliability, type B dual-homing service protection

Product Details

Port Parameters

PON

● Port type: SC/UPC

● Complies with ITU-T G.984.2, Class B+

● Receiver sensitivity: -27 dBm;

● Overload optical power: -8 dBm;

● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Function List

Automatic Service Provisioning	● Authentication exemption ● XML/OMCI/TR069
Smart O&M	● XML/Web UI ● Rogue ONT detection and self-regulation ● Ring network detection/PPPoE/DHCP simulation testing
Layer 3 Features	● Default/Static/Policy/Service routes ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6
Layer 2 Management	● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED
Multicast	● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP proxy ● MLDv1/MLDv2 snooping
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Security	● 802.1x ● IPv6/IPv4 firewalls ● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Static MAC address binding ● Device access control ● Web session number restriction

Compare to Similar Items

Table 2 shows the comparison.

Model	OptixStar P602E	OptixStar P603E	OptixStar P612E	OptixStar P613E	OptixStar P622E
NNI	GPON	GPON	GPON	GPON	Dual GPON
UNI	4*GE	8*GE	4*GE (PoE/PoE+)	8*GE, the POE1-POE4 ports support PoE/PoE+	4*GE

Get More Information

Do you have any question about the OptiXstar P613E?

Specific Data Sheet:

OptiXstar P613E Specification
Dimensions (H x W x D)	35 mm x 220 mm x 150 mm (without floor mat)
Weight	Approximately 1030 g
Operating Temperature	-5°C to 45°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50/60 Hz
System Power Supply	56 V DC, 1.42 A
NNI	GPON
UNI	8 x GE, the PoE1-PoE4 ports support PoE/PoE+
Static Power Consumption	7 W
Maximum Power Consumption	9.5 W (POE port without PD)/78 W (POE port with PD at maximum power consumption)
Maximum PoE Output Power	Gross power 60 W (up to 30 W for one GE port)
Surge Protection Specifications	GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV.
PON	● Port type: SC/UPC ● Complies with ITU-T G.984.2, Class B+ ● Receiver sensitivity: -27 dBm; ● Overload optical power: -8 dBm; ● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
GE	● PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at ● Port type: RJ-45 ● Auto ports speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering

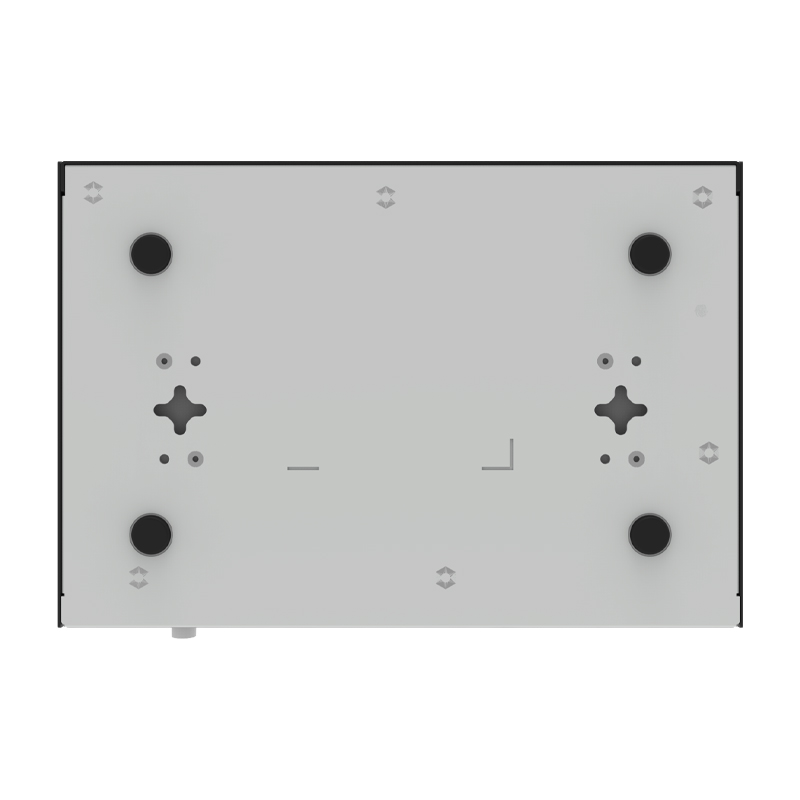

Installation Mode	Supports indoor desktop installation, wall mounting, and network box installation.
