Overview


The Huawei OptiXstar P603E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 8 GE ports. These ports provide high-quality voice, data, and HD video services.


Quick Specification


Table 1 shows the Quick Specification.

Model

OptiXstar P603E

Dimensions (W x D x H)

220 x 150 x 35 mm (without base)

Weight

Approximately 1030 g

Operating Temperature

–40–55°C

Operating Humidity

5–95% RH (non-condensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

NNI

1 x GPON

UNI

8 x GE

Maximum Power Consumption

5.64 W

Surge Protection Specifications

GE: common mode 4 kV; differential mode 0.5 kV.

AC power: common mode 6 kV; differential mode 6 kV.

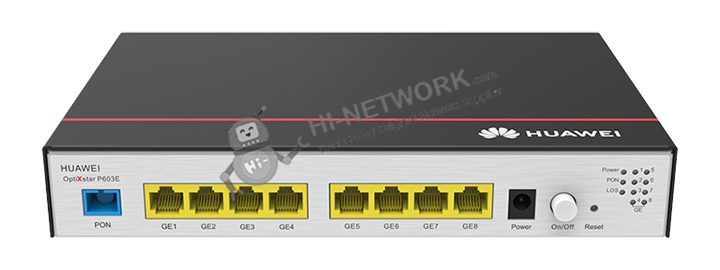

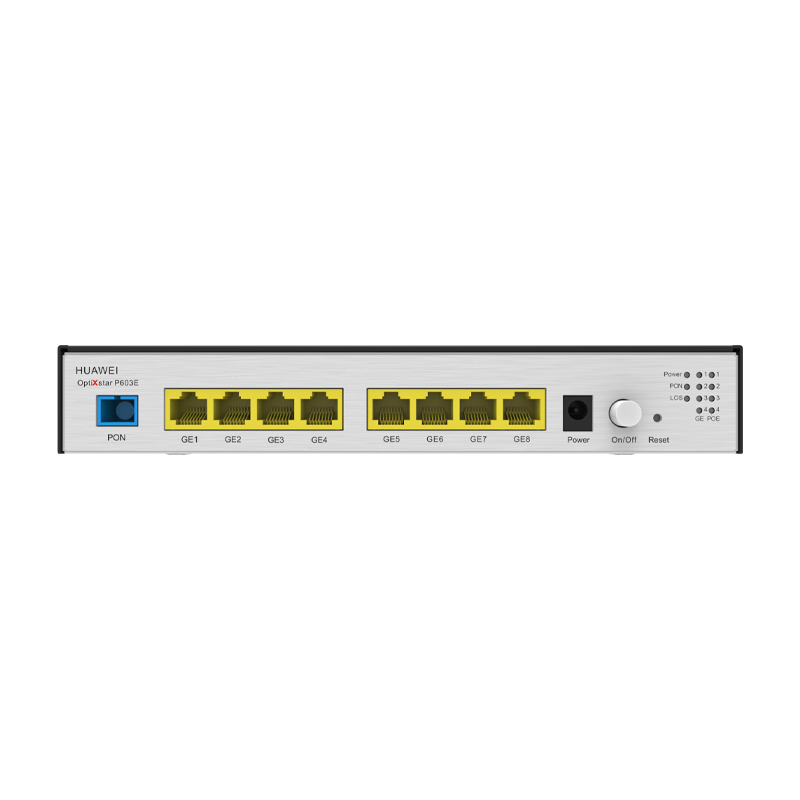

Figure 1 shows the appearance of OptiXstar P603E.

front-optixstar-p603e-datasheet



Product Highlights

● Chip-level secure boot ensures system software integrity and security.

● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.

● Supports – 40° C to +55° C wide temperature range with strong environment adaptability.

● Supports secure boot.

● Features high reliability, type B dual-homing service protection.


Product Details


Port Parameters

PON

● Port type: SC/UPC

● Complying with ITU-T G.984.2, Class B+

● Receiver sensitivity: -27dBm;

● Overload optical power: -8dBm;

● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering


Function List

Automatic Service Provisioning

● Authentication exemption

● XML/OMCI/TR069

Smart O&M

● XML/Web UI

● Rogue ONT detection and self-regulation

● Ring network detection/PPPoE/DHCP simulation testing

Layer 3 Features

● Default/Static/Policy/Service routes

● VLAN binding

● ALG/UPnP/ARP

● DDNS/DMZ/DNS/NAPT

● PPPoE/Static IP/DHCP

● Port mapping/Port trigger

● IPv6

Layer 2 Management

● DHCP Option82

● PITP

● BPDU transparent transmission

● LLDP/LLDP-MED

Multicast

● IGMP v2/v3 snooping

● Dynamic controllable multicast

● IGMP proxy

● MLDv1/MLDv2 snooping

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

Security

● 802.1x

● IPv6/IPv4 firewalls

● Filtering based on MAC/IP/URL

● DoS/ARP anti-attacks

● Static MAC address binding

● Device access control

● Web session number restriction


Compare to Similar Items


Table 2 shows the comparison.

Model

OptixStar P602E

OptixStar P603E

OptixStar P612E

OptixStar P613E

OptixStar P622E

NNI

GPON

GPON

GPON

GPON

Dual GPON

UNI

4*GE

8*GE

4*GE (PoE/PoE+)

8*GE, the POE1-POE4 ports support PoE/PoE+

4*GE


Get More Information

Do you have any question about the OptiXstar P603E?

Contact us now via [email protected].

Specific Data Sheet:


OptiXstar P603E Specification

Dimensions (W x D x H)

220 x 150 x 35 mm (without base)

Weight

Approximately 1030 g

Operating Temperature

–40–55°C

Operating Humidity

5–95% RH (noncondensing)

Power Adapter Input

100–240 V AC, 50/60 Hz

NNI

1 x GPON

UNI

8 x GE

Maximum Power Consumption

5.64 W

Surge Protection Specifications

GE: common mode 4 kV; differential mode 0.5 kV.

AC power: common mode 6 kV; differential mode 6 kV.

PON

● Port type: SC/UPC

● Complying with ITU-T G.984.2, Class B+

● Receiver sensitivity: -27dBm;

● Overload optical power: -8dBm;

● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

GE

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Installation Mode

Support indoor desktop, wall mounting, or network box installation.
