Huawei OptiXstar P602E GPON ONU 4GE

USD

5 5/5.0 Reviews Q/A 2 Sold/Mon
Detail:	Huawei OptiXstar P602E GPON terminal, 4GE
Model:	OptiXstar P602E
Condition:	Factory Sealed New
Related:	Huawei OptiXstar P603E GPON ONU 8GE Huawei OptiXstar P612E GPON ONU 4 x GE PoE Huawei OptiXstar P613E GPON ONU 4GE+4GE PoE Huawei OptiXstar P622E Dual GPON ONU 4 GE
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.48	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei OptiXstar P602E is an ONU designed for scenarios such as enterprise campus and video backhaul. It provides 4 GE ports to provide high-quality voice, data, and HD video services.

Quick Specification

Table 1 shows the Quick Specification.

Model	OptiXstar P602E
Dimensions (W x D x H)	160mm x 110mm x 30mm (Without floor mat)
Weight	About 480g
Operating Temperature	-40°C to +55°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60Hz
System Power Supply	11V to 14V (typical 12 V), 1A
NNI	GPON
UNI	4*GE
Static Power Consumption	3.5 W
Maximum Power Consumption	5 W
Surge Protection Specifications	GE: common mode 6 kV; differential mode 1.5 kV. AC power: common mode 6 kV; differential mode 6 kV.

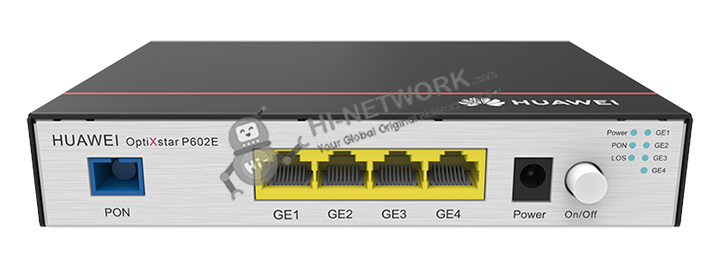

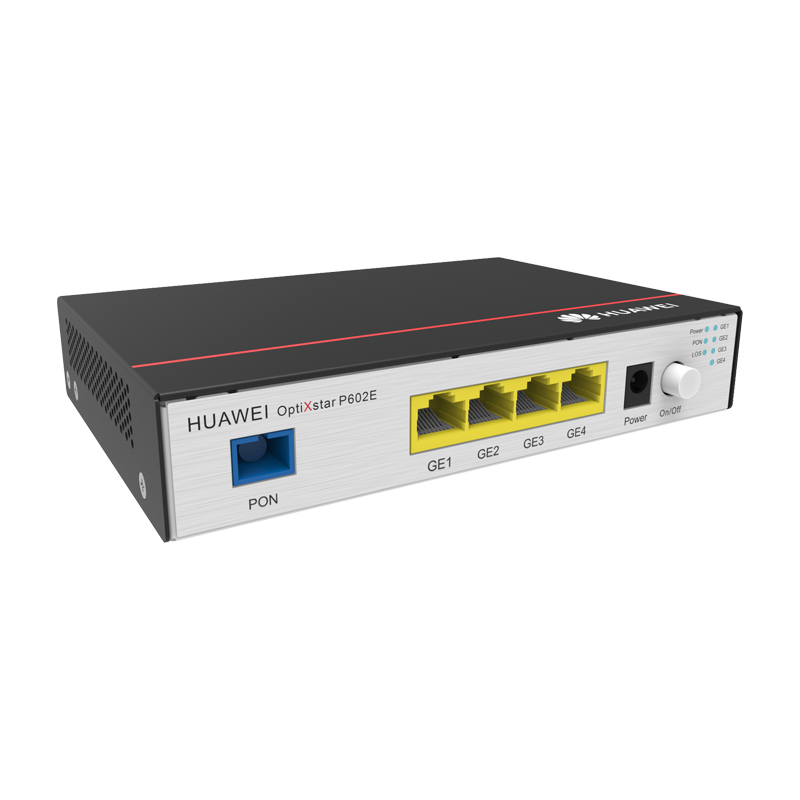

Figure 1 shows the appearance of OptiXstar P602E.

front-top-optixstar-p602e-datasheet

Product Highlights

● Compact design, plug and play, flexible and easy to install.

● 802.1x and IPv6/IPv4 firewalls ensure device access security and network security.

● Supports –40°C to +55°C wide temperature range with strong environment adaptability.

● Features high reliability, 6 kV surge protection in common mode, and type B dual-homing service protection.

Product Details

Port Parameters

PON

● Port type: SC/UPC

● Complying with ITU-T G.984.2, Class B+

● Receiver sensitivity: -27dBm;

● Overload optical power: -8dBm;

● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

● Type B single-homing

● Type B dual-homing (supported in Layer 2 forwarding)

● Port type: RJ-45

● Auto ports speed (10/100/1000 Mbit/s)

● Auto-MDI/MDIX

● Configuration of the number of MAC addresses learned

● VLAN transparent transmission/VLAN filtering

Function List

Automatic Service Provisioning	● Authentication exemption ● XML/OMCI/TR069
Smart O&M	● XML/Web UI ● Rogue ONT detection and self-regulation ● Ring network detection/PPPoE/DHCP simulation testing
Layer 3 Features	● Default/Static/Policy/Service routes ● VLAN binding ● ALG/UPnP/ARP ● DDNS/DMZ/DNS/NAPT ● PPPoE/Static IP/DHCP ● Port mapping/Port trigger ● IPv6
Layer 2 Management	● DHCP Option82 ● PITP ● BPDU transparent transmission ● LLDP/LLDP-MED
Multicast	● IGMP v2/v3 snooping ● Dynamic controllable multicast ● IGMP proxy ● MLDv1/MLDv2 snooping
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR
Security	● 802.1x ● IPv6/IPv4 firewalls ● Filtering based on MAC/IP/URL ● DoS/ARP anti-attacks ● Static MAC address binding ● Device access control ● Web session number restriction

Compare to Similar Items

Table 2 shows the comparison.

Model	OptixStar P602E	OptixStar P603E	OptixStar P612E	OptixStar P613E	OptixStar P622E
NNI	GPON	GPON	GPON	GPON	Dual GPON
UNI	4*GE	8*GE	4*GE (PoE/PoE+)	8*GE, the POE1-POE4 ports support PoE/PoE+	4*GE

Get More Information

Do you have any question about the OptiXstar P602E?

Specific Data Sheet:

OptiXstar P602E Specification
Dimensions (W x D x H)	160mm x 110mm x 30mm (Without floor mat)
Weight	About 480g
Operating Temperature	-40°C to +55°C
Operating Humidity	5%RH to 95%RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60Hz
System Power Supply	11V to 14V (typical 12 V), 1A
NNI	GPON
UNI	4*GE
Static Power Consumption	3.5 W
Maximum Power Consumption	5 W
Surge Protection Specifications	GE: common mode 6 kV; differential mode 1.5 kV. AC power: common mode 6 kV; differential mode 6 kV.
PON	● Port type: SC/UPC ● Complying with ITU-T G.984.2, Class B+ ● Receiver sensitivity: -27dBm; ● Overload optical power: -8dBm; ● Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s ● Type B single-homing ● Type B dual-homing (supported in Layer 2 forwarding)
GE	● Port type: RJ-45 ● Auto ports speed (10/100/1000 Mbit/s) ● Auto-MDI/MDIX ● Configuration of the number of MAC addresses learned ● VLAN transparent transmission/VLAN filtering
Installation Mode	Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.
