Huawei Interface card LSS7L12QX6E0 (03034DHE, 03034DHE-001, 03034DHE-002) for S7703/S7706/S7712

USD

4.5 4.5/5.0 Reviews Q/A 0 sold/Mon
Detail:	12-port 40GE QSFP+ interface card (X6E, QSFP+)
Model:	LSS7L12QX6E0 (03034DHE, 03034DHE-001, 03034DHE-002)
Condition:	Factory Sealed New
Related:	Huawei Switch S7703 (02113304) Huawei Switch S7703 PoE (02115782) Huawei Switch S7706 (02113305) Huawei Switch S7706 PoE (02115713) Huawei Switch S7712 (02113306)
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 7.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Huawei Interface card LSS7L12QX6E0 (03034DHE, 03034DHE-001, 03034DHE-002) for S7703/S7706/S7712

The LSS7L12QX6E0 provides twelve 40GE optical ports for data transmission and switching.

Quick Specification

Table 1 shows the quick specification.

Description	LSS7L12QX6E0
Part Number	03034DHE, 03034DHE-001, 03034DHE-002
Model	12-port 40GE QSFP+ interface card (X6E, QSFP+)
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.55 kg (7.83 lb)
Weight with packaging [kg(lb)]	5.55 kg (12.24 lb)
Typical power consumption [W]	174
Memory	1 GB
Basic function	Provides twelve 40GE optical ports for data transmission and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	Supported

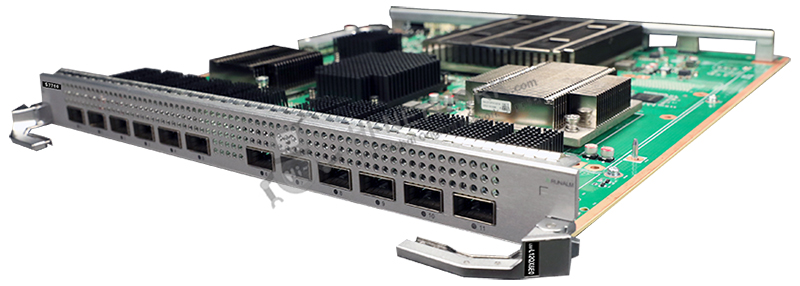

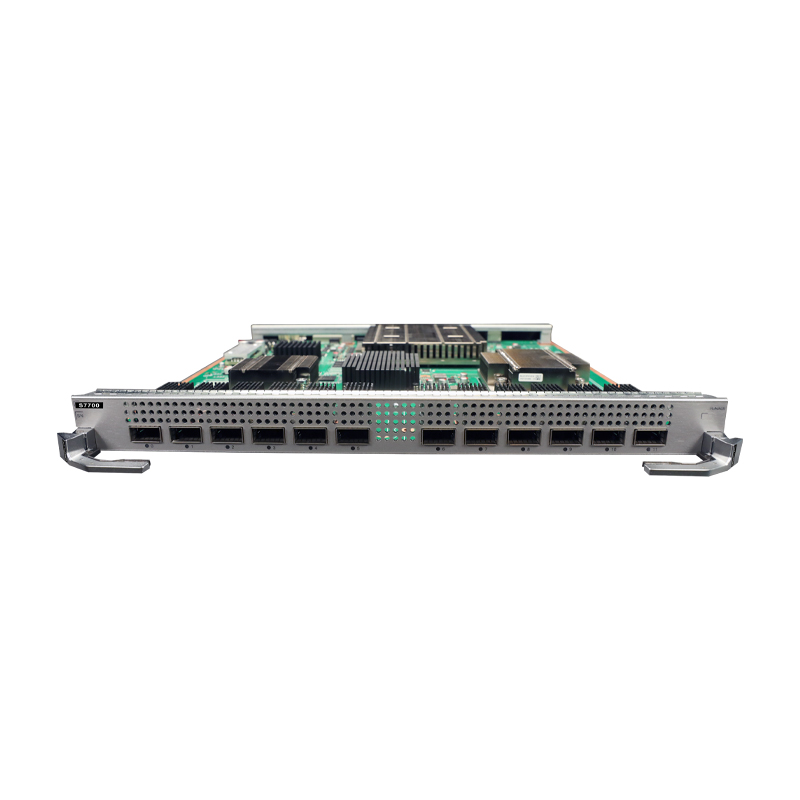

Figure 1 shows the appearance of LSS7L12QX6E0.

front-lss7l12qx6e0-datasheet

Product Details

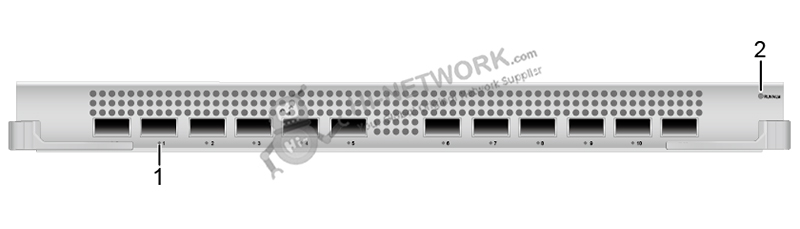

Figure 2 show the indicators on the LSS7L12QX6E0 panel.

indicators-lss7l12qx6e0-datasheet

Note:

(1)	ACT/LINK indicator
(2)	RUN/ALM: running status indicator

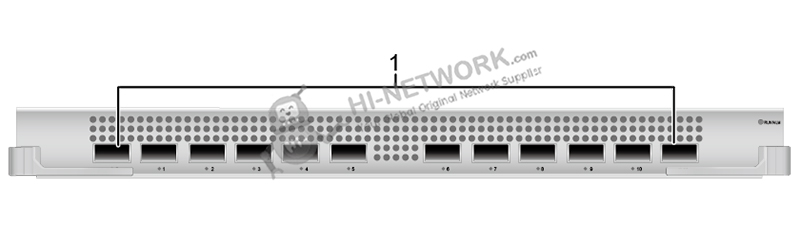

Figure 3 show the ports on the LSS7L12QX6E0 panel.

ports-lss7l12qx6e0-datasheet

Note:

(1)	Twelve 40GE optical ports

Get more information

Do you have any question about the LSS7L12QX6E0 (03034DHE, 03034DHE-001, 03034DHE-002)?

Specific Data Sheet:

LSS7L12QX6E0 Specification
Basic Information
Model	LSS7L12QX6E0
Part Number	03034DHE, 03034DHE-001, 03034DHE-002
Description	12-port 40GE QSFP+ interface card (X6E, QSFP+)
Level-1 category	Interface card
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)]	35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]	3.55 kg (7.83 lb)
Weight with packaging [kg(lb)]	5.55 kg (12.24 lb)
Typical power consumption [W]	174
Typical heat dissipation [BTU/hour]	593.71
Maximum power consumption [W]	193
Maximum heat dissipation [BTU/hour]	658.54
Memory	1 GB
