Huawei EchoLife EG8040H5 1 GPON 4 GE

58
5
5/5.0
Q/A
8 Sold/Mon
Detail: Huawei EchoLife EG8040H5 ONT, intelligent bridging-type ONT, 4GE
Model: EchoLife EG8040H5
Condition: Factory Sealed New
Related: Huawei EchoLife EG8040F ONT 4 FE Huawei EchoLife EG8040F5 GPON ONT 1 GE 3 FE Huawei EchoLife EG8040H ONT 4 GE
Warranty:
3-Years Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.22
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Overview


The EchoLife EG8040H5 is a bridging-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and futureoriented service support capabilitytation.


Quick Specification


Table 1 shows the Quick Specification.

Model

EchoLifeEG8040H5

Dimensions (W x D x H)

30 mm x 168 mm x 115 mm

Weight

About 220 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

2.8 W

Maximum Power Consumption

4.7 W

NNI

GPON

UNI

4GE

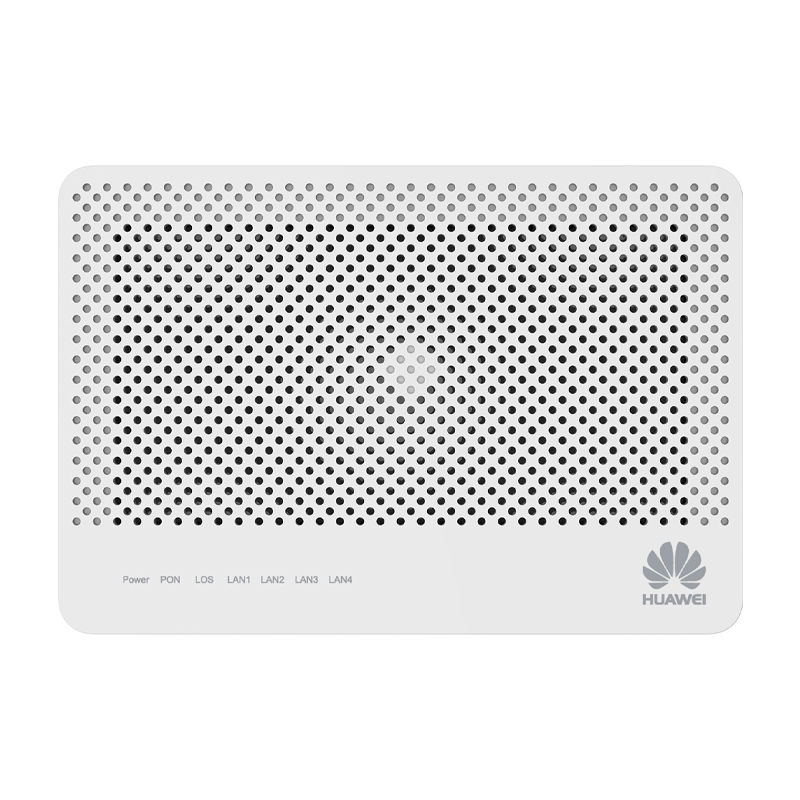

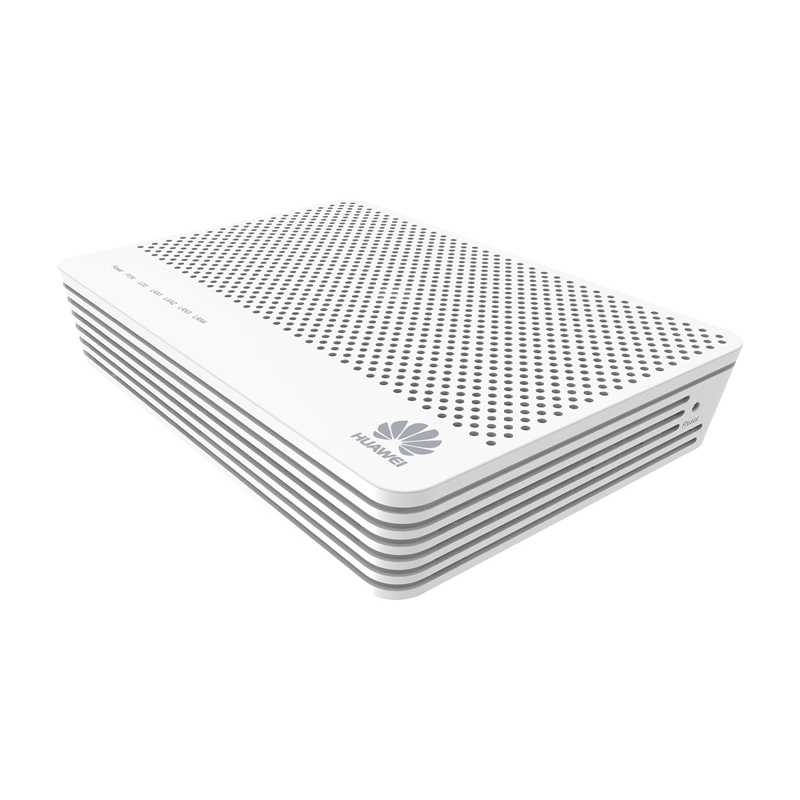

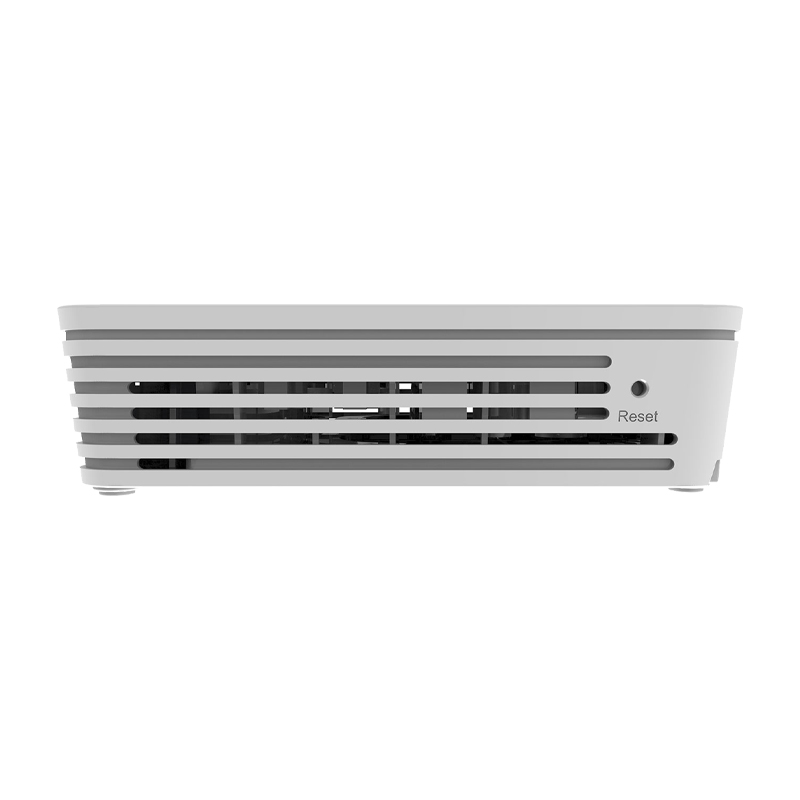

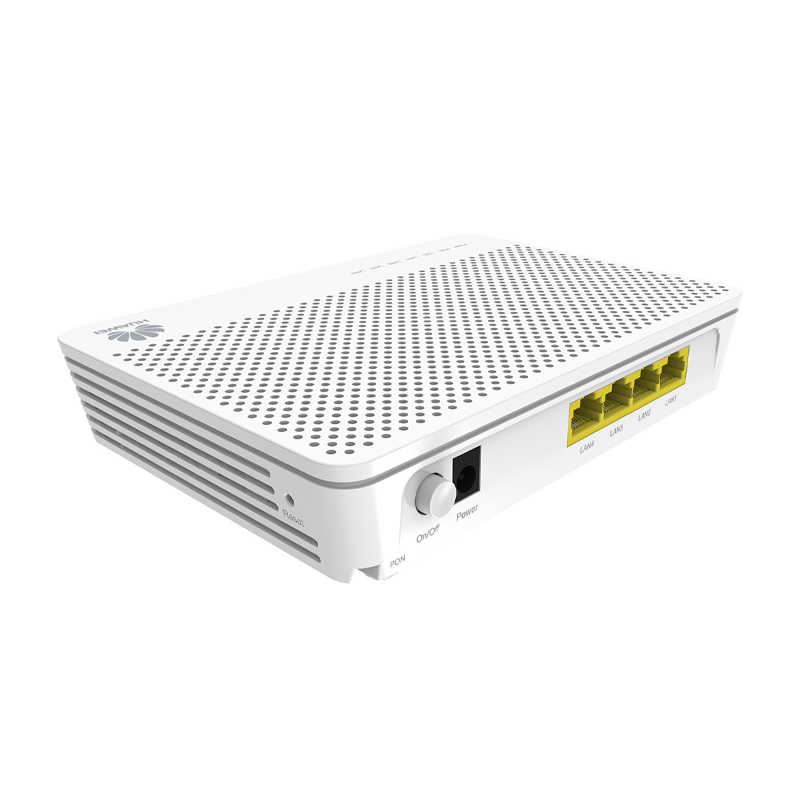

Figure 1 shows the appearance of EchoLife EG8040H5.

overview-echollife-eg8040h5-datasheet


Product Details


Port Parameters

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF) ofG.984.5

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing &dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tagremoval

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MACaddresses

● MAC address learning

● Local switching/isolation based onEthernet ports

● Transparent transmission of IPv6packets at Layer 2


Function List

SmartO&M

● Variable-length OMCI messages

● Active/Passive rogue ONT detection and isolation

● PPPoE/DHCP simulation testing

QoS

● Ethernet port rate limitation

● 802.1p priority

● SP/WRR/SP+WRR

● Broadcast packet rate limitation

● Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Power Saving

● Indicator power saving

● Power consumption reduction of idle components in power-saving state

● COCv4

SmartService

● L2 forwarding: 1G uplink, 2G downlink

Security

● MAC address filtering

CommonO&M

● OMCI/Web UI

● Dual-system software backup androllback

● 802.1ag Ethernet OAM

● Optical link measurement and diagnosis

● Loopback check

Multicast

● IGMP v2/v3 snooping

● MLD v1/v2 snooping

● Fast leave

● VLAN tag translation, transparent transmission, and removal for downstream multicast packets

● IGMP/MLD protocol packet rate limitation


Get More Information

Do you have any question about the EchoLife EG8040H5?

Contact us now via [email protected].

Specific Data Sheet:


EchoLife EG8040H5 Specification

Dimensions (W x D x H)

30 mm x 168 mm x 115 mm

Weight

About 220 g

Operating Temperature

0°C to +40°C

Operating Humidity

5%RH to 95%RH (non-condensing)

Power Adapter Input

100–240 V AC, 50–60 Hz

System Power Supply

11-14 V DC, 1 A

Static Power Consumption

2.8 W

Maximum Power Consumption

4.7 W

NNI

GPON

UNI

4GE

Optical connector

SC/APC

Indicators

POWER/PON/LOS/LAN

Installation Mode

On the desk, or on the wall

GPON Port

● Class B+

● Receiver sensitivity: -27dBm

● Overload optical power: -8 dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF) ofG.984.5

● Flexible mapping between GEM Port andTCONT

● GPON: consistent with the SN orpassword authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

● Type B (single-homing &dual-homing)

Ethernet Port

● Ethernet port-based VLAN tags and tagremoval

● 1:1 VLAN, N:1 VLAN, or VLANtransparent transmission

● QinQ VLAN

● Limit on the number of learned MACaddresses

● MAC address learning

● Local switching/isolation based onEthernet ports

● Transparent transmission of IPv6packets at Layer 2
