Huawei EchoLife EG8040F5 GPON ONT 1 GE 3 FE

USD

5 5/5.0 Reviews Q/A 1 Sold/Mon
Detail:	Huawei EchoLife EG8040F5, intelligent routing-type ONT, 1 x GPON, 1 x GE + 3 x FE
Model:	EchoLife EG8040F5
Condition:	Factory Sealed New
Related:	Huawei EchoLife EG8040F ONT 4 FE Huawei EchoLife EG8040H ONT 4 GE Huawei EchoLife EG8040H5 1 GPON 4 GE
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.14	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8040F5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

It provides 1 GE+3 FE(1 GE port and 3 FE ports). The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

● Smart service

● Smart interconnection

● Smart O&M

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8040F5
Dimensions (W x D x H)	32 mm x 145 mm x 97 mm (without pads)
Weight	About 140g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Network-side Ports	GPON
User-side Ports	1GE + 3FE
Power Adapter Input	100-240V AC, 50/60 Hz
System Power Supply	11-14V (typical value 12 V) DC, 1A
Static Power Consumption	3.7 W
Maximum Power Consumption	5W

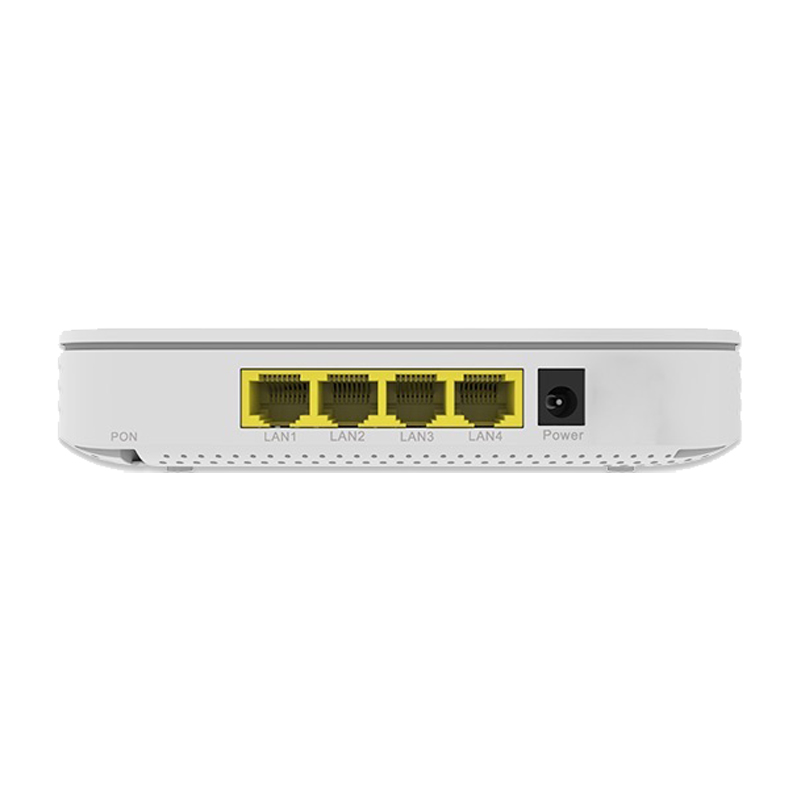

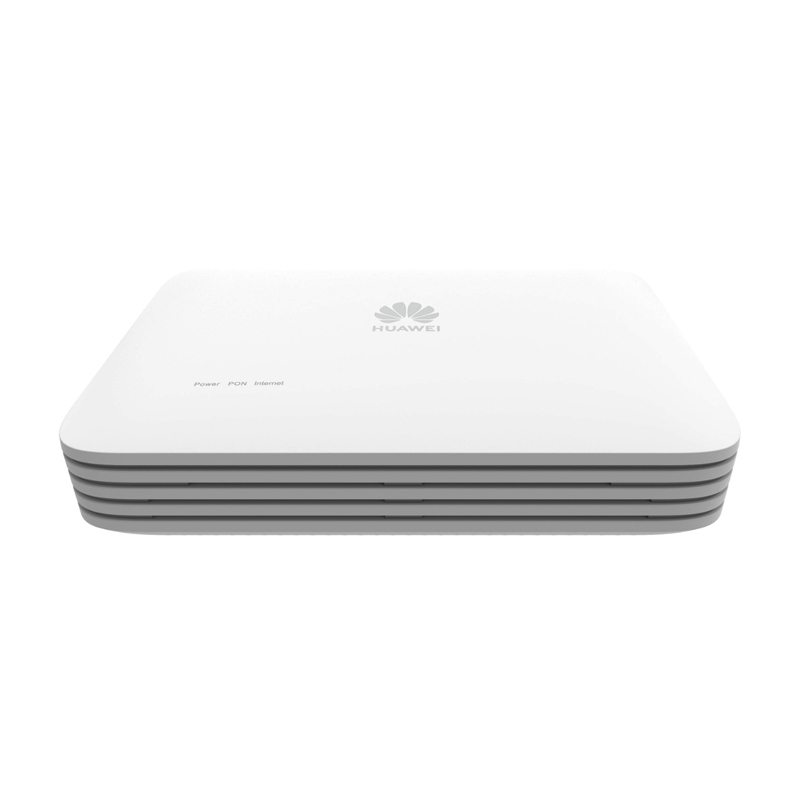

Figure 1 shows the appearance of EchoLife EG8040F5.

rear-top-eholife-eg8040f5-datasheet

Product Details

Interface Parameters

GPON Port	● Class B+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310nm, DS 1490nm ● WBF ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning
POTS Port	● Maximum REN: 4 ● G.711A/μ, G.729a/b, and G.722 encoding/decoding ● T.30/T.38/G.711 fax mode ● DTMF ● Emergency calls (with the SIP protocol)
USB Port	● USB2.0 ● FTP-based network storage
WLAN	● IEEE 802.11 b/g/n ● 2 x 2 MIMO ● Antenna gain: 2 dBi ● WMM ● Multiple SSIDs ● WPS

Product Function

Smart Interconnection	● Any port any service ● Parental control
Smart O&M	● eMDI ● Variable-length OMCI messages ● Active/Passive rogue ONT detection and isolation ● PPPoE/DHCP simulation testing
Layer 3 Features	● PPPoE/Static IP/DHCP ● NAT/NAPT ● Port forwarding ● ALG, UPnP ● DDNS/DNS server/DNS client ● IPv6/IPv4 dual stack, and DS-Lite ● Static/Default routes ● Multiple services on one WAN port
Multicast	● IGMP v2/v3 snooping ● IGMP v2 proxy ● IGMP v3 proxy ● MLD v1/v2 snooping
QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC/IP/URL address filtering ● SPI firewall ● Anti-DoS attack
Common O&M	● OMCI/Web UI/TR069 ● Dual-system software backup and rollback
Power Saving	● Indicator power saving

Get More Information

Do you have any question about the EchoLife EG8040F5?

Specific Data Sheet:

EchoLife EG8040F5 Specification
Dimensions (W x D x H)	32 mm x 145 mm x 97 mm (without pads)
Weight	About 140g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100-240V AC, 50/60 Hz
System Power Supply	11-14V (typical value 12 V) DC, 1A
Static Power Consumption	3.7 W
Maximum Power Consumption	5W
NNI	GPON
UNI	1GE + 3FE
Optical Connector	SC/APC
Indicators	Power/PON/Internet
GPON Port	● Class B+ ● Receiver sensitivity: -27 dBm ● Overload optical power: -8 dBm ● Wavelengths: US 1310 nm, DS 1490 nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA ● Type B (single-homing&dual-homing)
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s ● FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s
