Huawei EchoLife EG8040F ONT 4 FE

USD

5 5/5.0 Reviews Q/A 6 Sold/Mon
Detail:	Huawei EchoLife EG8040F ONT, intelligent bridging-type ONT, 4FE
Model:	EchoLife EG8040F
Condition:	Factory Sealed New
Related:	Huawei EchoLife EG8040F5 GPON ONT 1 GE 3 FE Huawei EchoLife EG8040H ONT 4 GE Huawei EchoLife EG8040H5 1 GPON 4 GE
Warranty:	3-Years Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.5	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Overview

The Huawei EchoLife EG8040F is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

It provides 1 GE port and 3 FE ports. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Quick Specification

Table 1 shows the Quick Specification.

Model	EchoLife EG8040F
Dimensions (W x D x H)	176mm x 138.5mm x 28mm
Weight	< 500g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100-240V AC, 50/60 Hz
System Power Supply	11-14 V DC, 0.5 A
Static Power Consumption	4 W
Maximum Power Consumption	5.5 W
NNI	GPON
UNI	4FE
Indicators	POWER/PON/LOS/LAN

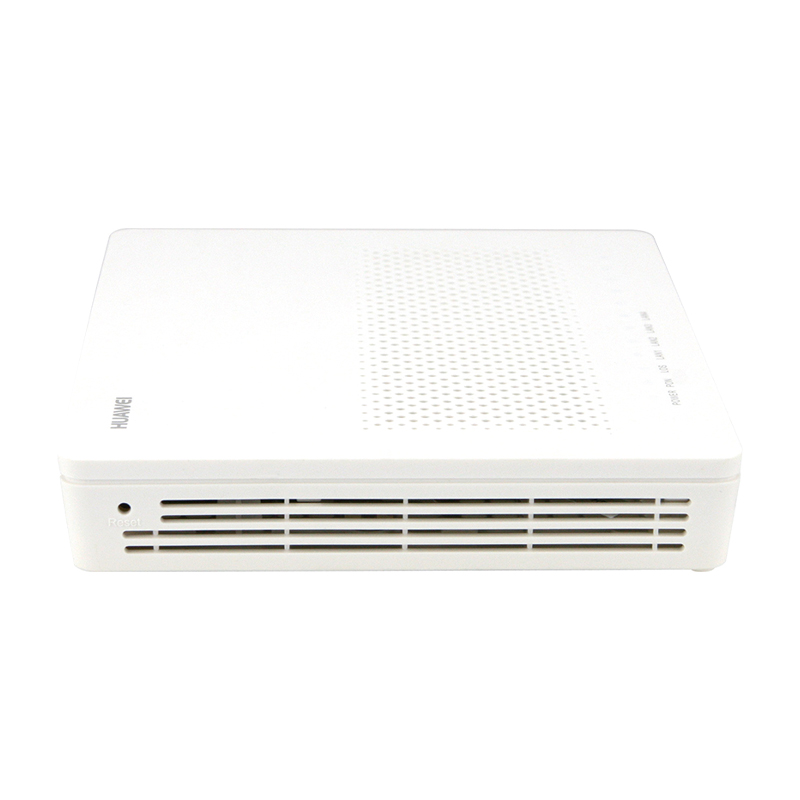

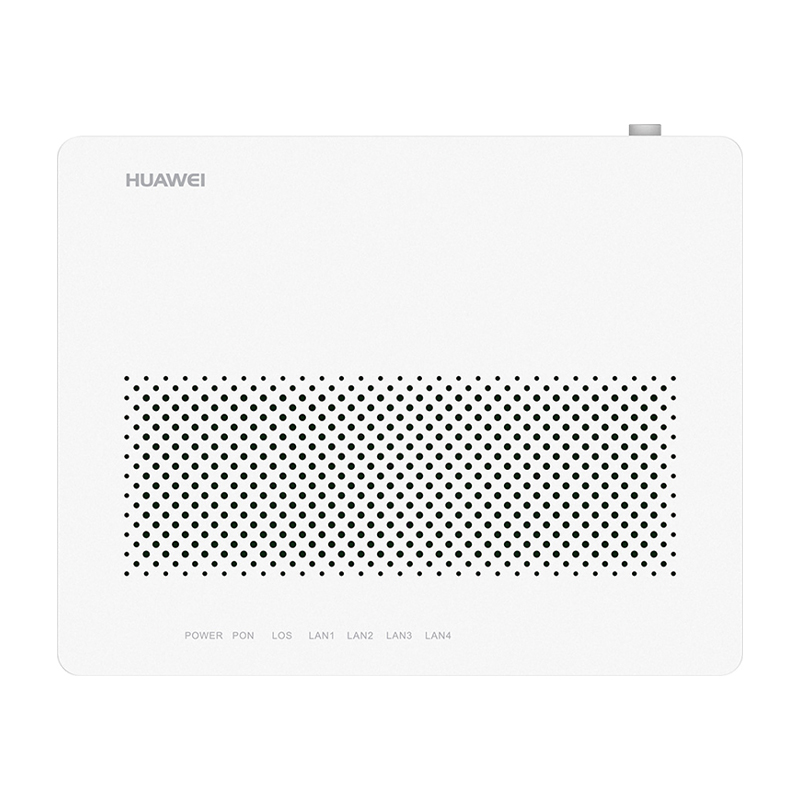

Figure 1 shows the appearance of EchoLife EG8040F.

overview-echolife-eg8040f-datasheet

Product Details

Interface Parameters

GPON Port

● Class B+/PX20+

● Receiver sensitivity: -27dBm

● Wavelengths: US 1310nm, DS 1490nm

● Wavelength blocking filter (WBF) of G.984.5

● Flexible mapping between GEM Port and TCONT

● GPON: consistent with the SN or password authentication defined in G.984.3

● Bi-directional FEC

● SR-DBA and NSR-DBA

Ethernet Port

● Ethernet port-based VLAN tags and tag removal

● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

● QinQ VLAN

● Limit on the number of learned MAC addresses

● MAC address learning

● Local switching/isolation based on Ethernet ports

● Transparent transmission of IPv6 packets at Layer 2

Product Function

QoS	● Ethernet port rate limitation ● 802.1p priority ● SP/WRR/SP+WRR ● Broadcast packet rate limitation ● Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Security	● MAC/IP/URL address filtering
Power Saving	● Indicator power saving ● Power consumption reduction of idle components in power-saving state
Smart O&M	● Variable-length OMCI messages ● Rogue ONT detection and isolation from the OLT ● PPPoE/DHCP simulation testing
Common O&M	● OMCI/Web UI ● Dual-system software backup and rollback ● 802.1ag Ethernet OAM ● Optical link measurement and diagnosis ● Loopback check
Multicast	● IGMP v2/v3 snooping ● MLD v1/v2 snooping ● Fast leave ● VLAN tag translation, transparent transmission, and removal for downstream multicast packets ● IGMP/MLD protocol packet rate limitation

Get More Information

Do you have any question about the EchoLife EG8040F?

Specific Data Sheet:

EchoLife EG8040F Specification
Dimensions (W x D x H)	176mm x 138.5mm x 28mm
Weight	< 500g
Operating Temperature	0°C to 40°C
Operating Humidity	5% to 95% RH (non-condensing)
Power Adapter Input	100-240V AC, 50/60 Hz
System Power Supply	11-14 V DC, 0.5 A
Static Power Consumption	4 W
Maximum Power Consumption	5.5 W
NNI	GPON
UNI	4FE
Indicators	POWER/PON/LOS/LAN
GPON Port	● Class B+/PX20+ ● Receiver sensitivity: -27dBm ● Wavelengths: US 1310nm, DS 1490nm ● Wavelength blocking filter (WBF) of G.984.5 ● Flexible mapping between GEM Port and TCONT ● GPON: consistent with the SN or password authentication defined in G.984.3 ● Bi-directional FEC ● SR-DBA and NSR-DBA
Ethernet Port	● Ethernet port-based VLAN tags and tag removal ● 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ● QinQ VLAN ● Limit on the number of learned MAC addresses ● MAC address learning ● Local switching/isolation based on Ethernet ports ● Transparent transmission of IPv6 packets at Layer 2
