Huawei CloudEngine Switch S5731-S48P4X (02353AJH/-001/-003)

1445
4.8
4.8/5.0
Q/A
19 sold/Mon
Detail: S5731-S48P4X (48*10/100/1000BASE-T ports,4*10GE SFP+ ports,PoE+,without power module)
Model: S5731-S48P4X (02353AJH/-001/-003)
Condition: Factory Sealed New
Related: Huawei CloudEngine Switch S5731-S48S4X-A (98011801/98011801-001) Huawei CloudEngine Switch S5731-S48T4X (98011847/02353AJB/02353AJB-003) Huawei CloudEngine Switch S5731-S48T4X-A (98011854/98011854-001)
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
16.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Huawei CloudEngine Switch S5731-S48P4X (02353AJH/-001/-003)


The Huawei CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.


Quick Specification:

Model

S5731-S48P4X

Part Number

02353AJH/-001/003

Memory (RAM)

2 GB

Flash memory

1 GB in total. To view the available   flash memory size, run the display version command.

PoE

Supported

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)

Weight (with packaging)

8.8 kg (19.40 lb)


Difference between Part Number:


Model

S5731-S48P4X

Part Number

02353AJH

02353AJH-001

02353AJH-003

First supported version

V200R019C00

V200R020C10

V200R021C10SPC600

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Heat dissipation with fan, intelligent fan speed adjustment

Air cooling for heat dissipation, intelligent fan speed   adjustment

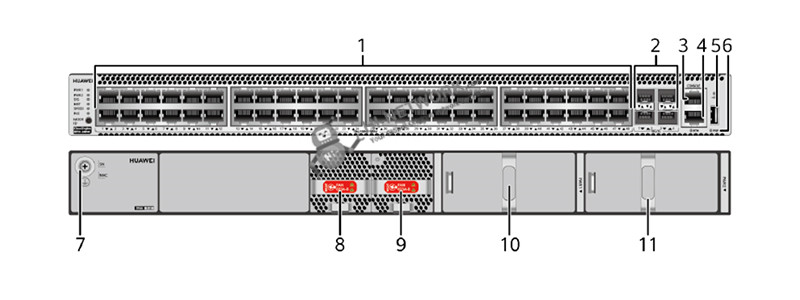

Appearance:

s5731-s48p4x-datasheet



Forty-eight PoE+ 10/100/1000BASE-T ports



Four 10GE SFP+ ports



One console port



One ETH management port



One USB port



One PNP button



Ground screw



Fan module slot 1



Fan module slot 2



Power module slot 1



Power module slot 2


The Accessories for S5731-S48P4X
Modules and Cables:

Product

Description

eSFP-GE-SX-MM850

Optical Transceiver,eSFP,GE,Multi-mode Module (850nm,0.55km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,40km,LC)

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module (1310nm,40km,LC)

S-SFP-GE-LH80-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module (1550nm,80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module (TX1490/RX1310,10km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,1.4km,LC)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.1km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module (100m,RJ45)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module (850nm,0.3km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,10km,LC)

SFP-10G-BXU1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module (TX1270nm/RX1330nm,10km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module (1310nm,40km,LC)

SFP-10G-ER-SM1330-BIDI

Optical Transceiver,SFP+,10G,BIDI Single-mode Module (TX 1330nm/RX 1270nm,40km,LC)

SFP-10G-BXD1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module (TX1330nm/RX1270nm,10km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module (1550nm,80km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module (1550nm,40km,LC)


Compare To Similar Items:

Model

S5731-S24P4X

S5731-S24T4X

S5731-S48P4X

S5731-S48T4X

Fixed port

24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports

442 mm x 420 mm x 43.6 mm

48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports

48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

1 U

442 mm x 420 mm x 43.6 mm

442 mm x 420 mm x 43.6 mm

Chassis   height

1 U

8.4 kg

1 U

1 U

Chassis weight (including packaging)

8.6 kg

• 150 W AC (pluggable)

• 600 W AC (pluggable)

• 1000 W DC (pluggable)

8.8 kg

8.55 kg

Power supply type

1000 W PoE AC (pluggable)

• AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz

• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz

• DC input (1000 W DC): -48 VDC to -60 V DC

1000 W PoE   AC (pluggable)

• 150 W AC (pluggable)

• 600 W AC (pluggable)

• 1000 W DC (pluggable)

Rated   voltage range

AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz


AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz

• AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz

• AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz

• DC input (1000 W DC): -48 VDC to -60 V DC

Maximum power consumption

• 121 W (without PD)

• 977 W (with PD, PD power consumption of 720 W)

114 W

• 132 W (without PD)

• 1750 W (with PD, PD power consumption of 1440 W)

124 W


Get More Information

Do you have any question about the S5731-S48P4X 02353AJH/02353AJH-001/02353AJH-003?

Contact us now via[email protected]


Specific Data Sheet:

Part Number

02353AJH/02353AJH-001/02353AJH-003

Model

S5731-S48P4X

Memory (RAM)

2 GB

Flash

1 GB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

54.96 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)

Weight (with packaging)

8.8 kg (19.40 lb)

Stack ports

10GE SFP+ ports on the front panel

RTC

Supported

RPS

Not supported

PoE

Supported

Rated voltage range

AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz

High-Voltage DC input: 240 V DC

DC input: -48 V DC to -60 V DC

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

High-Voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

Not providing the PoE function: 132 W

100% PoE loads: 1750 W (PoE: 1440 W)

Typical power consumption (30% of traffic load, tested according to ATIS standard)

108 W

Operating temperature

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 62.3 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification

Safety certification

Manufacturing certification
