Model

AirEngine 5761R-11E

Part Number

02354DKT

Description

AirEngine5761R-11E (11ax outdoor, 2+2/2 dual bands, external antenna, BLE)

Installation Type

Wall, Pole

Dimensions without packaging (H x W x D) [mm(in.)]

69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.)

Weight without packaging [kg(lb)]

2.04 kg (4.50 lb)

Weight with packaging [kg(lb)]

4.12 kg (9.08 lb)

Storage

NAND Flash 512 MB

Console port

Bluetooth console

Maximum power consumption [W]

19.6

Maximum heat dissipation [BTU/hour]

66.9

Power supply mode

PoE

Input voltage range [V]

PoE: 802.3at/af

Service port surge protection

6 kA in common mode

Maximum number of physical ports on the entire device

GE (RJ45) x 1/10M/100M/1000M auto-sensing

GE optical port (SFP)

Long-term operating temperature [°C(°F)]

–40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)]

–40°C to +85°C (–40°F to +185°F)

Long-term operating relative humidity [RH]

0% RH to 100% RH

Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3

Ingress protection level (dustproof/waterproof)

IP68

Ground

Grounding

Antenna port surge protection [kA]

5 kA surge protection capability without external surge protection devices

Wind resistance

67 m/s

USB

Not supported

IoT slot

Not supported

BLE

BLE5.2

Radio number

2

Operating frequency band

2.4GHz,5GHz

MIMO spatial streams

Radio 0 (2.4 GHz/5 GHz): 2x2

Radio 1 (5 GHz): 2x2

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface

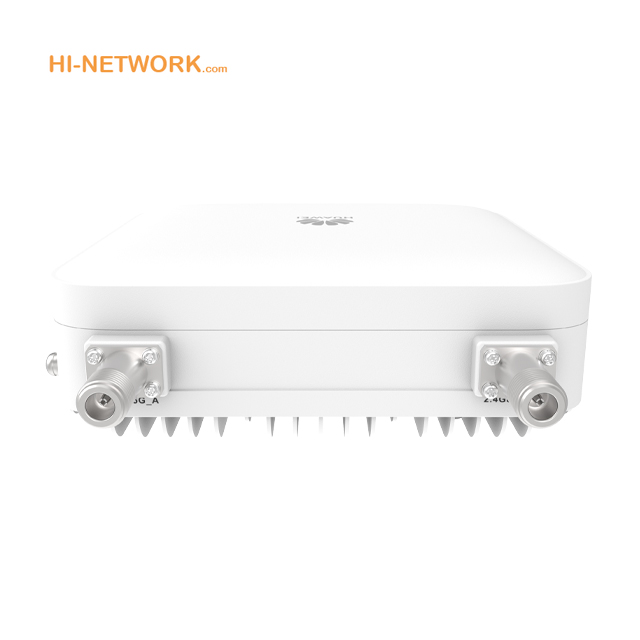

External antenna

Antenna gain

BLE: 5 dBi

Maximum transmit power

2.4G: 28 dBm (Max)

5G: 27 dBm (Max)

Note: This is the total MIMO radio power, which is the same as:

2.4G: 25 dBm/chain (Max)

5G: 24 dBm/chain (Max)

BLE: < 10 dBm

MTBF [year]

108

MTTR [hour]

0.5

Frequency stability [ppm]

+/-20

802.3bt power supply description

No function is limited.

802.3at power supply description

No function is limited.

802.3af power supply description

Wi-Fi:

- 2.4 GHz + 5 GHz dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined transmit power is adjusted to 23 dBm (2.4 GHz radio) and 23 dBm (5 GHz radio).

- Dual-5 GHz radio mode: 5 GHz (2x2) + 5 GHz (2x2). The maximum combined transmit power is adjusted to 23 dBm (both 5 GHz radios) .

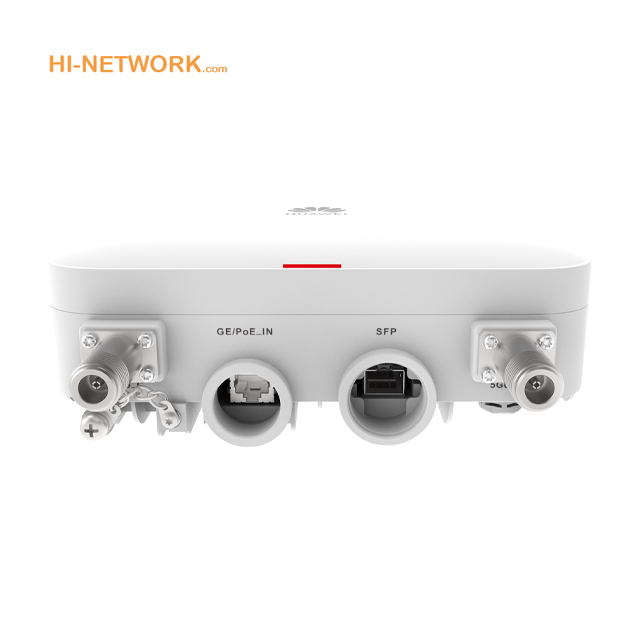

Wired network port: The GE/PoE_IN port and the SFP optical port cannot work simultaneously. Only one of them works at a time, and the optical port takes precedence.
