Cisco2951/K9 Series 3GE 4EHWIC Router


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


The Cisco 2951 router, supporting voice module, is designed for small offices.


Quick Specification


Figure 1 shows the appearance of the CISCO2951/K9.

Product Code

CISCO2951/k9

Rack Units

2U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity

Expansion Slot(s)

2 service module slot

1 Internal Service Module slot

3 onboard digital signal processor slots

4 Enhanced high-speed WAN interface card (EHWIC) slot

RAM

512 MB (installed) / 2 GB (max) - DDR2 SDDRAM Memory

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47 cm x 43.8 cm x 8.9 cm

Package Weight

17.82 Kg

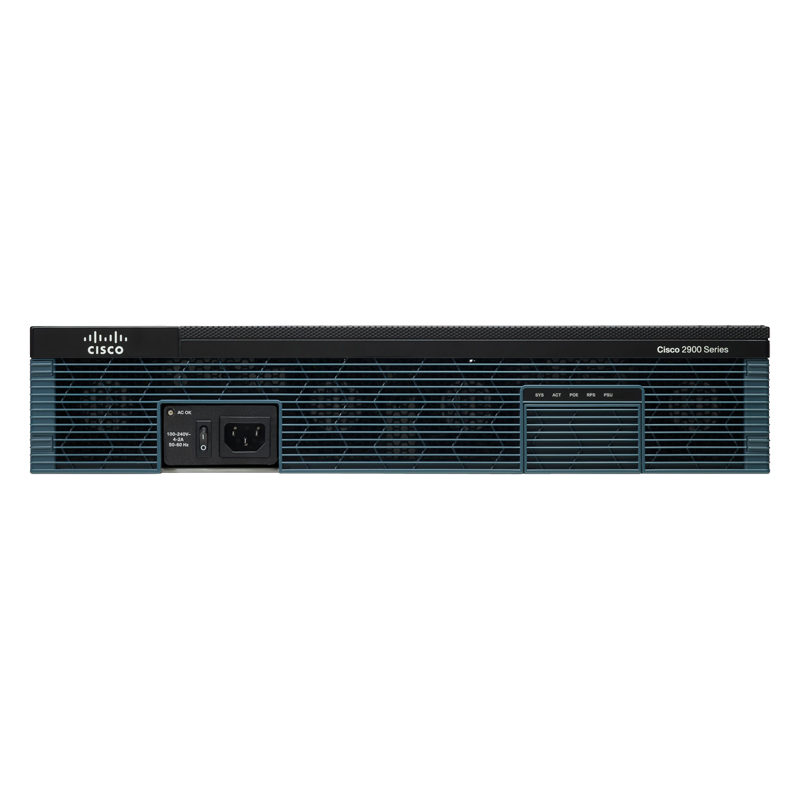

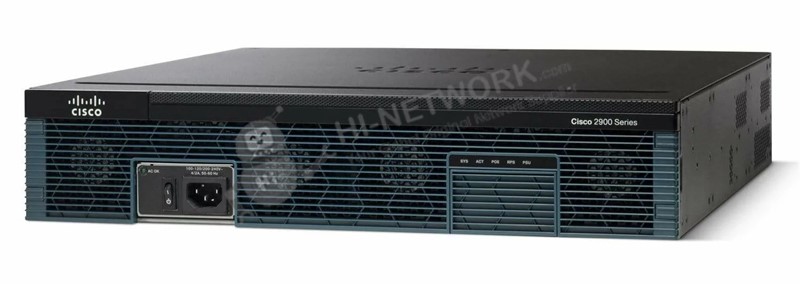

Figure 1 shows the appearance of the CISCO2951/K9.


front-cisco2951-k9-datasheet


Product Details

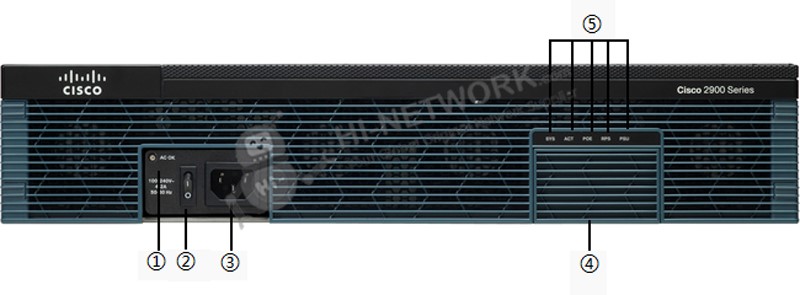

Figure 2 shows the front panel of CISCO2951/K9.

front-panel-cisco2951-k9-datasheet

Note:

(1)

AC OK

(4)

Optional RPS adapter (blank panel shown)

(2)

On/Off switch

(5)

LEDs area

(3)

AC power connector


Table 2 shows the LEDs area description.

LED

Color

Description

SYS

Solid green

Solid green indicates normal operation.

Blinking green

System is booting or is in ROM monitor mode.

Amber

System error.

Off

Power is off or system board is faulty.

ACT

Green

Solid or blinking indicates packet activity between the forwarding and routing engine and any I/O port.

Off

No packet transfers are occurring.

PoE

Green

PoE is available.

Amber

Power supply is not supplying PoE power.

RPS

Green

System is running on external RPS power supply.

PS

Green

System is running.

Amber

System is not running.


Figure 3 shows some LEDs on the back panel of the Cisco 2951 router.

led-cisco2951-k9-datasheet

Note:

(1)

Compact flash 0 and 1 (0, right)

(6)

SFP S

(2)

ISM

(7)

SFP EN

(3)

PVDM3 0,1 and 2 (0 right)

(8)

S (Speed)

(4)

EN (Enable USB console)

(9)

L (Link)

(5)

EN (Enable RJ-45 console)


Table 3 shows the description of these LEDs on the back panel.

LED

Color

Description

Location

CompactFlash 1

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

CompactFlash 0

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

S (Speed)

1 blink + pause

GE port operating at 10Mb/s.

Back Panel

2 blink + pause

GE port operating at 100Mb/s.

3 blink + pause

GE port operating at 1000 Mb/s.

L (Link)

Green

GE link is established.

Back Panel

Off

No GE link is established.

EN (RJ-45 console port)

Green

The RJ-45 console port is active.

Back Panel

EN (USB serial console port)

Green

The USB console port is active.

Back Panel

ISM

Green

Initialized.

Back Panel

Amber

Initialized with error.

Off

Not installed.

SFP S

Blinking green

Blinking frequency indicates port speed.

Back Panel

Off

Not present.

SFP EN

Green

Present and enabled.

Back Panel

Amber

Present with failure.

PVDM 0, 1 and 2

Green

PVDM is initialized.

Back Panel

Amber

PVDM is detected but not initialized.

Off

No PVDM installed.

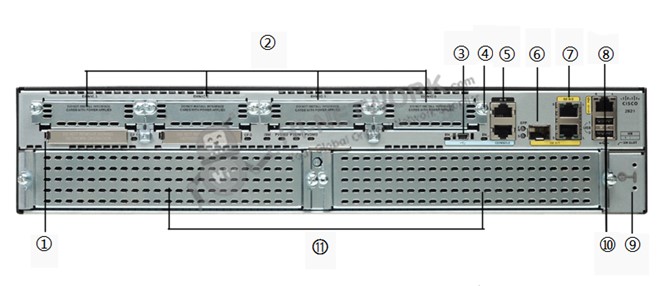

Figure 4 shows the expansion slots and ports on the back panel.


ports-cisco2951-k9-datasheet

Note:

(1)

Compact flash 0 and 1 (0, right)

(7)

10/100/1000 Ethernet port (GE 0/1 and GE 0/2)

(2)

EHWIC 0,1,2 and 3 (0, far right)

(8)

10/100/1000 Ethernet port GE 0/0

(3)

USB serial port

(9)

Ground

(4)

RJ-45 serial console port

(10)

USB 0 and 1 (1, top)

(5)

AUX port

(11)

Service module slots

(6)

AUX port


Modularity Features


Table 4 shows some recommended models for this router.

Models

Description

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Licenses

Description

L-SL-29-SEC-K9=

Cisco 2900 License L-SL-29-SEC-K9 Security E-Delivery PAK for Cisco 2901-2951

L-SL-29-APP-K9=

Cisco Application Experience License ISR 2900 Series - includes licenses for: AppX, DATA and WAASX

L-SL-29-SECNPE-K9=

Cisco 2900 License L-SL-29-SECNPE-K9 SEC No Payload Encryption E PAK for Cisco 2901-2951

L-SL-29-UC-K9=

Cisco 2900 License L-SL-29-UC-K9= Unified Communication E-Delivery PAK for Cisco 2901-2951


Get More Information

Do you have any question about the CISCO2951/K9?

Contact us now via [email protected].

Specific Data Sheet:


CISCO2951/K9 Specification

General

Device Type

Router

Enclosure Type

Rack-mountable - modular - 2U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

IPSec, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast

Remote Management Protocol

SNMP, RMON, TR-069

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Status Indicators

Link activity, power

Expansion and Connectivity

Interfaces

3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial : 1 x auxiliary - RJ-45 ¦ USB : 2 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC)

Expansion Slot(s)

4 (total) / 4 (free) x EHWIC ¦ 3 (total) / 3 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash Card ¦ 1 (total) / 1 (free) x ISM ¦ 2 (total) / 2 (free) x service module (SM)

Power

Power Device

Power supply - internal

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Dimensions (W × D × H)

17.2 × 18.5 × 3.5 in (47 x 43.8 x 8.9 cm)

Package Weight

39.3 lbs (17.82 Kg)

Weight

29.1 lbs (13.2 Kg)

Rack Mounting Kit

N/A

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968

Software / System Requirements

OS Provided

Cisco IOS IP Base

Manufacturer Warranty

Service & Support

90 days warranty

Service & Support Details

Limited warranty - 90 days

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

5 - 85%
