Cisco2901/K9 Series 2GE 4EHWIC Integrated Services Router

538 $2625 (79.5% OFF)
4.8
4.8/5.0
Q/A
21 Sold/Mon
Detail: Cisco 2901 router w/2 GE,4 EHWIC,2 DSP,256MB CF,512MB DRAM,IP Base
Model: CISCO2901/K9
Condition: In Stock
Related: CISCO2901-V/K9 Voice UC Bundle Router CISCO2901-SEC/K9 Security License Bundle Router Cisco EHWIC-1GE-SFP-CU WAN Card Moudels for 1900 2900 3900 Router Cisco Used MEM-CF-256U512MB Memry card for 1900 2900 3900 Router
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
11.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Cisco2901/K9 Series 2GE 4EHWIC Integrated Services Router


(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


The Cisco 2901 router, supporting voice module, is designed for small offices.


Quick Specification


Table 1 shows the Quick Specs of the CISCO2901/k9.

Product Code

CISCO2901/k9

Rack Units

1U

Interfaces

2 integrated 10/100/1000 Ethernet ports

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

Expansion Slot(s)

1 onboard Internal Service Module for application services

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.9 cm x 43.8 cm x 4.5 cm

Package Weight

11.48 Kg

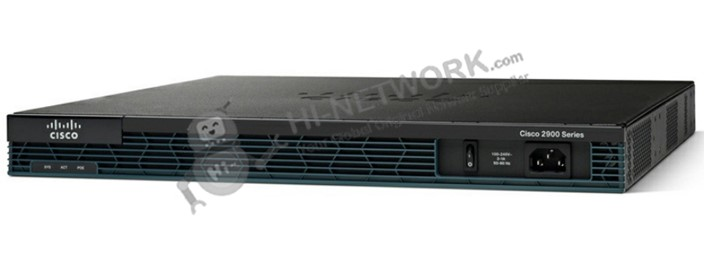

Figure 1 shows the appearance of the CISCO2901/k9.

front-cisco2901-k9-datasheet

Product Details

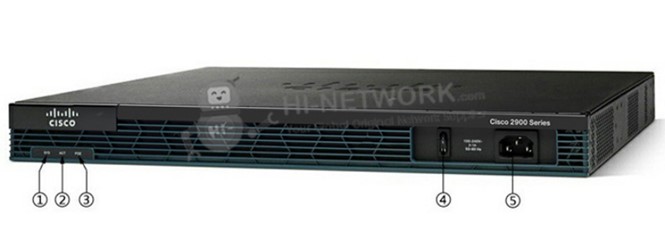

Figure 2 shows the front panel of the Cisco 2901 router with ports and LEDs.

front-panel-cisco2901-k9-datasheet

Note:

(1)

SYS

(4)

On/Off switch

(2)

ACT

(5)

AC power connector

(3)

POE


Table 2 shows the LEDs area description.

LED

Color

Description

SYS

Solid green

Solid green indicates normal operation.

Blinking green

System is booting or is in ROM monitor mode.

Amber

System error.

Off

Power is off or system board is faulty.

ACT

Green

Solid or blinking indicates packet activity between the forwarding and routing engine and any I/O port.

Off

No packet transfers are occurring.

PoE

Green

PoE is available.

Amber

Power supply is not supplying PoE power.

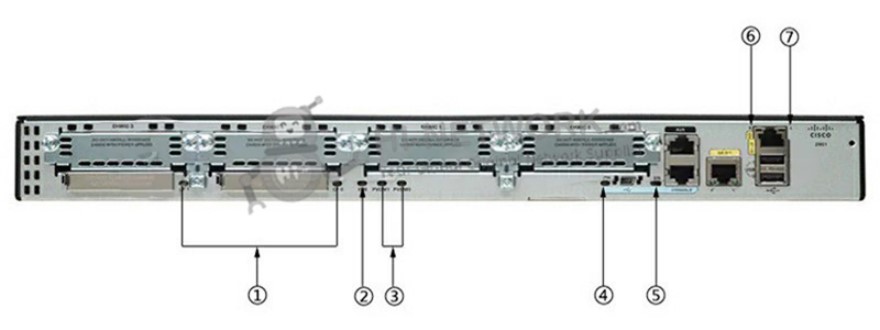

Figure 3 shows the back panel of the Cisco 2901 router with LEDs.

back-panel-cisco2901-k9-datasheet

Note:

(1)

Compact flash 0 and 1 (0, right)

(5)

EN (Enable RJ-45 console)

(2)

ISM

(6)

S (Speed)

(3)

PVDM3 0 and 1 (0, right)

(7)

L (Link)

(4)

EN (Enable USB console)


Table 3 shows some LEDs description.

LED

Color

Description

Location

CompactFlash 1

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

CompactFlash 0

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

S (Speed)

1 blink + pause

GE port operating at 10 Mb/s.

Back Panel

2 blink + pause

GE port operating at 100 Mb/s.

3 blink + pause

GE port operating at 1000 Mb/s.

L (Link)

Green

GE link is established.

Back Panel

Off

No GE link is established.

EN (RJ-45 console port)

Green

The RJ-45 console port is active.

Back Panel

EN (USB serial console port)

Green

The USB console port is active.

Back Panel

ISM

Green

Initialized.

Back Panel

Amber

Initialized with error.

Off

Not installed.

PVDM 0, and 1

Green

PVDM is initialized.

Back Panel

Amber

PVDM is detected but not initialized.

Off

No PVDM installed.

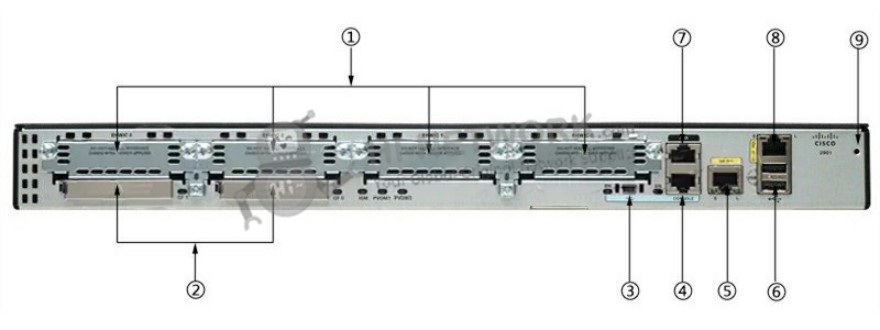

Figure 4 shows the back panel of the Cisco 2901 router with slots and ports.

slots-and-ports-cisco2901-k9-datasheet

Note:

(1)

EHWIC 0,1,2 and 3 (0, far right)

(6)

USB 0 and 1 (1, top)

(2)

Compact flash 0 and 1

(7)

AUX

(3)

USB serial port

(8)

10/100/1000 Ethernet port (GE 0/0)

(4)

 RJ-45 serial console port

(9)

Ground

(5)

10/100/1000 Ethernet port (GE 0/1)


Cards and Licenses


Table 4 shows some recommended models for this router.

Cards

Description

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Licenses

Description

L-SL-29-SEC-K9=

Cisco 2900 License L-SL-29-SEC-K9 Security E-Delivery PAK for Cisco 2901-2951

L-SL-29-APP-K9=

Cisco Application Experience License ISR 2900 Series - includes licenses for: AppX, DATA and WAASX

L-SL-29-SECNPE-K9=

Cisco 2900 License L-SL-29-SECNPE-K9 SEC No Payload Encryption E PAK for Cisco 2901-2951

L-SL-29-UC-K9=

Cisco 2900 License L-SL-29-UC-K9= Unified Communication E-Delivery PAK for Cisco 2901-2951


Get More Information

Do you have any question about the CISCO2901/K9?

Contact us now via [email protected].

Specific Data Sheet:

CISCO2901/K9 Specification

General

Device Type

Router

Enclosure Type

Rack-mountable - modular - 1U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

IPsec, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast

Remote Management Protocol

SNMP, RMON, TR-069

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support,

Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Status Indicators

Link activity, power

Expansion and Connectivity

Interfaces

2 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Management: 1 x console - RJ-45

Management: 1 x console - mini-USB Type B

Serial: 1 x auxiliary - RJ-45

USB: 2 x 4 pin USB Type A

Expansion Slot(s)

4 (total) / 4 (free) x EHWIC

2 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

1 (total) / 1 (free) x ISM

Power

Power Device

Power supply - internal

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Dimensions (W × D × H)

17.2 × 17.3 × 1.8 in (43.9 x 43.8 x 4.5 cm)

Package Weight

25.09 lbs (11.48 Kg)

Weight

13.4 lbs (6.08 Kg)

Rack Mounting Kit

Included

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968

Software / System Requirements

OS Provided

Cisco IOS IP Base

Manufacturer Warranty

Service & Support

90 days warranty

Service & Support Details

Limited warranty - 90 days

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 85%
