CISCO2901-SEC/K9 Security License Bundle Router

598 $3800 (84.3 OFF)
4.6
4.6/5.0
Q/A
11 Sold/Mon
Detail: Cisco 2901 Security Bundle w/SEC license PAK
Model: CISCO2901-SEC/K9
Condition: In Stock
Related: CISCO2901-V/K9 Voice UC Bundle Router C2901-VSEC/K9 Voice UC Security Bundle Router Used Cisco MEM-CF-256U4GB Memry card for 1900 2900 3900 Router Cisco HWIC-2T 2-Port Serial Router High-Speed WAN Interface card
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
11.5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

CISCO2901-SEC/K9 Security License Bundle Router

(Note: Cisco discount always changed, we will try most effort to follow it but can not ensure every web price was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)


The Cisco 2901 router, supporting voice module, is designed for small offices.


Quick Specification


Table 1 shows the Quick Specs of the CISCO2901-SEC/K9.

Product Code

CISCO2901-SEC/K9

Bundle

Security Bundle w/SEC license PAK

Rack Units

1U

Interfaces

2 integrated 10/100/1000 Ethernet ports

Expansion Slot(s)

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

1 onboard Internal Service Module for application services

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.9 cm x 43.8 cm x 4.5 cm

Package Weight

11.48 Kg

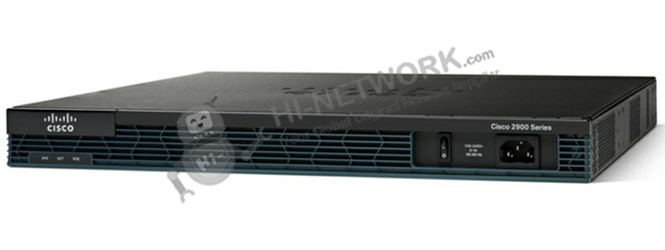

Figure 1 shows the appearance of the CISCO2901-SEC/K9

front-cisco2901-sec-k9-datasheet


Product Details

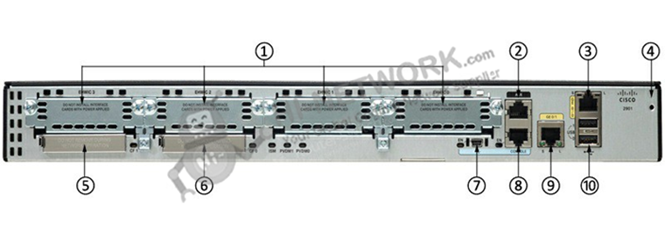

Figure 2 shows the ports on the back panel of CISCO2901-SEC/K9.


ports-cisco2901-sec-k9-datasheet

Note:

(1)

EHWIC slots 0, 1, 2, and 3 (0, Far right)

(6)

CompactFlash 0 and 1

(2)

Aux port

(7)

USB serial port

(3)

10/100/1000 Ethernet port (GE0/0)

(8)

RJ-45 serial console port

(4)

Ground

(9)

10/100/1000 Ethernet ports (GE0/1)

(5)

CompactFlash 0 and 1

(10)

USB0 and USB1 (1, Top)


Figure 3 shows the LEDs on the back panel of CISCO2901-SEC/K9.

led-cisco2901-sec-k9-datasheet


Note:

(1)

CompactFlash 0 and 1 (0, Right)

(5)

EN (Enable RJ-45 console)

(2)

ISM

(6)

S (Speed)

(3)

PVDM3 0 and 1 (0, Right)

(7)

 L (Link)

(4)

EN (Enable USB console)


The Modules and Cards


Table 2 shows some recommended modules and cards for this router.

Models

Description

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token


Get More Information

Do you have any question about the CISCO2901-SEC/K9?

Contact us now via [email protected].

Specific Data Sheet:

CISCO2901-SEC/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO2901-SEC/K9

Product Type

Router

Form Factor

External - modular - 1U

Dimensions (WxDxH)

43.9 cm x 43.8 cm x 4.5 cm

Weight

6.1 kg

DRAM Memory

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

IPsec

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag

Power

AC 120/230 V (50/60 Hz)
