| Detail: | Cisco Nexus 9336C-FX2, Nexus 9K Fixed with 36p 40G/100G QSFP28 |
| Model: | N9K-C9336C-FX2 |
| Condition: | New Factory Sealed; In Stock |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
30.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
Product Code | N9K-C9336C-FX2 |

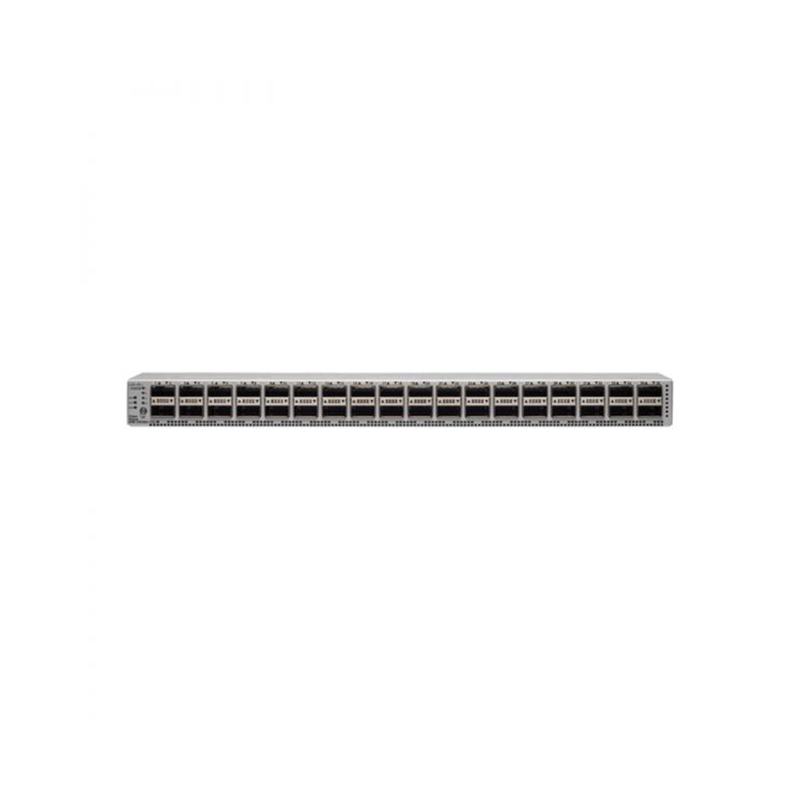

Ports | 36 x 40/100-Gbps QSFP28 ports |
Supported speeds | 1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1Gw/QSA except ports 1-6 and 33-36 |
CPU | 4cores |
System memory | 24 GB |
SSD drive | 128 GB |
System buffer | 40 MB |
- Architectural Flexibility
- Extensive Programmability
- High Scalability, flexibility, and security
- Intelligent Buffer Management
- RDME over Converged Ethernet – RoCE support
- LAN and SAN Convergence
- Hardware and software high availability
- Purpose-built Cisco NX-OS Software operating system with comprehensive, proven innovations
- Cisco Tetration Analytics platform support
- Cisco Network Assurance Engine (NAE)
Models | N9K-C9336C-FX2-E | N9K-C93360YC-FX2 | N9K-C93216TC-FX2= | ||
Ports | 36 x 40/100-Gbps QSFP28 ports | 36 x 40/100-Gbps QSFP28 ports | 48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports | 96 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports | 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gbps QSFP28 ports |
Supported speeds | 1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 | 1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 16/32-Gbps Fibre Channel | 1/10/25-Gbps on downlinks 40/100-Gbps on uplinks | 1/10/25-Gbps on downlinks 40/100-Gbps on uplinks Breakout supported ports, 97-108: 4x10/25G | 100M/1/10 Gbps RJ45 downlinks 40/100-Gbps on uplinks Breakout supported ports, 97-108: 4x10/25G |
CPU | 4 cores | 4 cores | 4 cores | 4 cores | 4 cores |
System memory | 24 GB | 24 GB | Up to 24 GB | Up to 24 GB | Up to 24 GB |
SSD drive | 128 GB | 128 GB | 128 GB | 128 GB | 128 GB |
System buffer | 40 MB | 40 MB | 40 MB | 40 MB | 40 MB |
Power supplies | 750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC | 750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC** | 750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC | 1200W AC, 1200W HVAC/HVDC | 1200W AC, 1200W HVAC/HVDC |
Typical power (AC) | 337W | 337W | 298W | 404W | 580W |
Maximum power (AC) | 719W | 705W | 708W | 900W | 965W |
Fans | 3 dual fan trays | 6 | 5 | 3 fan trays | 3 fan trays |
Physical dimensions | 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) | 1.72 x 17.3 x 24.7 in. (4.4 x 43.9 x 62.7 cm) | 2.1 x 17.3 x 23.3 in. (5.3 x 43.9 x 59.1 cm) | 3.38 x 17.41 x 24.14in. (8.59 x 44.23 x 61.31 cm) | 3.38 x 17.41 x 23.6 in (8.59 x 44.2 x 59.9 cm) |
Do you have any question about the N9K-C9336C-FX2?
Contact us now via [email protected]
Item | Cisco Nexus 9300-FX2 Series Switches |
Feature | Cisco Nexus 9336C-FX2 |
Ports | 36 x 40/100-Gbps QSFP28 ports |
Supported speeds | 1/10/25/40/100-Gbps Ethernet Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4x10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 |
CPU | 4 cores |
System memory | 24 GB |
SSD drive | 128 GB |
System buffer | 40 MB |
Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
USB ports | 1 |
RS-232 serial ports | 1 |
Power supplies(up to 2) | 750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
Typical power (AC) | 337W |
Maximum power (AC) | 719W |
Input voltage (AC) | 100 to 240V |
Input voltage (High-Voltage AC [HVAC]) | 100 to 277V |
Input voltage (DC) | –40 to –72V |
Input voltage (High-Voltage DC [HVDC]) | –240 to –380V |
Frequency (AC) | 50 to 60 Hz |

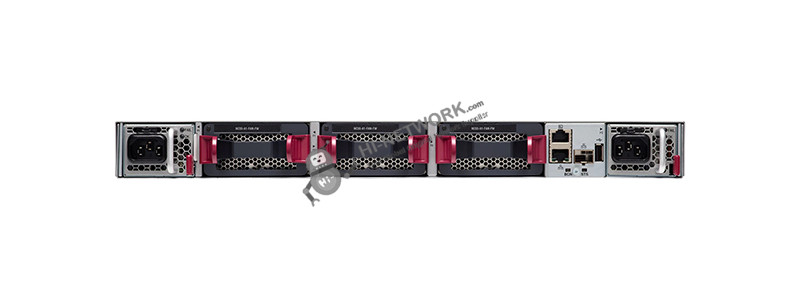

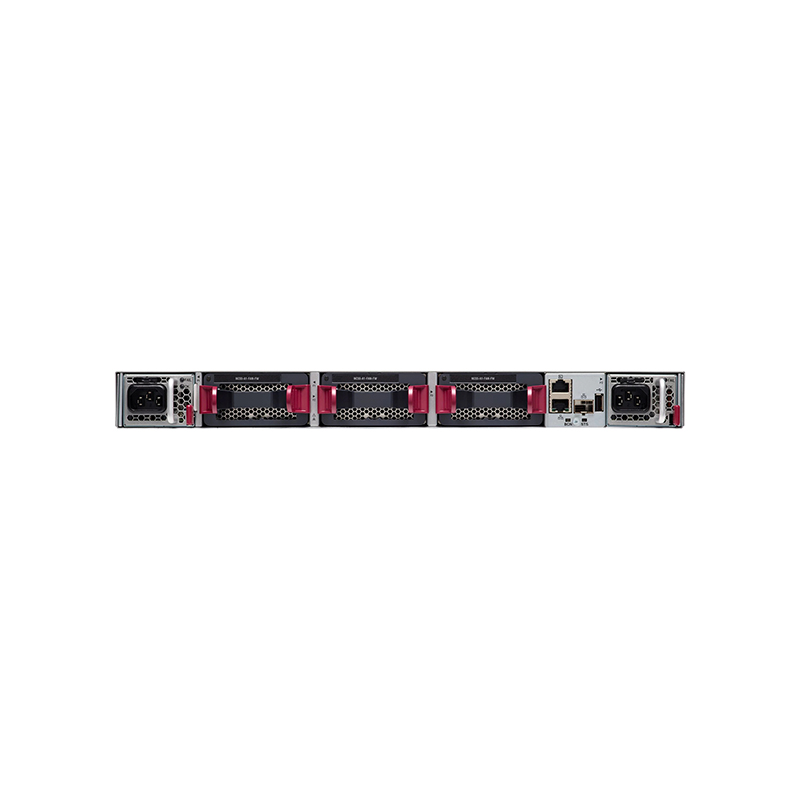

Fans | 3 dual fan trays |
Airflow | Port-side intake and exhaust |
Physical dimensions(H x W x D) | 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) |
MTBF | 352,590 hours |
Maximum number of Longest Prefix Match (LPM) routes** | 896,000 |
Maximum number of IP host entries** | 896,000 |
Maximum number of MAC address entries** | 256,000 |
Maximum number of multicast routes | 128,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000 Maximum: 32,000 |
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine: 5000 ingress 2000 egress |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 512 |
Maximum number of links in a port channel | 32 |
Number of active SPAN sessions | 4 |
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Number of Network Address Translation (NAT) entries | 1,023 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
Number of Queues | 8 |
