Series

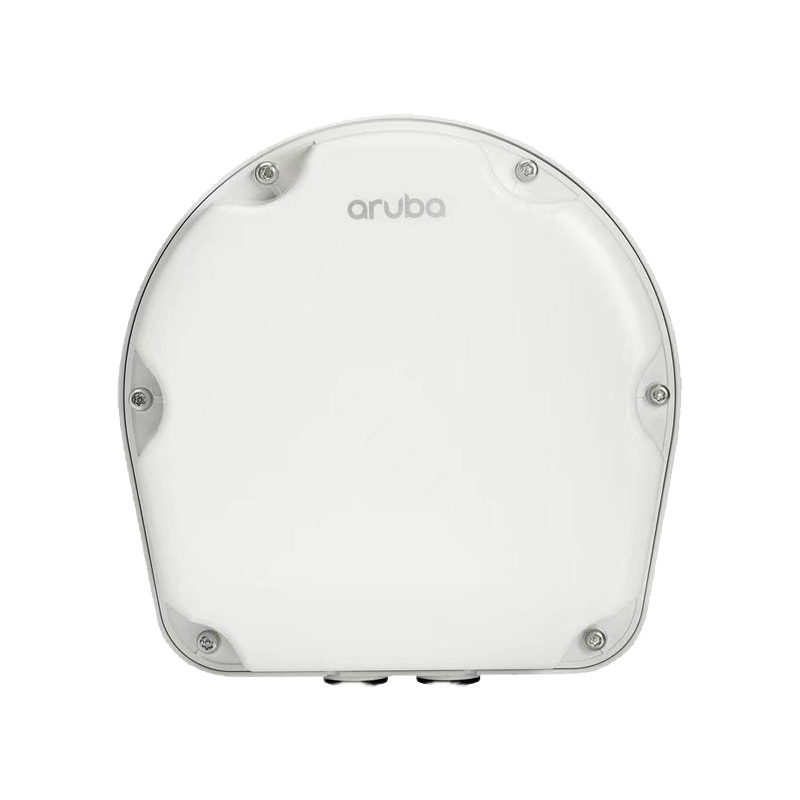

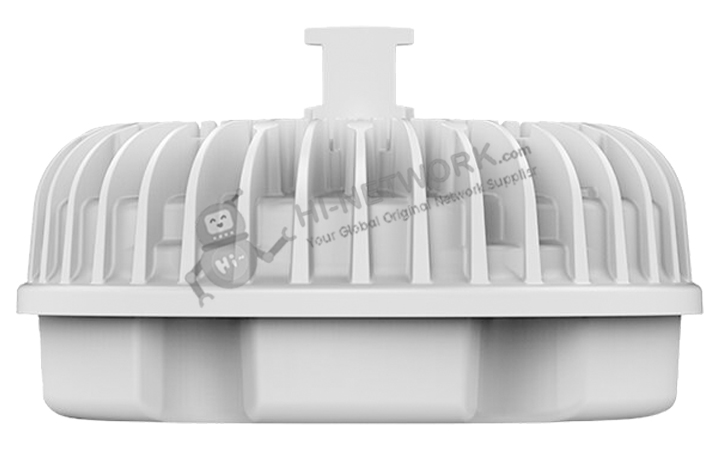

Aruba AP-577

AP type

Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO

Description

HPE Aruba Networking AP-577 (RW) 802.11ax 2x2:2/4x4:4 Dual Radio Integrated Directional Antenna Outdoor AP

Dimension (including single-gang wall box mount plate)

23 cm (W) x 22 cm (D) x 14 cm (H)/9.0” (W) x 8.7” (D) x 5.6” (H)

Weight

2.1 kg/4.6 lbs

OperatingTemperature

-40°C to +65°C (-40°F to +149°F) with full solar loading

Storage Temperature

-40°C to +70°C (-40°F to +158°F)

Humidity

5% to 93% non-condensing

5GHz radio

● Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)

● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical)

● Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (max)

● Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (typical)

2.4GHz radio

● Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical)

Maximum number of BSSIDs

16 BSSIDs per radio

Supported frequency bands (country-specific restrictions apply)

● 2.400 to 2.4835GHz

● 5.150 to 5.250GHz

● 5.250 to 5.350GHz

● 5.470 to 5.725GHz

● 5.725 to 5.850GHz

● 5.850 to 5.875

Available channels

Dependent on configured regulatory domain

Supported radio technologies

● 802.11b: Direct-sequence spread-spectrum (DSSS)

● 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

● 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)

Supported modulation types

● 802.11b: BPSK, QPSK, CCK

● 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)

● 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024 QAM (proprietary extension)

● 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024 QAM

Antenna

● Built in 90°H x 90°V Directional Antennas

● 5 GHz Antennas 5.6dBi

● 2.4 GHz Antennas 6.8dBi

● BLE/Zigbee: Integrated omnidirectional antennas with peak gain of 8.4dBi

Maximum No. of associated client devices

Up to 512 associated client devices per radio

Supported data rates (Mbps)

● 802.11b: 1, 2, 5.5, 11

● 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)

● 802.11ac: (5 GHz): 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4 for VHT20 to VHT160)

● 802.11ax (2.4GHz): 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

● 802.11ax (5GHz): 8.6 to 4803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

802.11n high-throughput (HT) support

HT 20/40

802.11ac very high throughput (VHT) support

VHT 20/40/80/160

802.11ax high efficiency (HE) support

HE 20/40/80/160

802.11n/ac packet aggregation

A-MPDU, A-MSDU

Transmit power

Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)

● 2.4 GHz band: +22 dBm per chain, +25 dBm aggregate (2x2)

● 5 GHz band: +22 dBm per chain, +28 dBm aggregate (2x2)

● Note: conducted transmit power levels exclude antenna gain

Certifications

● CB Scheme Safety, cTUVus

● UL2043 plenum rating

● Wi-Fi Alliance certified 802.11a/b/g/n/

● Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)

● Wi-Fi CERTIFIED™ ac (with wave 2 features)

● Passpoint® (Release 2) with HPE Aruba Networking Operating System and Instant

● Wi-Fi CERTIFIED Location™
