ZTE ZXHN F670 GPON ONU 4 GE 2 USB 1 POTS WiFi

21
5
5/5.0
Q/A
33 Sold/Mon
Detail: F670 GPON Terminal with 4*GE+2*USB+1*POTS+WIFI 2.4/5G 5dBi antenna, ZTE based solution
Model: ZXHN F670
Condition: Factory Sealed New
Related:
Warranty:
1-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
1
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE ZXHN F670 GPON ONU 4 GE 2 USB 1 POTS WiFi


ZXHN F670 is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers with rich, colorful, individualized, convenient and comfortable services including voice, video (IPTV) and high-speed internet access.



Quick Specification


Table 1 shows the Quick Specification.

Model

ZXHN F670

Description

F670 GPON Terminal with 4*GE+2*USB+1*POTS+WIFI 2.4/5G 5dBi antenna, ZTE based solution

Power consumption

<12W

Dimensions

220mm(W)x160mm(H)x 28mm(D)

Working temperature

0°C ~ 40C

Working humidity

5%~95%

Weight

about 600g

Power supply

12 V DC

Mounting mode

Desktop/all mounting

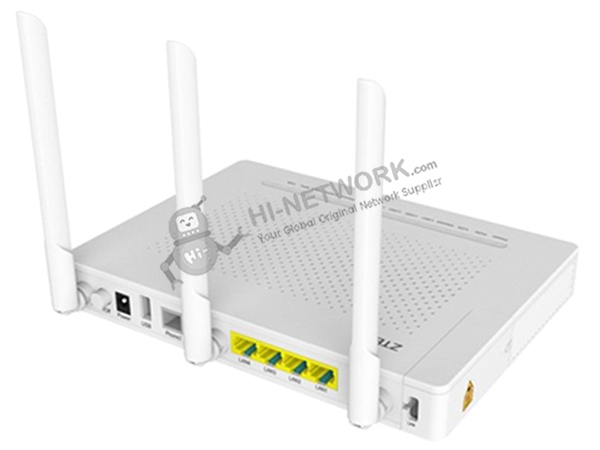

Figure 1 shows the appearance of ZXHN F670.

front-zxhn-f670-datasheet


Product Details


Technical Specifications

Optical Port

1x GPON interface (SC/APC)

Transmission Distance

0~ 20km

Transmit Rate

2.488Gbps downstream; 1.244Gbps upstream

QoS

●4 x 10/100/1000Base-T: Half/full duplex; Auto MD/MDlX; Auto negotiation

●2 x POTS interfaces

●1 x Wi-Fi interface: lEEE 802.11n 2x2 @2.4G Hz + IEEE 802.11ac 3x3 @5G Hz

●1 x USB 2.0

Wavelength

Receiving: 1480~1500 nm

Transmitting: 1290~1330 nm

Receiving Sensitivity

-28dBm

Transmitting Optical Power

0.5~5dBm

Supported Service

VolP, Intemet, IPTV

GPON

8 T-CONTs, 32 GEM Ports

VLAN

802.1Q, 802.1P, 802.1ad

MAC Address Table

1k

L3 Function

DHCP server/Client, DNs Client, NAT

IPv6

Dual Stack, DS-Lite

VoIP

SIP/H.248, G.711/G.722, T.30/T.38

Wi-Fi

4 SSIDs, 2x2 [email protected], 3x3 MIMO@5G, WPS

Wi-Fi Authentication

Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK

Multicast

lGMP v1/v2/V3 Snooping/Proxy, MLD V1 Snooping

Multicast Group

64

QoS

service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/RR/SP+WRR

Management

local web management, OMCl, TRO69

USB

DLNA DMS, USB backup


Get More Information


Do you have any questions about the ZXHN F670?

Contact us now via [email protected].

Specific Data Sheet:


ZXHN F670 Specification

Description

F670 GPON Terminal with 4*GE+2*USB+1*POTS+WIFI 2.4/5G 5dBi antenna, ZTE based solution

Power consumption

<12W

Dimensions

220mm(W)x160mm(H)x 28mm(D)

Working temperature

0°C ~ 40C

Working humidity

5%~95%

Weight

about 600g

Power supply

12 V DC

Mounting mode

Desktop/all mounting

Optical Port

1x GPON interface (SC/APC)

Transmission Distance

0~ 20km

Transmit Rate

2.488Gbps downstream; 1.244Gbps upstream

QoS

●4 x 10/100/1000Base-T: Half/full duplex; Auto MD/MDlX; Auto negotiation

●2 x POTS interfaces

●1 x Wi-Fi interface: lEEE 802.11n 2x2 @2.4G Hz + IEEE 802.11ac 3x3 @5G Hz

●1 x USB 2.0

Supported Service

VolP, Intemet, IPTV

GPON

8 T-CONTs, 32 GEM Ports

VLAN

802.1Q,802.1P,802.1ad

MAC Address Table

1k

L3 Function

DHCP server/Client, DNs Client, NAT

IPv6

Dual Stack, DS-Lite

VoIP

SIP/H.248, G.711/G.722, T.30/T.38

Wi-Fi

4 SSIDs, 2x2 [email protected], 3x3 MIMO@5G, WPS

Wi-Fi Authentication

Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK

Multicast

lGMP v1/v2/V3 Snooping/Proxy, MLD V1 Snooping

Multicast Group

64

QoS

service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/RR/SP+WRR

Management

local web management, OMCl, TRO69

USB

DLNA DMS, USB backup
