ZTE ZXHN F2866 XG-PON ONU 4 GE 2 POTS 2 USB 2.4G/5G WiFi

45.5
5
5/5.0
Q/A
28 Sold/Mon
Detail: ZTE ZXHN F2866 XG-PON Terminal with 4*GE+2*POTS+2*USB+2.4G/5G WIFI, 5dBi
Model: ZXHN F2866
Condition: Factory Sealed New
Related:
Warranty:
1-Year Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
1
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE ZXHN F2866 XG-PON ONU 4 GE 2 POTS 2 USB 2.4G/5G WiFi


ZTE F2866 XG-PON Terminal is specifically designed for single-family units (SFUs) used in FTTH scenarios. It provides users with colorful, personalized, convenient and comfortable triple play services, including video (IPTV) and high-speed Internet access. ZTE GPON ont adopts a highly integrated SOC solution. It has a small, smart appearance and green, energy-saving advantages.

ZTE Original ZXHN XG-PON ONT F2866 provides four GE Ethernet port, two POTS port and two USB. F2866 has dual band WiFi function, support 802.11ac.



Quick Specification


Table 1 shows the Quick Specification.

Model

ZXHN F2866

Description

ZTE ZXHN F2866 XG-PON Terminal with   4*GE+2*POTS+2*USB+2.4G/5G WIFI, 5dBi

Operating temperature

Operating temperature: -5ºC to 45ºC

Environment humidity

5% to 95%

System power supply

12 V DC, 3 A

Dimensions

205mm x 222mm x 28mm

Weight

About 2kg

Port

4*GE+2*POTS+2*USB

WIFI

2.4/5G

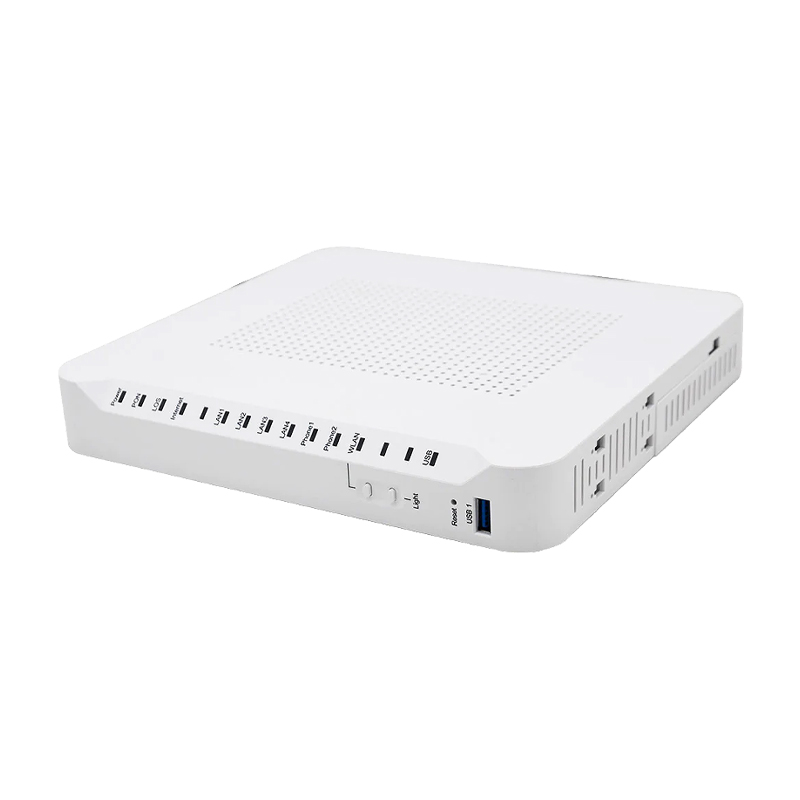

Figure 1 shows the appearance of ZXHN F2866.

front-zxhn-f2866-datasheet


Product Details


XG-PON Gateway Features

ITU-T G.987 XG-PON terminal for Fiber to the home implementations.

L3 GW 11ac Dual-Band

WAN interface: Optical 1x XG-PON (SC/APC)

Data transfer speed: 9.953Gbit/s (downstream), 2.488Gbit/s (upstream)

LAN interface: 4×10/100/1000Base-T

2x RJ-11 connection (VoIP)

1x USB 2.0 + 1x USB 3.0

WLAN 11ac Wave2: 2400 Mbit/s (600 Mbit/s (2.4GHz 11n 4:4 MIMO) + 1733 Mbit/s (5GHz 11ac 4:4 MIMO)

Wi-Fi MU-MIMO

Easy Mesh Compliance

Internal antennas

IEEE 802.1q (VLAN Tag + QinQ)

Management: OMCI ITU-T G.988, WEB GUI

WRR, SP, or WRR+SP T-CONT queue scheduling mode

AES-128 encryption

DBA (Dynamic Bandwidth allocation ITU-T G.984.3)

Multicast GEM Port

Dimensions: 205x28x222mm

12V DC


Get More Information


Do you have any questions about the ZXHN F2866 (AAY69NHD)?

Contact us now via [email protected].

Specific Data Sheet:


ZXHN F2866 Specification

Description

ZTE ZXHN F2866 XG-PON Terminal with 4*GE+2*POTS+2*USB+2.4G/5G WIFI, 5dBi

Operating temperature

Operating temperature: -5ºC to 45ºC

Environment humidity

5% to 95%

System power supply

12 V DC, 3 A

Dimensions

205mm x 222mm x 28mm

Weight

About 2kg

Interface

● 1 XG-PON Optical interface

● 4 RJ-45 ports for GE interface

● 2 RJ-11 ports for VoIP

● 1 USB 3.0 + 1 USB2.0 host interfaces

Wi-Fi

● Frequency: 2.4 GHz, 5GHz

● IEEE 802.11a/n/ac Wi-Fi @ 5GHz(4x4)

● IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(4x4)

● WEP/WPA/WPA2 Security
