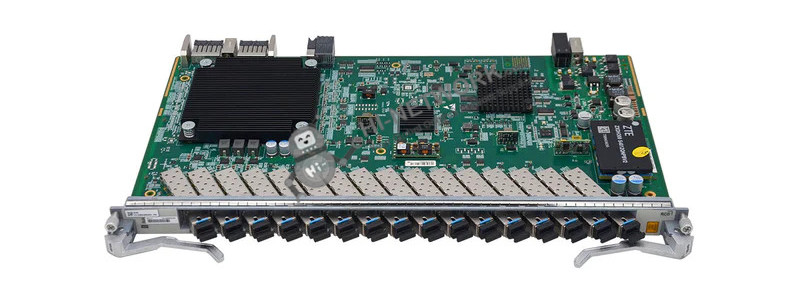

ZTE GFGL ZXA10 C600 C650 C680 16-port GPON OLT interface board (full with C+ modules)

564
4.8
4.8/5.0
Q/A
3 sold/Mon
Detail: ZTE ZXA10 C600 C650 C680 16-port GPON OLT interface board (full with C+ modules)
Model: GFGL
Condition: Factory Sealed New; In Stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE GFGL ZXA10 C600 C650 C680 16-port GPON OLT interface board (full with C+ modules)


ZTE GFGL Service Board is GPON 16-port service board with C+/C+ + module suitable for C600


Quick Specification:


Model

ZTE GFGL

GPON Port

16-GPON Port

Type

C+ Module : Single Fiber Bidirectional Optical Module, Class C+

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C+ Module : 3.00 dBm

Maximum Output Optical Power

C+ Module : 7.00 dBm

Maximum Receiver Sensitivity

C+ Module : -32.00 dBm

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C+ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1.46kg

Dimensions (W x D x H)

393.1 mm × 23.9 mm × 214 mm


The Front Panel:


zte-gfgl-datasheet





GFGL Service Board Product and More Service Boards:


ZTE GFGN Service Board GPON16-port service board with C+/C++ module suitable for C600

ZTE GFGL Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGH Service Board GPON 16-port service board with C+/C+ + module suitable for C600

ZTE GFGM Service Board GPON 16-port service board with C+/C++ module suitable for C600

ZTE EFGH Service Board 16 EPON interface board for C600

ZTE GFTH Service Board 16 port 10G GPON interface board for C600

ZTE GFXH Service Board 16 port XG-PON interface board for C600

ZTE GFBH Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFCH Service Board 16 port GPON & XGS- PON Combo interface board for C600

ZTE GFBL Service Board 16 port GPON & XG PON Combo interface board suitable for C600

ZTE GFBN Service Board 16 port GPON & XG-PON Combo connect to C board, suitable for C600

ZTE GFBT Service Board 16 port GPON & XG PON Combo interface board for C600


Get More Information


Do you have any questions about the GFGL?

Contact us now via [email protected]

Specific Data Sheet:


Model

ZTE GFGL

GPON Port

16-GPON Port

Type

C+ Module : Single Fiber Bidirectional Optical Module, Class C+

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C+ Module : 3.00 dBm

Maximum Output Optical Power

C+ Module : 7.00 dBm

Maximum Receiver Sensitivity

C+ Module : -32.00 dBm

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C+ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1.46kg

Dimensions (W x D x H)

393.1 mm × 23.9 mm × 214 mm
