ZTE ETTO 8 ports 10G EPON board with 8 10G EPON modules for C320 C300 OLT Equipment

492
4.8
4.8/5.0
Q/A
3 sold/Mon
Detail: ZTE ETTO 8 ports 10G EPON board with 8 10G EPON modules for C320 C300 OLT Equipment
Model: ETTO
Condition: Factory Sealed New; In Stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
5
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE ETTO 8 ports 10G EPON board with 8 10G EPON modules for C320 C300 OLT Equipment


ZTE ETTO Service Board is an 8-port 10G EPON OLT interface board, which cooperates with ONU to realize EPON access service. ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.


Quick Specification


Brand

ZTE

Specification

ETTO

Port quantity

8

MAX Split ratio

1: 128

Forwarding Rate

80Gbit/s

Rate model

Symmetric Rate model

Asymmetric Rate Model

Maximum Number of LLID

256

Maximum Number of Service Flows Supported by the Board

16368

Maximum frame length

2052 bytes

Maximum Number of MAC

16384

Maximum differential fibre distance (km)

40

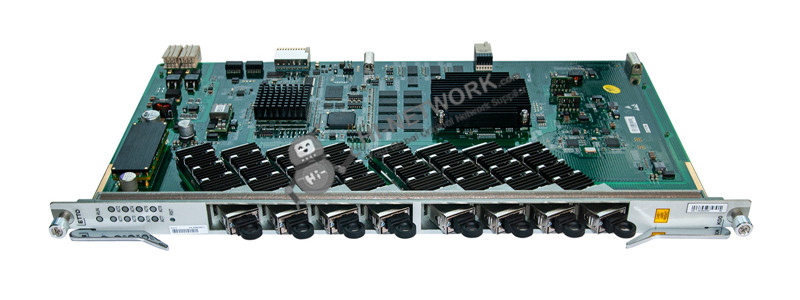

The Front Panel:


zte-etto-datasheet


ETTO Service Board Product Features:


•   High Density, energy Saving, low power consumption, support 1024 access users
•    Manual shutdown of idle PON port to avoid power waste
•    Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 40 km, simplified network planning
•    Intelligent Management Channel
•    Level 4 HQoS to Improve User Experience
•    9216 Jumbo frame, greatly improving transmission efficiency
•    Easy to operate and maintain
•    Real-time hooligans ONU detection and isolation to ensure stable operation of business
•    Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
•    1:128 eOTDR, Accurate Fault Responsibility Division and Fast Fault Location
•    8 10G EPON Port (XFP Optical Module):
•    Maximum spectral ratio:1:128


ETTO Service Board and More Service Boards:


GTGO

8 ports GPON board with 8 B+ modules.

GTGO

8 ports GPON board with 8 C+ modules.

GTGO

8 ports GPON board with 8 C++ modules.

GTGH

16 ports GPON board with 16 B+ modules.

GTGH

16 ports GPON board with 16 C+ modules.

GTGH

16 ports GPON board with 16 C++ modules.

GTTO

8 ports 10G GPON board with 8 10G GPON modules

GTXO

8 ports 10G GPON board with 8 10G GPON modules

ETGO

8 ports EPON board with 8 modules.

ETGH

16 ports EPON board with 16 modules


Get More Information


Do you have any questions about the ETTO?

Contact us now via  [email protected]

Specific Data Sheet:


Brand

ZTE

Specification

ETTO

Port quantity

8

MAX Split ratio

1: 128

Forwarding Rate

80Gbit/s

Rate model

Symmetric Rate model

Asymmetric Rate Model

Maximum Number of LLID

256

Maximum Number of Service Flows Supported by the Board

16368

Maximum frame length

2052 bytes

Maximum Number of MAC

16384

Maximum differential fibre distance (km)

40

Board supporting downstream FEC

Yes

Board supporting upstream FEC

Yes

CAR

Yes

Temperature query and high temperature alarm

Yes

Automatic power shutdown in case of a high temperature

Yes

Rogue ONT detection

Yes

1588v2

EPON model:Yes

10G EPON model:No

High temperature automatic concern

Yes

Rogue ONT Detection and Isolation Support

Yes

Working temperature

-40℃~+65℃

Maximum Power waste

65w

Dimensions (W x D x H)

490 mm x 325mm x 75mm
