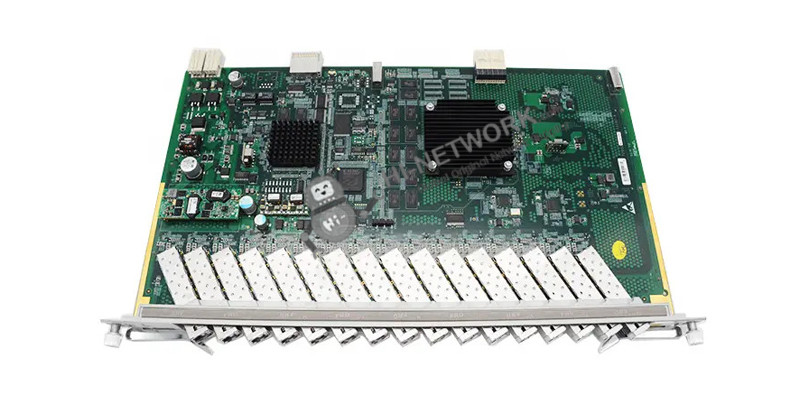

ZTE 16 Ports GTGH GPON Interface Board GTGH G22 K00 Placa with 16 Pieces SFP Module Class B+ C+ C++ for ZTE ZXA10 C300 C320 C350 OLT

416.13
4.8
4.8/5.0
Q/A
2 sold/Mon
Detail: ZTE ZXA10 16-port GPON OLT interface board offering GPON service access for ZTE ZXA10 C300, C320.
Model: GTGH
Condition: Factory Sealed New; In Stock
Related:
Warranty:
1 Year-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

ZTE GTGH ZXA10 C320 C350 C300 16-port GPON OLT interface board


ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board cost.


Quick Specification:


Brand

ZTE

Model

GTGH

GPON Port

16-GPON Port

Type

C++ Module: Single Fiber Bidirectional Optical Module, Class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C++ Module : 4.50 dBm

Maximum Output Optical Power

C++ Module : 8.00 dBm

Maximum Receiver Sensitivity

C++ Module : -30 dBm @10E-10

Maximum Output Optical Power

-32 dBm @10E-10

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C++ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1kg

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm


The Front Panel:


zte-gtgh-datasheet



GTGH Service Board Product Features:



·ŸHigh Density:

 – 16 GPON ports per card, up to 1:128 split ratio

·ŸGPON Function:

 – Support ONU power saving management defined in G.987.3

– 1024 T-CONTs per PON port, 4096 GEM ports per PON port Ÿ

·High TM Performance:

– Support H-QOS

– 1024 queues and 356 schedulers per PON port

– Support color-sensitive RED and WRED discard algorithm Ÿ

·Clock / Time Function:

– Receive 1PPS+TOD signals and send them to the ONU through a PON channel

·ŸLow Power Consumption:

– Newly developed lower power GPON MAC chip

– Reduce 30% power consumption on industry average


GTGH Service Board Product and More Service Boards:


GTGO

8 ports GPON board with 8 B+ modules

GTGO

8 ports GPON board with 8 C+ modules

GTGO

8 ports GPON board with 8 C++ modules

GTGH

16 ports GPON board with 16 B+ modules

GTGH

16 ports GPON board with 16 C+ modules

GTGH

16 ports GPON board with 16 C++ modules

GTTO

8 ports 10G GPON board with 8 10G GPON modules

GTXO

8 ports 10G GPON board with 8 10G GPON modules

ETGO

8 ports EPON board with 8 modules

ETGH

16 ports EPON board with 16 modules

ETTO

8 ports 10G EPON board with 8 10G EPON modules



Get More Information


Do you have any questions about the GTGH?

Contact us now via [email protected]

Specific Data Sheet:


Brand

ZTE

Model

GTGH

GPON Port

16-GPON Port

Type

C++ Module: Single Fiber Bidirectional Optical Module, Class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C++ Module : 4.50 dBm

Maximum Output Optical Power

C++ Module : 8.00 dBm

Maximum Receiver Sensitivity

C++ Module : -30 dBm @10E-10

Maximum Output Optical Power

-32 dBm @10E-10

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C++ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1kg

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm
