| Detail: | Cisco Catalyst 3650 24 Port PoE 2x10G Uplink LAN Base |
| Model: | WS-C3650-24PD-L |
| Condition: | Sealed New;In Stock |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
17.8
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
The Cisco Catalyst 3650 Series Switch, with Cisco StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS-C3650-24PD-L integrates with 24 POE+ Ethernet ports and 2 x 10G SFP+ or 4 x 1G SFP uplink ports in LAN base feature set.
Product Code | WS-C3650-24PD-L |
Enclosure Type | Rack-mountable - 1U |
Feature Set | LAN base |
Uplink Interfaces | 2 x 10G SFP+ or 4 x 1G SFP |
Ports | 24 x 10/100/1000 POE+ Ethernet ports |
Available PoE Power | 390W |
Maximum stacking number | 9 |
Stack bandwidth | 160 Gpbs |
Forwarding Performance | 68.45Mpps |
Switching Capacity | 88 Gbps |
RAM | 4 G |
Flash Memory | 2 G |
Dimensions | 44.5 cm x 44.8 cm x 4.4 cm |
Package Weight | 17.49 Kg |

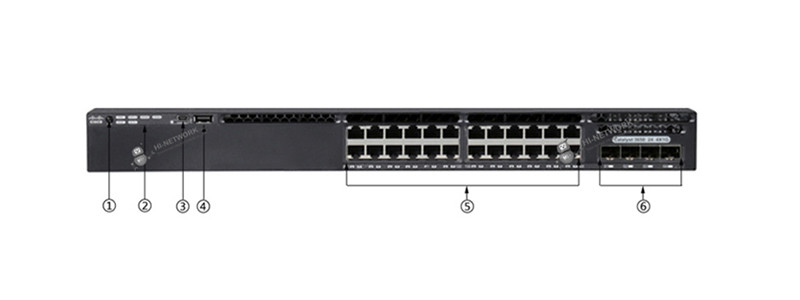

① | Mode button |
② | Status LEDs |
③ | USB mini-Type B (console) port |
④ | USB Type A storage port |
⑤ | 24 x 10/100/1000 POE+ Ethernet Ports |
⑥ | Uplink ports |

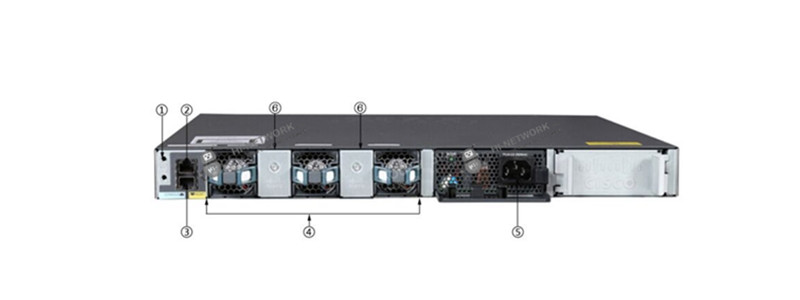

① | Ground Connector |
② | CONSOLE (RJ-45 console port) |
③ | MGMT (RJ-45 10/100/1000 management port) |
④ | Fan module |
⑤ | Power Supply modules |
Part number | Description |
C3650-STACK-KIT | Cisco Catalyst 3650 Stack Module Spare |
L-C3650-24-L-E= | C3650-24 LAN Base to IP Services Electronic RTU License |
L-C3650-24-L-S= | C3650-24 LAN Base to IP Base Electronic RTU License |
PWR-C2-640WAC= | 640W AC Config 2 Secondary Power Supply |
Console Cable 6ft with RJ45 and DB9F | |
Console Cable 6 ft with USB Type A and mini-B |
Models | ||
Feature Set | LAN Base | LAN Base |
Uplink Interfaces | 2 * 10G SFP+ OR 4 * 1G SFP uplinks | 2 * 10G SFP+ OR 4 * 1G SFP uplinks |
Ports | 24 * 10/100/1000 POE+ Ethernet ports | 24 * 10/100/1000 Ethernet ports |
Available POE Power | 390W | N/A |
Do you have any question about the WS-C2960L-24PD-L?
Contact us now via [email protected]
Model | WS- C3650-24PD-L |
Enclosure type | Rack-mountable - 1U |
Ports | 24 x 10/100/1000 (POE+) + 2 x 10G SFP+ & 2 x 1G SFP |
Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
Available PoE Power | 390W |
Switching Capacity | 88Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 160Gbps |
Forwarding Performance | 68.45Mpps |
FNF entries | disabled (IP base license required) |
Maximum VLANs IDs | 255 |
Maximum VLANs IDs | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 1000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | power redundant slot |
Accessory & Rack Moubt Kits | ACC-KIT-T1: Accessory kit RACK-KIT-T1: Rack mount kit 4PT-KIT-T1:Extension rails and brackets for four-point mounting |
Stacking module & cable | C3650-STACK-KIT: Stack Module STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
Power supply | PWR-C2-640WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone (in Watts) | 101.5 (max) |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.625 Inches (44.8 cm) |
Height | 1.73 Inches (4.4 cm) |
Shipping Weight | 17.49 Kg |
Rack Mounting Kit | optional |
MTBF in hours | 528,280 |
Compliant Standards | IEEE 802.1D Spanning Tree Protoco IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1X-Rev IEEE 802.11 IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 |
System software | IOS LAN Base (Upgradable) |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Access Point Licenses | L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e- delivery) L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e- delivery) LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
features | EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
Advanced Network security | Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) Bidirectional data support on a SPAN ● User authentication Private VLAN ●Router and VLAN ACLs ● complete identity and security Multidomain authentication ● MAC address notification IGMP filtering ● Cisco security VLAN ACL Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs Bridge protocol data unit (BPDU) Guard Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
Management | BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB CISCO-CALLHOME-MIB ●CISCO-CEF-MIB CISCO-CIRCUIT-INTERFACE-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-CONTEXT-MAPPING-MIB CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB CISCO-EIGRP-MIB CISCO-EMBEDDED-EVENT-MGR-MIB CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB ENTITY-MIB ●CISCO-ERR-DISABLE-MIB CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB CISCO-SMART-INSTALL-MIB CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP- MIB ●EtherLike-MIB HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB LLDP-MIB ●NOTIFICATION-LOG-MIB OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB POWER-ETHERNET-MIB ●RMON2-MIB RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB CISCO-LWAPP-CLIENT-ROAMING-MIB CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB CISCO-LWAPP-DOT11-CCX-CLIENT-MIB CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB |
Technical Support and Services | Cisco SMARTnet Service ● Cisco Smart Foundation Service Cisco SP Base Service ● Cisco Focused Technical Support Services |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 16,400 Feet (Up to 5000m) |
Storage altitude | Up to 16,400 Feet (Up to 5000m) |
Operating relative humidity | 5% to 96% noncondensing |
Storage relative humidity | 5% to 96% noncondensing |
