WS-C2960X-24TS-LL Cisco Catalyst 24 ports Stackable Switches

USD

1589 ~~$3276~~ (51.5% OFF)

4.9 4.9/5.0 Reviews Q/A 42 sold/Mon
Detail:	Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite
Model:	WS-C2960X-24TS-LL
Condition:	Sealed New;In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

WS-C2960X-24TS-LL Cisco Catalyst 24 ports Stackable Switches

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco Catalyst 2960X-24TS-LL LAN Lite Layer 2 switch provides standalone mode with no FlexStack plus supporting and no NetFlow lite features.

Quick Specification:

Product Code	WS-C2960X-24TS-LL
Enclosure Type	Rack-mountable – 1U
Feature Set	LAN Lite
Uplink Interfaces	2 x 1G SFP
Ports	24 x Ethernet 10/100/1000 Gigabit ports
Forwarding Performance	50Gbps
Switching Bandwidth	100Gbps
RAM	256 MB
Flash Memory	64 MB
Dimensions	44.5 cm x 27.9 cm x 4.5 cm
Package Weight	9.19 Kg

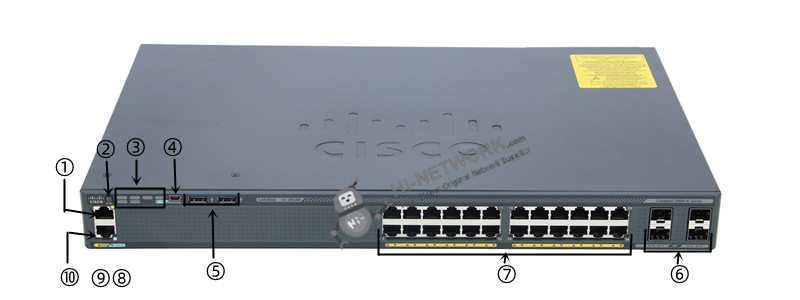

The Front Panel:

①	Ethernet management port
②	Mode button
③	Switch LEDs
④	USB mini-Type B (console) port
⑤	USB Type A ports
⑥	SFP module ports
⑦	24 x 10/100/1000 ports
⑧	CONSOLE LED
⑨	MGMT LED
⑩	RJ-45 console port

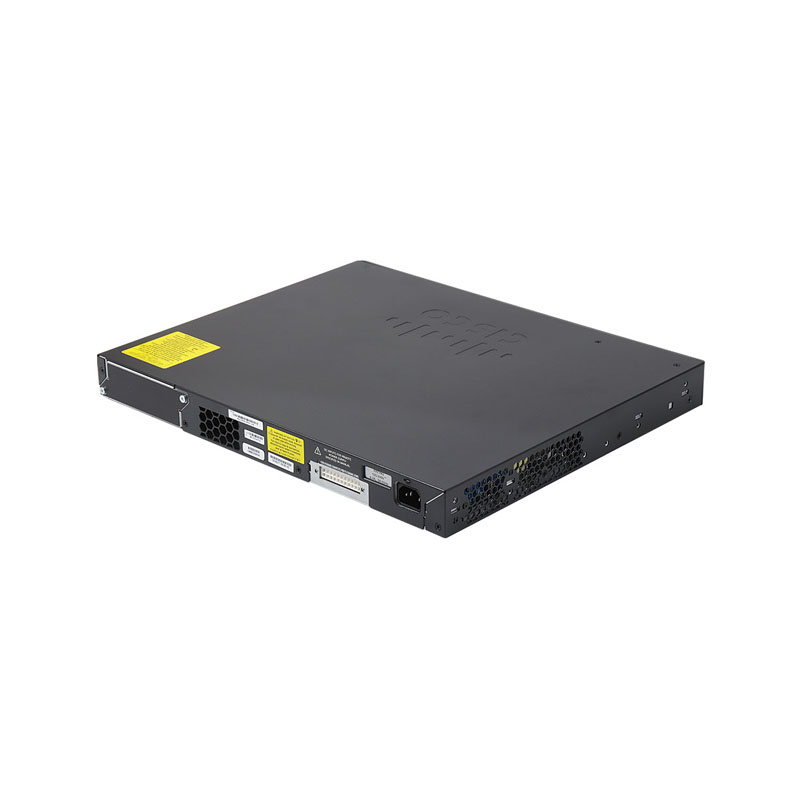

The Back Panel

①	Fan exhaust
②	RPS connector
③	AC power connector

The Accessories for WS-C2960X

Recommended Elements:

Model	Description
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Get More Information

Do you have any question about the WS-C2960X-24TS-LL?

Specific Data Sheet:

Product Number	WS-2960X-24TS-LL
enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 + 2 x 1G SFP
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	None
Forwarding bandwidth(Gbps)	50Gbps
Maximum stacking number	None
Stack Bandwidth	None
Forwarding Performance	68.5Mpps
Switching bandwidth	100Gbps
Maximum active VLANs	64
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	256 MB
Flash Memory	64 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed
0% traffic	46.7
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	Optional
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.035KVA
Width	17.5 Inches (44.5 cm)
Depth	11 Inches (27.9 cm)
Height	1.75 Inches (4.5 cm)
Package Weight	8.2 Pounds (9.19Kg)
Weight	20.26 Pounds (3.7Kg)
Rack Mounting Kit	optional
MTBF in hours	622,350
Compliant Standards	IEEE 802.1D Spanning Tree Protocol
	● IEEE 802.1p CoS Prioritization
	● IEEE 802.1Q VLAN
	● IEEE 802.1s
	● IEEE 802.1w
	● IEEE 802.1X
	● IEEE 802.1ab (LLDP)
	● IEEE 802.3ad
	● IEEE 802.3af and IEEE 802.3at
	● IEEE 802.3ah (100BASE-X single/multimode fiber only)
	● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T
	● IEEE 802.3u 100BASE-TX
	● IEEE 802.3ab 1000BASE-T
	● IEEE 802.3z 1000BASE-X
	● RMON I and II standards
	● SNMP v1, v2c, and v3
	● IEEE 802.3az
	● IEEE 802.1ax
System software	IOS LAN BASE
license	NERGY-MGT-100-K9, EW-DO-100-DE
features	● RPS Support
	● Jumbo Frames
	● VLANS
	● Voice Vlan
	● VTPv2
	● CDPv2
	● LLDP
	● 802.3ad LACP
	● PVST/PVST+
	● 802.1W/802.1S
	● Port Fast/Uplink Fast
	● port CoS Trust and Override
	● Scheduling
	● Priority Queuing
	● Configure CoS Priority Queues
	● Weighted Tail Drop
	● DSCP transparency
Network security	● SSH, SSL and SCP
	● RADIUS and TACACS+
	● SNMPv3 crypto
	● 802.1x
	● 802.1x Accounting / MIB
	● 802.1x w/ portsecurity
	● 802.1x w/Voice VLAN
	● 802.1x Guest VLAN
	● 802.1x VLAN assignment
	● 802.1x MAC-Auth Bypass
	● BPDU/Root Guard
	● Port Security
	● Private VALN Edge
	● Storm Control
	● Block unknown unicast andmulticast
	● IGMP Snooping
	● IGMP Filter/ThrottleIGMP Filter/Throttle
Management and Troubleshooting	● Auto-MDOX
	● TDR
	● UDLD
	● IP SLA Responder
	● layer 2 / IP Traceroute
	● SPAN
	● RSPAN
	● Express Setup
	● Device Manager
	● Cisco Network Assistant
	● Smartports + Advisor
	● Troubleshooting Advisor
	● Drag-and-drop Cisco IOS Upgrade
	● IP Address DHCP
	● Autoinstall with saved configuration
	● Configuration Replace
	● DHCP Auto Image Upgrade
	● DHCP Port Based Allocation
	● Error Disable MIB
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF
Short-term exception at sea level*	23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)*	23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)*	23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)*	23º to 104ºF
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF
Operating altitude	Up to 10,000 feet
Storage altitude	Up to 13,000 feet
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
