WS-C2960L-48TS-LL Asian Part Number AP Cisco 48 Ports Switch

USD

1635 ~~$3115~~ (47.5% OFF)

4.7 4.7/5.0 Reviews Q/A 2 sold/Mon
Detail:	Catalyst 2960L 48 port GigE, 4 x 1G SFP, LAN Lite (Asia Pacific Part Number: WS-C2960L-48TS-AP)
Model:	WS-C2960L-48TS-LL;WS-C2960L-48TS-AP
Condition:	Sealed New
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

WS-C2960L-48TS-LL Asian Part Number -AP Cisco 48 Ports Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco WS-C2960L-48TS-LL 48 port GigE, 4 1G SFP and LAN Lite, is one of Cisco Catalyst Cisco Catalyst 29-L Series. These two 2960-L configuration are formally configured, the switch Gigabit Gigabit provides access to a 2-level business class level level for the branch offices, space works normally and local closet applications.

Note: Model end of "LL" product's Asian Part Number is end of "AP." So Models have two Part Number. They are same function Products.

Quick Specification:

Product Code	WS-C2960L-48TS-LL
IOS	LAN Lite
Forwarding bandwidth	52 Gbps
Switching bandwidth	104 Gbps
10/100/1000 Ethernet Ports	48
Uplink Interfaces	4 x 1G SFP
Fanless	Y
DRAM	512 MB
Flash memory	256 MB
Net Weight	7.21 lb (3.27 kg)
Dimensions (H x D x W)	1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)

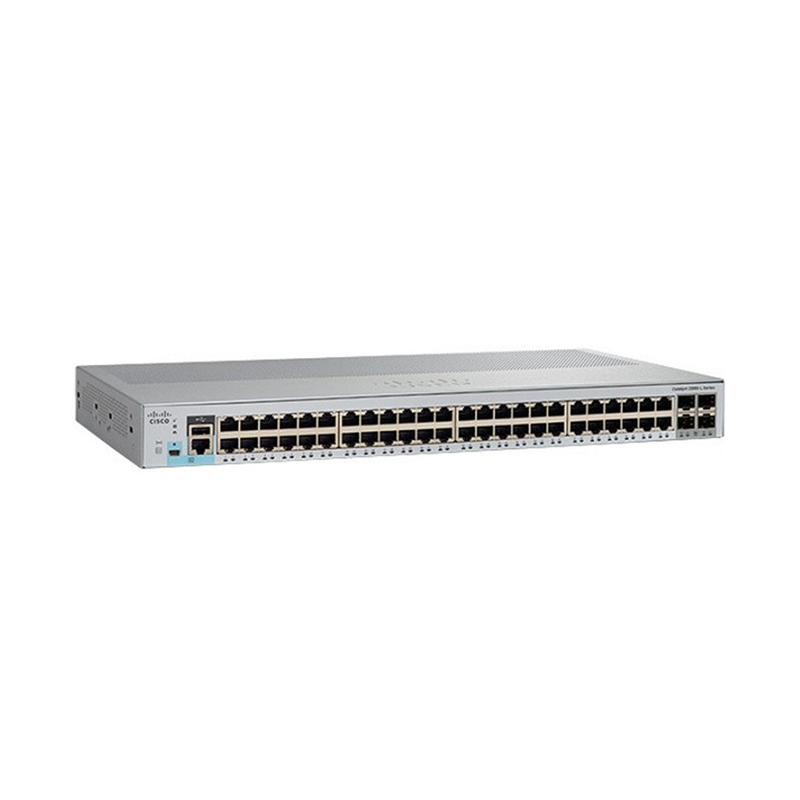

The Front Panel:

①	Mode button
②	USB mini-Type B (console) port
③	RJ-45 Console
④	48 x 10/100/1000 ports
⑤	SFP module slots
⑥	USB Type A port

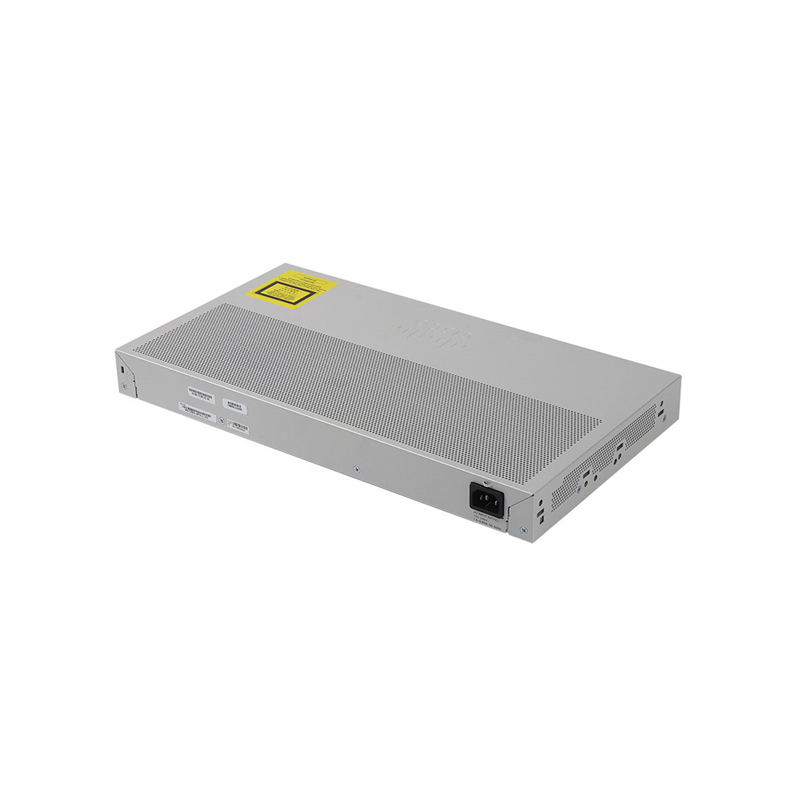

The Back Panel

The Accessories for C2960L-48TS-LL

Modules and Cables:

Model	Description
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-ACE=	CAB-ACE= AC Power Cord (Europe), C13, CEE 7, 1.5M
CAB-ACU=	CAB-ACU= AC Power Cord (UK), C13, BS 1363, 2.5m

Compare to Similar Items:

Model	WS-C2960L-24TS-LL	WS-C2960L-48TS-LL
IOS	LAN Lite	LAN Lite
Forwarding bandwidth	28 Gbps	52 Gbps
Switching bandwidth	56 Gbps	104 Gbps
10/100/1000 Ethernet Ports	24	48
Uplink Interfaces	4 x 1G SFP	4 x 1G SFP

Get More Information

Do you have any question about the WS-C2960L-48TS-LL?

Specific Data Sheet:

10/100/1000 Ethernet Ports	48
Uplink Interfaces	4 SFP
Dimensions (H x D x W)	1,73 x 9,45 x 17,5 inch (4,4 x 24 x 44,5 cm)
Net Weight	7.21 lb (3.27 kg)
CPU	ARMv7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Forwarding bandwidth	52 Gbps
Switching bandwidth	104 Gbps
Forwarding rate (64-byte L3 packets)	77,38 Mpps
Up to 5,000 ft	23ºF to 113ºF (–5ºC to 45ºC)
Up to 10,000 ft	23ºF to 104ºF (–5ºC to 40ºC)
Operating altitude	10,000 ft (3000m)
Operating relative humidity	5% to 90% at 40ºC
Voltage (autoranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.29A to 0.48A
Power rating (maximum consumption)	0.09 kVA
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC: emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EMC: immunity	EN55024, CISPR24, EN300386, KN24
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
