WS-C2960CX-8TC-L 8 Gigabit Ports 2 SFP and 2GE Uplinks Lan Base Switch

USD

912 ~~$1561~~ (41.6% OFF)

4.9 4.9/5.0 Reviews Q/A 57 sold/Mon
Detail:	Cisco Catalyst 2960-CX 8 - port compact Switch Layer 2 - 8 x 10/100/1000 Ethernet Ports, 2 SFP&2GE uplinks- LAN Base - Managed
Model:	WS-C2960CX-8TC-L
Condition:	Factory Sealed New ; In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 5.3	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

WS-C2960CX-8TC-L 8 Gigabit Ports 2 SFP and 2GE Uplinks Lan Base Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

WS-C2960CX-8TC-L is one of the Cisco Catalyst 2960 Compact Series Switches, which are ideal for space-constrained deployments where multiple cable runs would be challenging. The 2960CX Series offer Gigabit Ethernet ports with line rate forwarding performance.

Quick Specification:

Product Code	WS-C2960CX-8TC-L
Feature Set	LAN Base
Uplink Interfaces	2 x 1G copper plus 2 x 1G SFP
Ports	8 x 10/100/1000 Gigabit Ethernet ports
Forwarding Bandwidth	12 Gbps
Switching Bandwidth (full-duplex capacity)	24 Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	4.44 x 26.9 x 21.3 cm
Package Weight	4.38 Kg

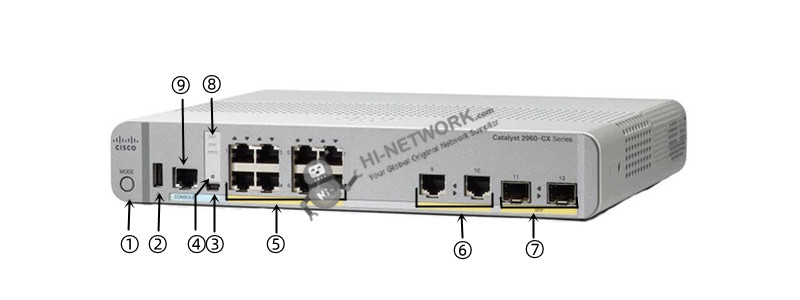

The Front Panel:

c2960cx-8tc-l-water-datasheet

①	Mode button
②	USB Type A port
③	USB mini-Type B (console) port
④	Console LED
⑤	8 x 10/100/1000 ports
⑥	2 x 1G copper
⑦	SFP module slots
⑧	SYST, STAT, SPEED LED
⑨	RJ-45 Console Port

The three LEDs descriptions

LED	Color/Port Mode	Description
SYST (System LED)	Off	System is not powered on.
	Green	System is operating normally.
	Amber	System is receiving power but is not operating properly.
STAT	Port status	The port status. This is the default mode.
SPEED	Port speed	The port operating speed: 10, 100, or 1000 Mb/s.

·The console LEDs show which console port is in use.
·If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB-mini console port has priority.

The Console LED description.

LED	Color	Description
RJ-45 console port	Green	RJ-45 console port is active. USB-mini console port LED is not active.
RJ-45 console port	Off	Port is not active. USB-mini console port is active.
USB-mini console port	Green	USB-mini console port is active. RJ-45 console port LED is not active.
USB-mini console port	Off	Port is not active. RJ-45 console port is active.

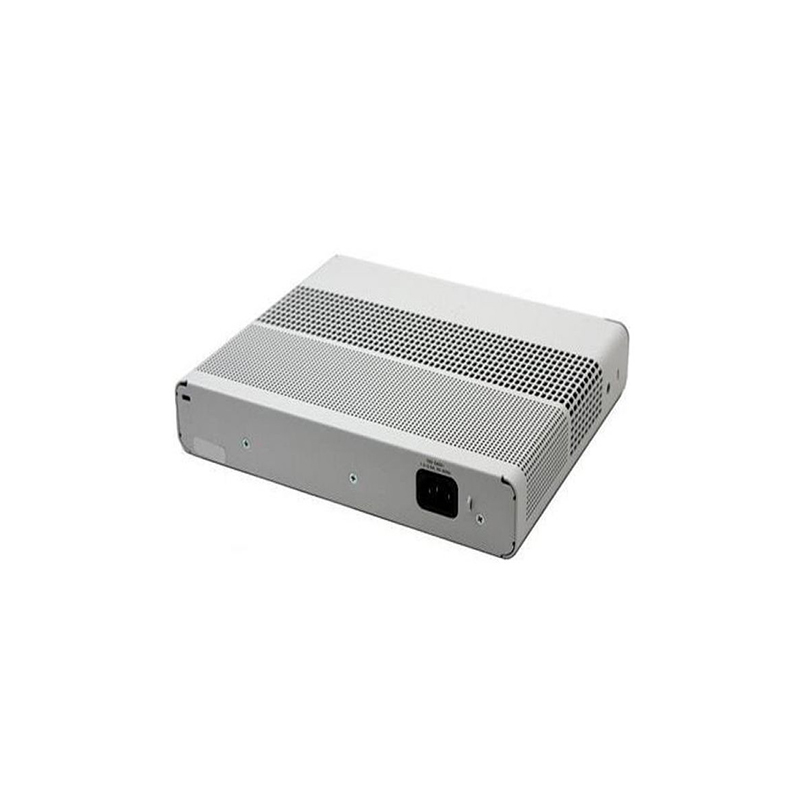

The Back Panel

c2960cx-8tc-l-back-water-datasheet

The Accessories for C2960CX
Modules and Cables:

Part number	Description
CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Compare To Similar Items:

Models	WS-C2960C-8PC-L	WS-C2960CX-8TC-L
Uplinks	2 x 1G copper or 2 x 1G SFP	2 x 1G copper or 2 x 1G SFP
Ports	8 x 10/100 Fast Ethernet	8 x 10/100/1000 Gigabit Ethernet
Feature set	LAN Base	LAN Base
PoE Power	124W	None

Get More Information

Do you have any question about the WS-C2960CX-8TC-L?

Specific Data Sheet:

Model	WS-C2960CX-8TC-L
Ethernet Ports	8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports	N/A
Available PoE Power	N/A
Uplinks	2 x 1G copper plus 2 x 1G SFP
Default Software	LAN Base
Forwarding Bandwidth	12 Gbps
Switching Bandwidth (full-duplex capacity)	24 Gbps
Flash memory	128 MB
Memory DRAM	512 MB
Max VLANs	255
VLAN IDs	4000
Maximum transmission unit (MTU)	Up to 9000 bytes
Jumbo frames	9198 bytes
Forwarding rate 64 Byte Packet	17.9 mpps

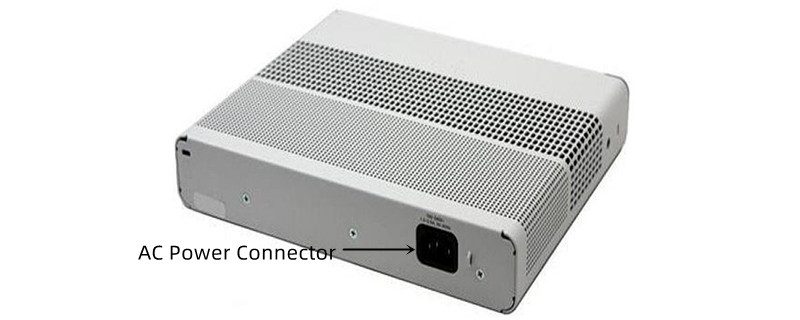

Power connectors	Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit The internal power supply supports input voltages between 100 and 240VAC Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Indicators	Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed
Dimensions (H x W x D)	1.75 x 10.6 x 8.4 in (4.44 x 26.9 x 21.3 cm)
Weight	3.8 lb (1.72 Kg)
Package Weight	9.66 lb (4.38 Kg)
Operating* temperature up to 5000 ft (1524 m)	-5°C to +45°C (+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m)	-5°C to +45°C (+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m)	-25°C to +70°C(-13°F to +158°F)
Operating altitude	Up to 3048 m (Up to 10,000 ft)
Storage altitude	Up to 4000 m (Up to 15,000 ft)
Operating relative humidity	5% to 95% noncondensing
Storage relative humidity	5% to 95% noncondensing
Mean time between failure (MTBF)	756,260
