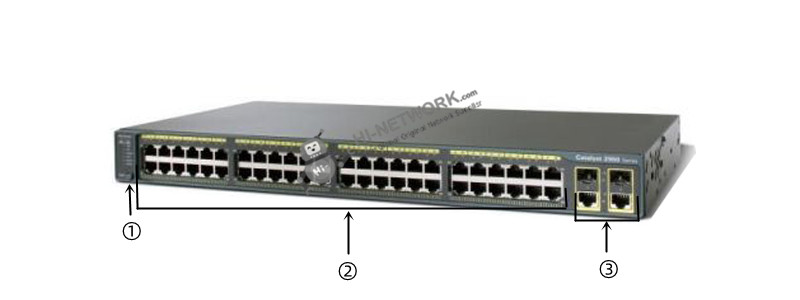

Uplink Interfaces

2 (SFP or 1000BASE-T)

Cisco IOS Software Feature Set

LAN Lite

Available PoE Power

N

Flash memory

64 MB

DRAM

128 MB

Forwarding bandwidth

16 Gbps

Maximum active VLANs

64

VLAN IDs available

4K

Maximum transmission unit (MTU) - L3 packet

9000 bytes

Jumbo frame - Ethernet frame

9018 bytes

Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second

10.1

Dimensions (H x W x D)

1.73 x 17.70 x 9.52 in (4.4 x 45.0 x 24.2 cm)

Weight

8 lb (3.6 Kg)

Package Weight

17.64 lb (8.0 Kg)

Operating temperature up to 5000 ft (1500 m)

23º to 113ºF(-5º to 45ºC)

Operating temperature up to 10,000 ft (3000 m)

23º to 104ºF(-5º to 40ºC)

Short-term exception at sea level*

23º to 131ºF(-5º to 55ºC)

Short-term exception up to 5000 feet (1500 m)*

23º to 122ºF(-5º to 50ºC)

Short-term exception up to 10,000 feet (3000 m)*

23º to 113ºF(-5º to 45ºC)

Short-term exception up to 13,000 feet (4000 m)*

23º  to 104ºF(-5º to 40ºC)

Storage temperature up to 15,000 feet (4573 m)

23º to 158ºF(-25º to 70ºC)

Operating altitude

Up to 10,000 Feet(Up to 3,000 Meters)

Storage altitude

Up to 13,000 Feet(Up to 4,000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Sound Pressure, dBA

Typical, LpAm: 41

Maximum, LpAD: 44

Sound Power, dbA

Typical, LwA: 51

Maximum, LwAD: 54

MTBF in thousands of hours

623

Ethernet Interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs

Per-port status: Link integrity, disabled, activity, speed, and full duplex

System status, Port Status, PoE, RPS, link duplex, and link speed

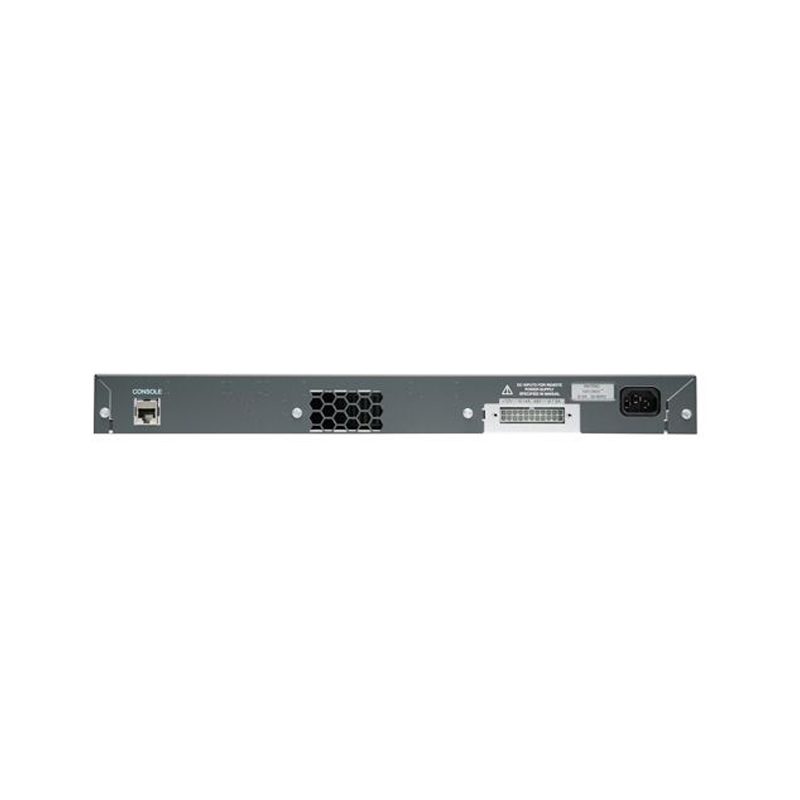

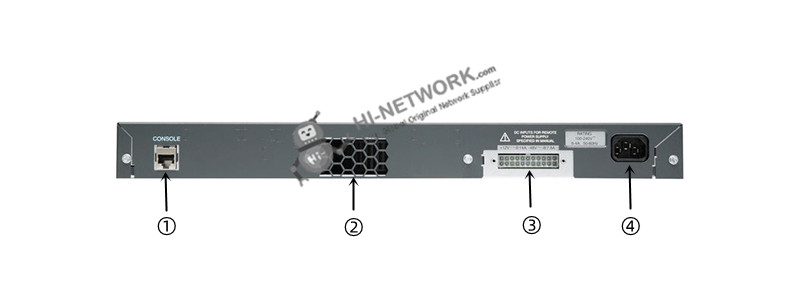

Console

Cisco Catalyst console cables:

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

Power

The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.

Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.

Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle

Management

BRIDGE-MIB

CISCO-CABLE-DIAG-MIB

CISCO-CDP-MIB

CISCO-CLUSTER-MIB

CISCO-CONFIG-COPY-MIB

CISCO-CONFIG-MAN-MIB

CISCO-DHCP-SNOOPING-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-ENVMON-MIB

CISCO-ERR-DISABLE-MIB

CISCO-FLASH-MIB

CISCO-FTP-CLIENT-MIB

CISCO-IGMP-FILTER-MIB

CISCO-IMAGE-MIB

CISCO-IP-STAT-MIB

CISCO-LAG-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MEMORY-POOL-MIB

CISCO-PAGP-MIB

CISCO-PING-MIB

CISCO-POE-EXTENSIONS-MIB

CISCO-PORT-QOS-MIB

CISCO-PORT-SECURITY-MIB

CISCO-PORT-STORM-CONTROL-MIB

CISCO-PRODUCTS-MIB

CISCO-PROCESS-MIB

CISCO-RTTMON-MIB

CISCO-SMI-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TC-MIB

CICSO-TCP-MIB

CISCO-UDLDP-MIB

CISCO-VLAN-IFTABLE

RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

ENTITY-MIB

ETHERLIKE-MIB

IEEE8021-PAE-MIB

IEEE8023-LAG-MIB

IF-MIB

INET-ADDRESS-MIB

OLD-CISCO-CHASSIS-MIB

OLD-CISCO-FLASH-MIB

OLD-CISCO-INTERFACES-MIB

OLD-CISCO-IP-MIB

OLD-CISCO-SYS-MIB

OLD-CISCO-TCP-MIB

OLD-CISCO-TS-MIB

RFC1213-MIB

RMON-MIB

RMON2-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMPv2-MIB

TCP-MIB

UDP-MIB

ePM MIB

Standards

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1p CoS Prioritization

IEEE 802.1Q VLAN

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab (LLDP)

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3ah (100BASE-X single/multimode fiber only)

IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

RMON I and II standards

SNMP v1, v2c, and v3

RFC compliance

RFC 768 - UDP

RFC 783 - TFTP

RFC 791 - IP

RFC 792 - ICMP

RFC 793 - TCP

RFC 826 - ARP

RFC 854 - Telnet

RFC 951 - Bootstrap Protocol (BOOTP)

RFC 959 - FTP

RFC 1112 - IP Multicast and IGMP

RFC 1157 - SNMP v1

RFC 1166 - IP Addresses

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery

RFC 1305 - NTP

RFC 1492 - TACACS+

RFC 1493 - Bridge MIB

RFC 1542 - BOOTP extensions

RFC 1643 - Ethernet Interface MIB

RFC 1757 - RMON

RFC 1901 - SNMP v2C

RFC 1902-1907 - SNMP v2

RFC 1981 - Path MTU Discovery for IPv6

FRC 2068 - HTTP

RFC 2131 - DHCP

RFC 2138 - RADIUS

RFC 2233 - IF MIB v3

RFC 2373 - IPv6 Aggregatable Addrs

RFC 2460 - IPv6

RFC 2461 - IPv6 Neighbor Discovery

RFC 2462 - IPv6 Autoconfiguration

RFC 2463 - ICMP IPv6

RFC 2474 - Differentiated Services (DiffServ) Precedence

RFC 2597 - Assured Forwarding

RFC 2598 - Expedited Forwarding

RFC 2571 - SNMP Management

RFC 3046 - DHCP Relay Agent Information Option

RFC 3376 - IGMP v3

RFC 3580 - 802.1X RADIUS

Voltage (Autoranging)

100 to 240 VAC

Current (Amperes)

4.0 -  2.0

Frequency

50 to 60Hz

Power Rating (kVA)

0.46

DC Input Voltages (RPS Input)

3A at 12V (7A at -52V)

Power Consumption

0% traffic: 51.1

10% traffic: 50.8

100% traffic: 51.4

ATIS weighted average: 50.9

Regulatory Compliance

Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC

Safety

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

EMC - Emissions

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EMC - Immunity

EN55024

CISPR24

EN300386

KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
