| Detail: | Catalyst 2960 Plus 24 10/100 PoE + 2 T/SFP LAN Lite |
| Model: | WS-C2960+24PC-S |
| Condition: | New |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
9.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
Cisco Catalyst 2960-Plus 24 Ports LAN Lite Switches, supporting 24 x 10/100 ports, are designed for branches, conventional office workspaces, and infrastructure networks.
Product Code | WS-C2960+24TC-S |
Enclosure Type | 1RU |
Feature Set | LAN Lite |
Uplink Interfaces | 2 (SFP or 1000BASE-T) |
Ports | 24 x 10/100 Ethernet Interfaces |
Forwarding Performance | 16Gbps |
RAM | 128 MB |
Flash Memory | 64 MB |
Dimensions | 45.0 cm x 24.2 cm x 4.4 cm |
Package Weight | 7.73 Kg |

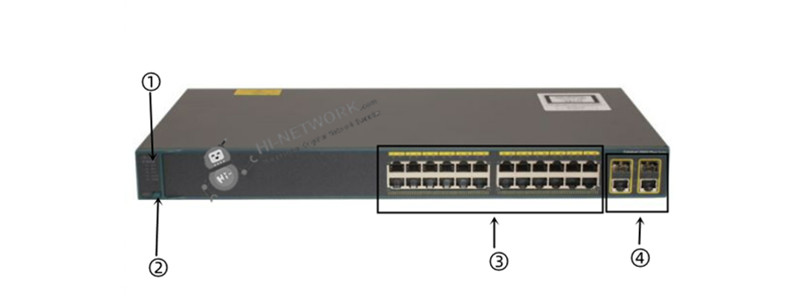

① | Switch LEDs |
② | Mode button |
③ | 24*10/100 ports |
④ | Dual-purpose ports |

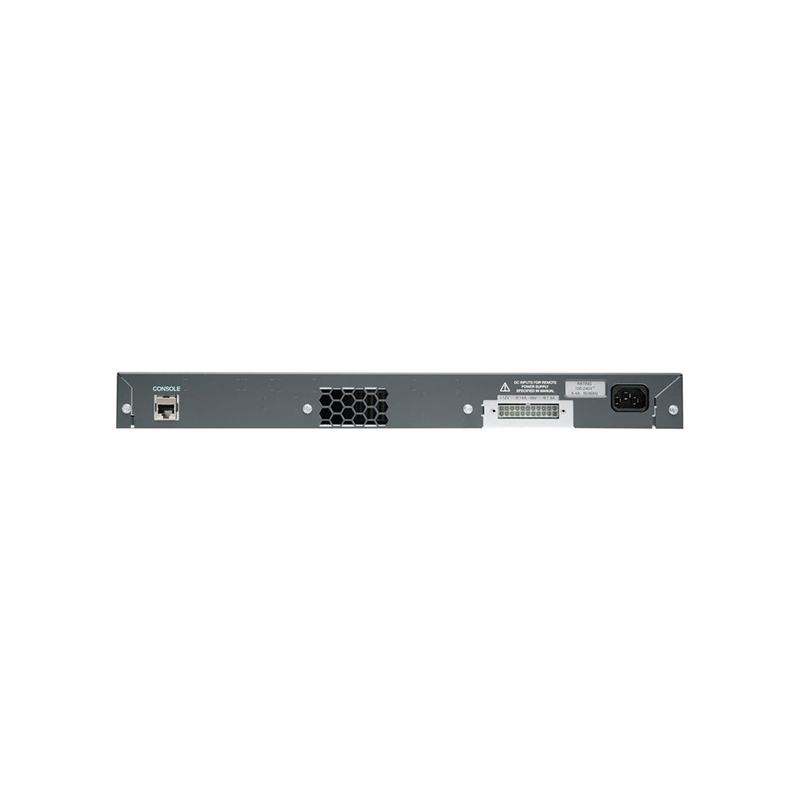

① | RJ-45 console port |
② | Fan exhaust |
③ | RPS connector |
④ | AC power connector |
Model | Description |
Console Cable 6ft with RJ45 and DB9F | |
GE SFP, LC connector LX/LH transceiver | |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
Models | Description |
Cisco Catalyst 2960 Plus 24 port 10/100M + 2 T/SFP LAN Lite | |
Cisco Catalyst 2960 Plus 24 10/100 + 2T/SFP LAN Base | |
Catalyst 2960 Plus 48 ports 10/100 + 2 T/SFP, LAN Lite | |
Catalyst 2960 plus 48 port 10/100 + 2 T/SFP, LAN Base | |
Catalyst 2960 Plus 24 10/100 PoE + 2 T/SFP, LAN Lite |
Do you have any question about the WS-C2960+24TC-S?
Contact us now via [email protected]
Product Number | WS-C2960+24TC-S |
Uplink Interfaces | 2 (SFP or 1000BASE-T) |
Cisco IOS Software Feature Set | LAN Lite |
Available PoE Power | None |
RAM | 128 MB |
Flash Memory | 64 MB |
Forwarding bandwidth | 16 Gbps |
Maximum active VLANs | 64 |
VLAN IDs available | 4K |
Maximum transmission unit (MTU) - L3 packet | 9000 bytes |
Jumbo frame - Ethernet frame | 9018 bytes |
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second | 6.5 |
Width | 17.7 Inches (45.0 cm) |
Depth | 9.52 Inches (24.2 cm) |
Height | 1.73 Inches (4.4 cm) |
Package Weight | 17.04 Pounds (7.73Kg) |
Weight | 8 lb (3.6 Kg) |
Package Weight | 17.04 lb (7.73 Kg) |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF |
Short-term exception at sea level* | 23ºF to 131ºF |
Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF |
Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF |
Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF |
Storage temperature up to 15,000 feet (4573 m) | -13º to 158ºF |
Operating altitude | Up to 10,000 feet |
Storage altitude | Up to 13,000 feet |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Sound Pressure, dBA | Typical, LpAm: 33 Maximum, LpAD: 36 |
Sound Power, dbA | Typical, LwA: 43 Maximum, LwAD: 46 |
MTBF in thousands of hours | 667 |
Ethernet Interfaces | 10BASE-Tports:RJ-45connectors,2-pairCategory3,4,or5unshieldedtwisted-pair(UTP)cabling 100BASE-TXports:RJ-45connectors,2-pairCategory5UTPcabling 1000BASE-Tports:RJ-45connectors,4-pairCategory5UTPcabling 1000BASE-TSFP-basedports:RJ-45connectors,4-pairCategory5UTPcabling |
Indicator LEDs | Per-port status :Link integrity ,disabled ,activity ,speed, and full duplex System status, Port Status ,RPS ,link duplex ,and link speed |
Console | Cisco Catalyst console cables: CAB-CONSOLE-RJ45Consolecable6ft.withRJ-45 |
Power | The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet. The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch. Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle. |
Management | BRIDGE-MIB CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MIB CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-DHCP-SNOOPING-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-POE-EXTENSIONS-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TC-MIB CICSO-TCP-MIB CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB ePM MIB |
Standards | IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 |
RFC compliance | RFC 768 - UDP RFC 783 - TFTP RFC 791 - IP RFC 792 - ICMP RFC 793 - TCP RFC 826 - ARP RFC 854 - Telnet RFC 951 - Bootstrap Protocol (BOOTP) RFC 959 - FTP RFC 1112 - IP Multicast and IGMP RFC 1157 - SNMP v1 RFC 1166 - IP Addresses RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery RFC 1305 - NTP RFC 1492 - TACACS+ RFC 1493 - Bridge MIB RFC 1542 - BOOTP extensions RFC 1643 - Ethernet Interface MIB RFC 1757 - RMON RFC 1901 - SNMP v2C RFC 1902-1907 - SNMP v2 RFC 1981 - Path MTU Discovery for IPv6 FRC 2068 - HTTP RFC 2131 - DHCP RFC 2138 - RADIUS RFC 2233 - IF MIB v3 RFC 2373 - IPv6 Aggregatable Addrs RFC 2460 - IPv6 RFC 2461 - IPv6 Neighbor Discovery RFC 2462 - IPv6 Autoconfiguration RFC 2463 - ICMP IPv6 RFC 2474 - Differentiated Services (DiffServ) Precedence RFC 2597 - Assured Forwarding RFC 2598 - Expedited Forwarding RFC 2571 - SNMP Management RFC 3046 - DHCP Relay Agent Information Option RFC 3376 - IGMP v3 RFC 3580 - 802.1X RADIUS |
Voltage (Autoranging) | 100 to 240 VAC |
Current (Amperes) | 0.4 - 0.2 |
Frequency | 50 to 60Hz |
Power Rating (kVA) | 0.02 |
DC Input Voltages (RPS Input) | 2A at 12V |
Power Consumption | 0% traffic: 18.6 10% traffic: 18.7 100% traffic: 19.1 ATIS weighted average: 18.8 |
Regulatory Compliance | Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC |
Safety | UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 |
EMC - Emissions | 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A |
EMC - Immunity | EN55024 CISPR24 EN300386 KN24 |
Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
