Detail: | Catalyst 2960-X FlexStack Plus Stacking Module |
Model: | C2960X-STACK |
Condition: | Used; In Stock |
Related: | |
Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
1.2
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
C2960X-STACK is a Cisco Catalyst 2960-X and 2960-XR Series Switches FlexStack Plus Stacking Module, which allows these switches stack with each other to offer flexible management.
Stacking Item | C2960-X | C2960-XR |
Bidirectional stack bandwidth | 80Gbps | 80Gbps |
Hot-swappable stack module | Yes | Yes |
Max stack members | 8 | 8 |
Supports FlexStack | Yes | No |
Supports FlexStack-Plus | Yes | Yes |
The 2960-S and 2960-X support a mixed stack of 2960 models. All these 2960 models run the FlexStack protocol, allowing them to be stacked together into a single stack. The exception is the 2960-XR does not stack with either the 2960-X or the 2960-S. The 2960-XR has the IP-Lite feature set, and this is not compatible with the LAN Base feature set on the 2960-X and 2960-XR.
Mixed Stack Combination | 2960-XR IP Lite | 2960-X LAN Base | 2960-S LAN Base |
2960-XR IP Lite | Yes | No | No |
2960-X LAN Base | No | Yes | Yes |
2960-S LAN Base | No | Yes | Yes |

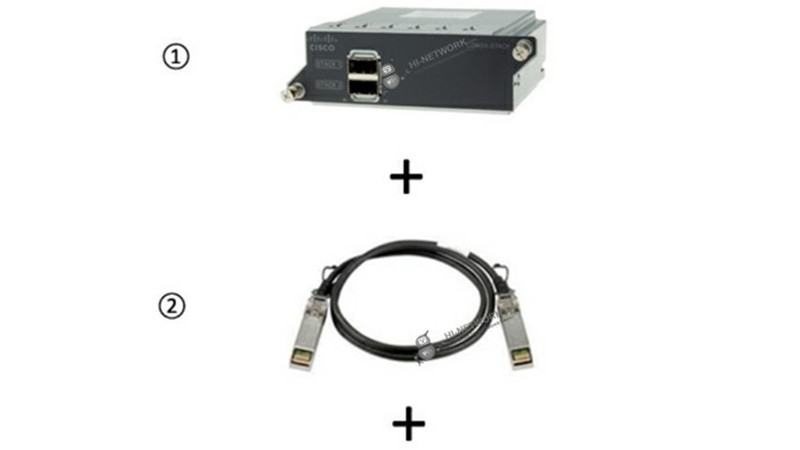

① | C2960X-STACK |
② | STACK CABLE |

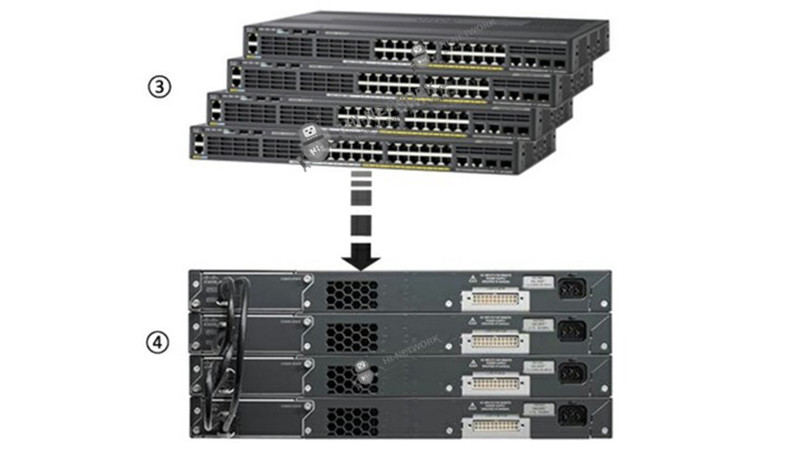

③ | CISCO 2960X and 2960XR Series Stackable Switches |
④ | Switches with Stack cable and C2960X-STACK |
First, C2960X-STACK should be installed in the switches which support to stack

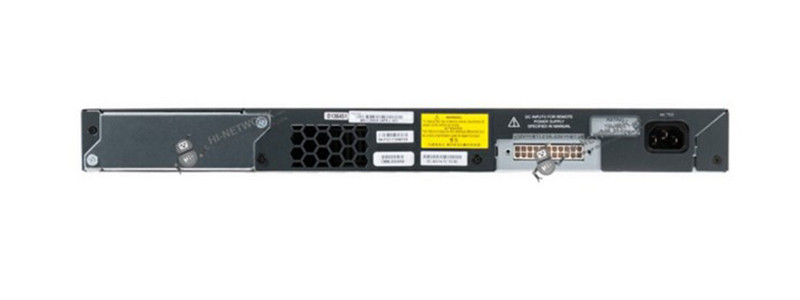

The stack module slot is on the back panel of the switch.

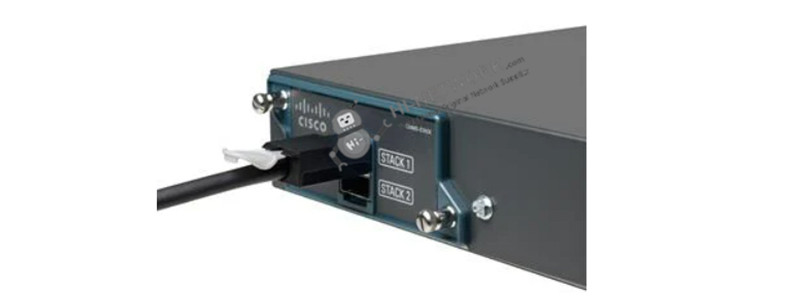

Second, Use the stack cable to connect each switch installed C2960X-STACK.
There are two stack port and stack cable should be inserted into them.
Use stack cable to connect switches one by one through professional ways.
Last, set up the stackable switches and use one of them to be the manager.
Cisco 2960X Switches | Cisco 2960XR Switches |
WS-C2960X-24PSQ-L | |

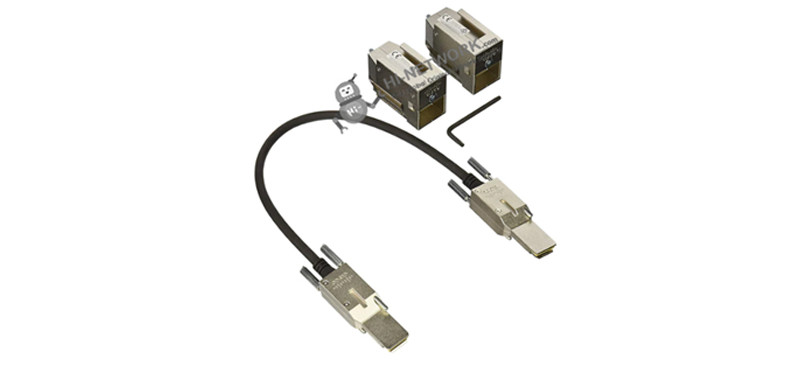

Stack Cables | |
CAB-STK-E-0.5M | |
CAB-STK-E-1M | |
Do you have any question about the C2960X-STACK?
Contact us now via [email protected]
Model | C2960X-STACK |
Designed For | Catalyst 2960-X Series Catalyst 2960-XR Series |
Bidirectional stack bandwidth | C2960-X: 80Gbps C2960-XR: 80Gbps |
Hot-swappable stack module | C2960-X: Yes C2960-XR: Yes |
Max stack members | C2960-X: 8 C2960-XR: 8 |
Supports FlexStack | C2960-X: No C2960-XR: Yes |
Supports FlexStack-Plus | C2960-X: Yes C2960-XR: Yes |
Net Weight | 1.6 Kg |
Package Weight | 2.24 Kg |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
