Model

FTLF1323P1BTR

Description

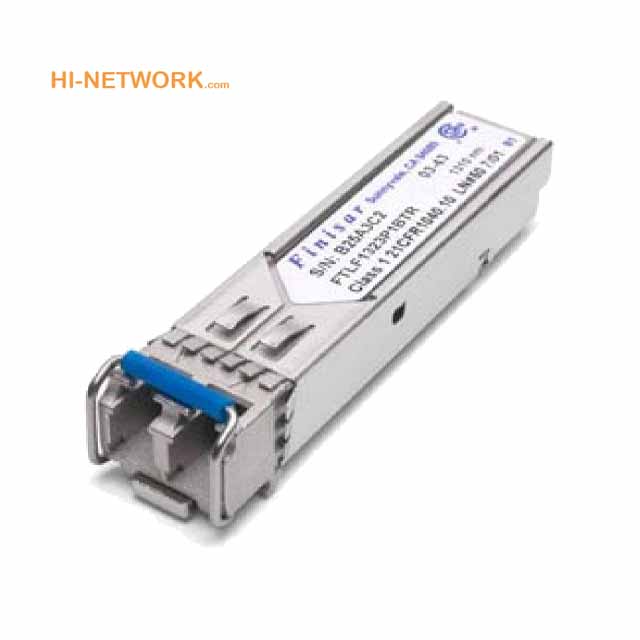

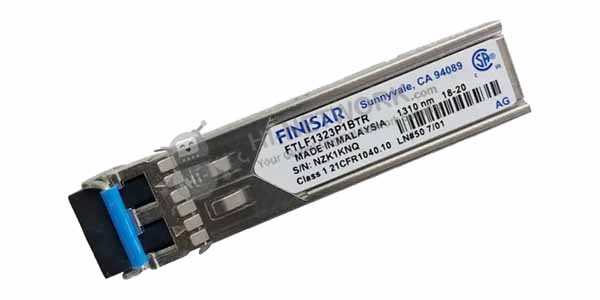

Original Finisar 155M 1310nm 15km Optical transceiver module

Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

19 dB

Maximum Distance:

15km

Supported Data Rate:

100-155Mbps

Supported Applications:

100M Ethernet (100Mbps), STM-1 (155Mbps)

DDM/DOM:

Support

Temperature Range:

Industrial -45°C – +85°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-15 dB

Maximum Transmitting Power:

-8 dB

Receiver Sensitivity:

-34 dBm

Receiver Overload:

-3 dBm

Dispersion:

110-200 ps/nm

Transmitter Type:

FP Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type:

SFP
