| Detail: | Cisco N2K-C2248TP-E-1GE Module 1GE Fabric Extender Expansion |
| Model: | N2K-C2248TP-1GE |
| Condition: | Used |
| Related: | |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
19.0
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

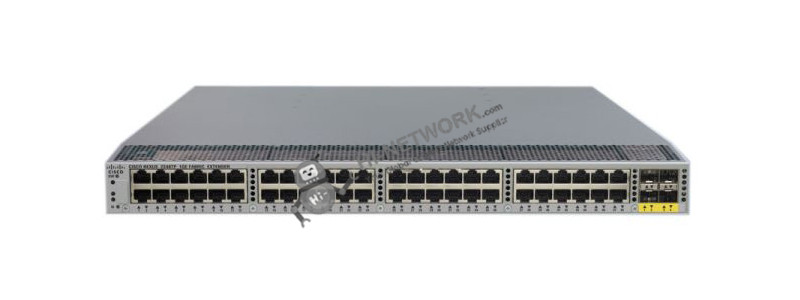

Cisco N2K-C2248TP-E-1GE Module 1GE Fabric Extender Expansion.
Product Code | N2K-C2248TP-1GE |
Fabric extender host interfaces | 48 |
Fabric extender host interface type | 100BASE-T/1000BASE-T ports |
Fabric extender fabric interfaces | 4 x 10 Gigabit Ethernet fabric interfaces (SFP+) |
MAC address table | 8000 entries |
Supported data transfer rates | 10/100/1000 Mbps |
Switching capacity | 176 Gbit/s |
Compatible products | Nexus 5000 |
Dimensions (H x W x D) | 4.37 x 43.94 x 44.96 cm |
Net Weight | 8.0 Kg |
Do you have any question about the N2K-C2248TP-1GE?
Contact us now viainfo@hi-network.
Type | Cisco Nexus C2248TP-1GE |
Number of fans | 1 fan(s) |
Safety | UL 60950-1, CAN/CSA-C22.2, IEC 60950-1AS/NZS |
Certification | CE, 47CFR, AS/NZS CISPR, EN, VCCI, KN22, CNS, RoHS |
Compatible products | Nexus 5000 |
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Yes |
System event log | Yes |
MIB support | ENTITY-MIB, IF-MIB, EXT-MIB, ENTITY-EXT-MIB, ENTITY-FRU-CNTRL-MIB, ENTITY-SNSR-MIB, ETH-EXT-MIB |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Fiber ports quantity | 4 |
Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3u,IEEE 802.3x |
10G support | Yes |
Copper ethernet cabling technology | 1000BASE-T,1000BASE-TX,100BASE-TX |
Full duplex | Yes |
Spanning tree protocol | Yes |
Flow control support | Yes |
Fiber ethernet cabling technology | 10GBASE-LR,10GBASE-SR |
MAC address table | 8000 entries |
Supported data transfer rates | 10/100/1000 Mbps |
Switching capacity | 176 Gbit/s |
Store-and-forward | Yes |
Number of queues | 8 |
Maximum data transfer rate | 40 Gbit/s |
Jumbo frames support | Yes |
Access Control List (ACL) | Yes |
Static port security | Yes |
Multicast support | Yes |
Management protocols | SNMP v1/v2c/v3 |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 2 |
Input current | 1.2 A |
Power consumption (typical) | 110 W |
Power over Ethernet (PoE) | No |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating altitude | 0 - 3000 m |
Operating temperature (T-T) | 32 - 104 °F |
Relative humidity | 5 - 95% |
Heat dissipation | 403 BTU/h |
Weight | 8 kg |
Weight (imperial) | 8.16 kg (18 lbs) |
Dimensions (W x D x H) (imperial) | 449.6 x 439.4 x 43.7 mm (17.7 x 17.3 x 1.72") |
Power requirements | 100 - 220V |
Input voltage | 90 - 264 V |
Power supply | 400 W |
Input frequency | 50/60 Hz |
Networking features | Gigabit Ethernet |
Connectivity technology | Wired |
Dimensions (WxDxH) | 449.6 x 439.4 x 43.7 mm |
Remote administration | RMON |
Packet transfer speed | 9216 b |
