Sealed New WS-C2960X-24TS-L Cisco Catalyst 24 Ports Gigabit Ethernet Switches

USD

1582 ~~$3755~~ (57.9% OFF)

4.7 4.7/5.0 Reviews Q/A 256 sold/Mon
Detail:	Cisco Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
Model:	WS-C2960X-24TS-L
Condition:	Facotry Sealed New, In Stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 10.7	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New WS-C2960X-24TS-L Cisco Catalyst 24 Ports Gigabit Ethernet Switches

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

Cisco catalyst 2960X-24TS-L LAN Base Layer 2 stackable switch provides enterprise-class access for campus and branch applications.

Quick Specification:

Product Code	WS-C2960X-24TS-L
Enclosure Type	Rack-mountable - 1U
Feature Set	LAN Base
Uplink Interfaces	4 x 1G SFP
Ports	24 x Ethernet 10/100/1000 Gigabit ports
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Bandwidth	108Gbps
Switching Bandwidth	216Gbps
RAM	512MB
Flash Memory	128MB
Dimensions	44.5 cm x 27.9 cm x 4.5 cm
Package Weight	9.19 Kg

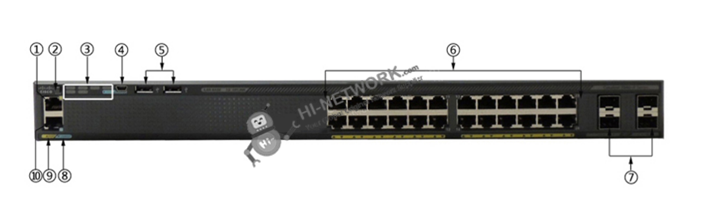

The Front Panel:

front-panel-ws-c2960x-24ps-l

①	Ethernet management port
②	Mode button
③	Switch LEDs
④	USB mini-Type B(console) port
⑤	USB Type A ports
⑥	24*10/100/1000 ports
⑦	SFP module ports
⑧	CONSOLE LED
⑨	MGMT LED
⑩	RJ-45 console port

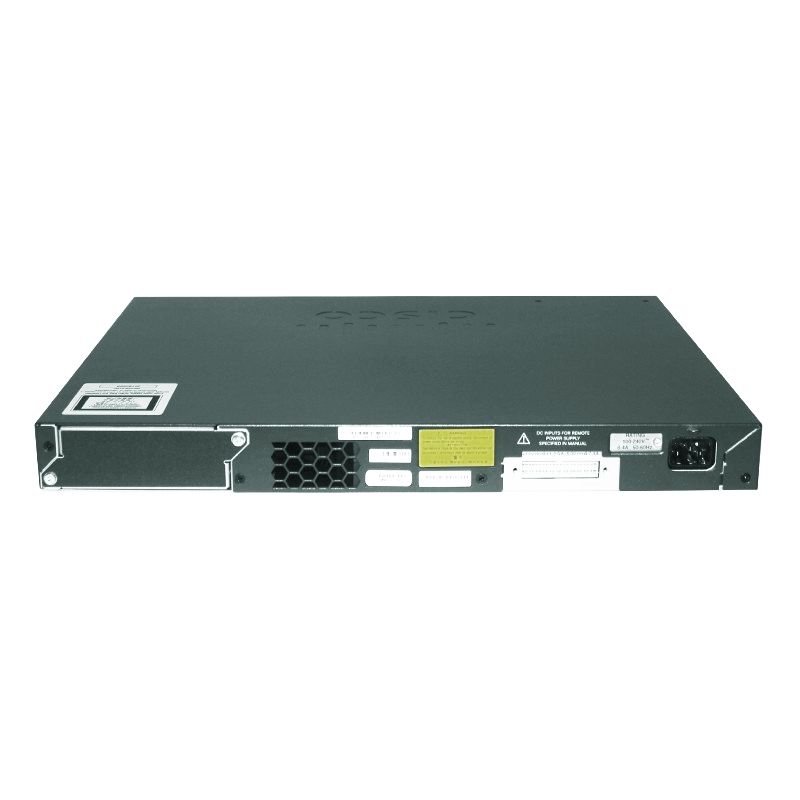

The Back Panel:

back-panel-ws-c2960x-24ps-l

①	FlexStack-Plus module slot and cover
②	Fan Exhaust
③	RPS Connector
④	AC power connector

The Accessories for C2960X

Modules and Cables:

Part number	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	Cisco FlexStack Stacking Cables
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Get More Information

Do you have any question about the WS-C2960X-24TS-L?

Specific Data Sheet:

Model	WS- C2960X-24TS-L
Enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 + 2 x 10G SFP+
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	None
Forwarding bandwidth(Gbps)	108Gbps
Maximum stacking number	8
Stack Bandwidth	80G
Forwarding Performance	71.4Mpps
Switching bandwidth	216Gbps
Maximum active VLANs	1023
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	Optional
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.039KVA
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	14.5 Inches (36.8 cm)
Height	1.75 Inches (4.5 cm)
Package Weight	20.26 Pounds (9.19Kg)
Weight	8.9 Pounds (4.0Kg)
Rack Mounting Kit	optional
MTBF in hours	622,350
Compliant Standards	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3af and IEEE 802.3at IEEE 802.3ah (100BASE-X single/multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 IEEE 802.3az IEEE 802.1ax
System software / license
System software	IOS LAN BASE
License	NERGY-MGT-100-K9, EW-DO-100-DE
Features	RPS Support Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast port CoS Trust and Override Scheduling Priority Queuing Configure CoS Priority Queues Weighted Tail Drop DSCP transparency
Network security	SSH, SSL and SCP RADIUS and TACACS+ SNMPv3 crypto 802.1x 802.1x Accounting / MIB 802.1x w/ portsecurity 802.1x w/Voice VLAN 802.1x Guest VLAN 802.1x VLAN assignment 802.1x MAC-Auth Bypass BPDU/Root Guard Port Security Private VALN Edge Storm Control Block unknown unicast andmulticast IGMP Snooping IGMP Filter/Throttle
Management and Troubleshooting	Auto-MDOX TDR UDLD IP SLA Responder layer 2 / IP Traceroute SPAN RSPAN Express Setup Device Manager Cisco Network Assistant Smartports + Advisor Troubleshooting Advisor Drag-and-drop Cisco IOS Upgrade IP Address DHCP Autoinstall with saved configuration Configuration Replace DHCP Auto Image Upgrade DHCP Port Based Allocation Error Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF
Short-term exception at sea level*	23ºF to 131ºF
Short-term exception up to 5000 feet (1500 m)*	23ºF to 122ºF
Short-term exception up to 10,000 feet (3000 m)*	23ºF to 113ºF
Short-term exception up to 13,000 feet (4000 m)*	23º to 104ºF
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF
Operating altitude	Up to 10,000 feet
Storage altitude	Up to 13,000 feet
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
