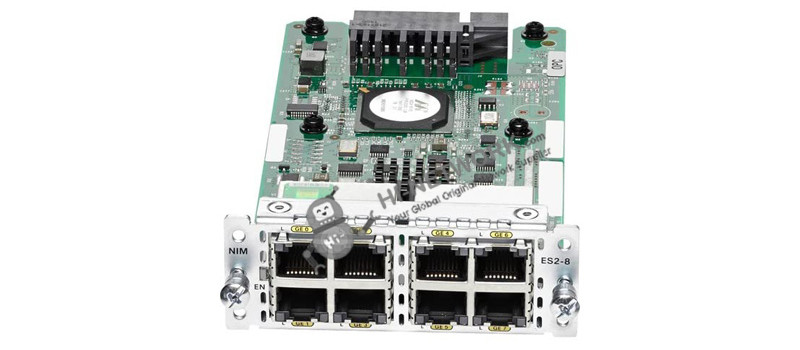

Detail: | Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM |
Model: | NIM-ES2-8 |
Condition: | Factory Sealed New, In stock |
Related: | |
Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
1.9
|
2-7 Days
US$
|
Payment: |
More
|
(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
The 8-port Cisco® Gigabit Ethernet LAN Switch Network Interface Module (NIMs) NIM-ES2-8 can reduce your company's total cost of ownership (TCO) by integrating Gigabit Ethernet switch ports within Cisco 4000 Series Integrated Services Routers (ISRs). These low-density Gigabit Ethernet switches offer small to medium-sized businesses and enterprise branch offices a combination of switching and routing integrated into a single device.
Product Code | NIM-ES2-8 |
Product Description | 8-Port Layer 2 Gigabit Ethernet Switch Module NIM |
Form Factor | Single-wide NIM form factor |
Dimensions (H x W x D) | 0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm) |
Weight | 108g (0.24 lb) |
Product number | Model | Description |
Cisco ISR 4221 (2GE,2NIM,4G FLASH,4G DRAM,IPB) | 35Mbps-75Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM | |
Cisco ISR 4221 SEC Bundle with SEC lic | 35Mbps-75Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, SEC Bundle with SEC lic | |
Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IP Base) | 50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC | |
Cisco ISR 4331 (2GE,2NIM,1SM,4G FLASH,4G DRAM,IP Base) | 100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC | |
Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base) | 200Mbps-400Mbps system throughtput, 2 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC | |
Cisco ISR 4431 (4GE,3NIM,8G FLASH,4G DRAM,IP Base) | 500Mbps-1Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs |
Product Number | NIM-ES2-8-P | |
Product Description | 8-Port Layer 2 Gigabit Ethernet Switch Module NIM | 8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM |
Supported Devices | Cisco 4000 Series Integrated Services Router | Cisco 4000 Series Integrated Services Router |
Dimensions (H x W x D) | 0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm) | 0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm) |
Weight | 108g (0.24 lb) | 149g (0.33 lb) |
Do you have any question about the NIM-ES2-8?
Contact us now via [email protected]
Product Number | NIM-ES2-8 | |
Product Description | 8-Port Layer 2 Gigabit Ethernet Switch Module NIM | |
Form Factor | Single-wide NIM form factor | |
Dimensions (H x W x D) | 0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm) | |
Weight | 108g (0.24 lb) | |
IEEE protocols | ● Gigabit Ethernet: IEEE 802.3 and 10BASE-T ● Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX ● IEEE 802.1d Spanning Tree Protocol ● IEEE 802.1p CoS for Traffic Prioritization ● IEEE 802.1q VLAN ● IEEE 802.1X Security ● IEEE 802.3x Full Duplex ● IEEE 802.3af Power over Gigabit Ethernet Standard | |
RFC | RFC 2284, PPP Extensible Authentication Protocol (EAP) | |
MIBs | ● RFC 1213 ● IF MIB ● RFC 2037 ENTITY MIB ● CISCO-CDP-MIB ● CISCO-IMAGE-MIB ● CISCO-FLASH-MIB ● OLD-CISCO-CHASSIS-MIB ● CISCO-VTP-MIB ● CISCO-HSRP-MIB ● OLD-CISCO-TS-MIB ● CISCO-ENTITY-ASSET-MIB ● CISCO-ENTITY-FRU-CONTROL-MIB ● BRIDGE MIB (RFC 1493) | ● CISCO-VLAN-MEMBERSHIP-MIB ● CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB ● RMON1-MIB ● PIM-MIB ● CISCO-STP-EXTENSIONS-MIB ● OSPF MIB (RFC 1253) ● IPMROUTE-MIB ● CISCO-MEMORY-POOL-MIB ● ETHER-LIKE-MIB (RFC 1643) ● CISCO-ENTITY-FRU-CONTROL-MIB.my ● CISCO-RTTMON-MIB ● CISCO-PROCESS-MIB ● CISCO-COPS-CLIENT-MIB |
Manageability | ● SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management. ● An embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis. ● A SPAN port can mirror traffic from one or many ports to another port for monitoring all eight RMON groups with an RMON probe or network analyzer. ● Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location. ● Two LEDs per port provide convenient visual indication of the port link and PoE status. ● Crash information support enables a switch to generate a crash file for improved troubleshooting. ● Show-interface capabilities provide information about the configuration capabilities of any interface. | |
Connectors and cabling | ● 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling ● 100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling ● 1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling | |
LED indicators | ● Link status LED: One LED per port for indicating link status ● PoE LED: One LED per port system for PoE status indication | |
Internal power supply | Optional PoE system power supply available for all Cisco 4000 Series routers | |
Internal redundant power supply | For the Cisco 4431 and 4451 routers only | |
DC power support | ● DC system power input available on the Cisco 4351, 4431, and 4451 routers ● PoE option not available with DC system power input | |
Software support | Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image | |
Operating temperature | 32° to 104°F (0° to 40°C) | |
Operating humidity | 10 to 90 percent, noncondensing | |
Nonoperating temperature | -4° to 149°F (-20° to 65°C) | |
Operating altitude | 15,000 ft (4,570m) | |
Regulatory compliance, safety, and EMC | When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details. |
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
