Sealed New NIM-2FXS/4FXO 2-port Cisco 4000 voice card

USD

620 ~~$1610~~ (61.5% OFF)

4.8 4.8/5.0 Reviews Q/A 2 sold/Mon
Detail:	Cisco Analog voice network interface card NIM-2FXS/4FXO
Model:	NIM-2FXS/4FXO
Condition:	Factory Sealed New, In stock
Related:
Warranty:	1 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 2.4	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New NIM-2FXS/4FXO 2-port Cisco 4000 voice card

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The 2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Modulee NIM-2FXS/4FXO is supporting for the Cisco 4000 ISR Series. The Cisco® 4000 Series Integrated Services Routers (ISRs) host the Cisco network interface modules (NIMs), which have evolved from the enhanced high-speed WAN interface card (EHWIC), increasing port density and module capability. Up to three integrated NIM slots on the 4000 Series allow for flexible configurations. The NIMs support online insertion and removal (OIR), reducing the downtime required for new or replacement modules.

Quick Specification

Product Number	NIM-2FXS/4FXO
Product Description	2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Module
Number of Ports	6
Cisco IOS Release	XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.52 lb (236 g)

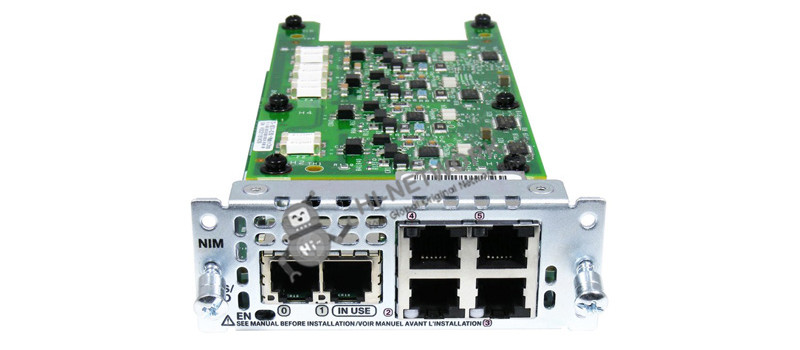

The Front Panel:

nim-2fxs/4fxo-datasheet

The Accessories for NIM-2FXS/4FXO

Supported Devices:

Product number	Model	Description
Cisco ISR4321/K9	Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IP Base)	50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC
Cisco ISR4331/K9	Cisco ISR 4331 (2GE,2NIM,1SM,4G FLASH,4G DRAM,IP Base)	100Mbps-300Mbps system throughtput, 2 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC
Cisco ISR4351/K9	Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base)	200Mbps-400Mbps system throughtput, 2 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC
Cisco ISR4431/K9	Cisco ISR 4431 (4GE,3NIM,8G FLASH,4G DRAM,IP Base)	500Mbps-1Gbps system throughtput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs

Compare to Similar Items

Product Number	NIM-2FXS/4FXO	NIM-2FXS
Product Description	2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Module	2-Port Network Interface Module - FXS, FXS-E and DID
Number of Ports	6	2
Cisco IOS Release	XE3.14.3, XE3.15.1, XE3.16 and above	XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.52 lb (236 g)	0.42 lb (191 g)

Get More Information

Do you have any question about theNIM-2FXS/4FXO?

Specific Data Sheet:

Product Number	NIM-2FXS/4FXO
Product Description	2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Module
Number of Ports	6
Cisco IOS Release	XE3.14.3, XE3.15.1, XE3.16 and above
Weight	0.52 lb (236 g)
Telnet or console	Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface.
Simple Network Management Protocol (SNMP)	● Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user ● Standard MIB (MIB II) ● Cisco Integrated DSU/CSU MIB ● RFC 1406 T1 MIB, including Alarm Detection and Reporting
SNMP traps	Generated in response to alarms
