N3K-C3548P-10GX
  • N3K-C3548P-10GX

Sealed New N3K-C3548P-10GX Cisco Nexus 48 10G SFP+ Switch

12723 $28573 (55% OFF )
4.8
4.8/5.0
Q/A
25 Sold/ Mon
Detail: Nexus 3548-X Switch 48 SFP+ ports, Enhanced
Model: N3K-C3548P-10GX
Condition: Facotry Sealed New, In Stock
Related:
Warranty:
3 Years - Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
21
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
Follow us:
Tags
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Sealed New N3K-C3548P-10GX  Cisco Nexus 48 10G SFP Plus Switch

(Note:  Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was  changed accordingly.  So Our Products Service will contact you after order if meet such special condition.)

The Cisco Nexus 3548P-10GX (N3K-C3548P-10GX) is 1 rack unit (RU) switch with 48 fixed 1- and 10-Gigabit Ethernet small form-factor pluggable (SFP+) ports, 1 fixed 10/100/1000 management port, 1 console port, and 2 USB ports. This switch supports both port-side exhaust and port-side intake airflow schemes. It requires one AC or DC power supply for operations, but it can have a second power supply for redundancy.


Quick Specification:


Product Code

N3K-C3548P-10GX

Enclosure Type

1 RU

Switching Capacity

960-Gbps

Forwarding Rate

720 Mpps

Configurable Maximum Transmission Units (MTUs)

Up to 9216 bytes (jumbo frames)

Ports

48 x fixed SFP+ ports (1 or 10 Gbps)

1 x 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type

1 x 10/100/1000-Mbps management port

1 x RS-232 serial console port

2 x USB ports

Number of power supplies

2

Typical operating power

112W

Dimensions (H x W x D)

4.36 x 43.9 x 46.7 cm

Net Weight

7.9 Kg

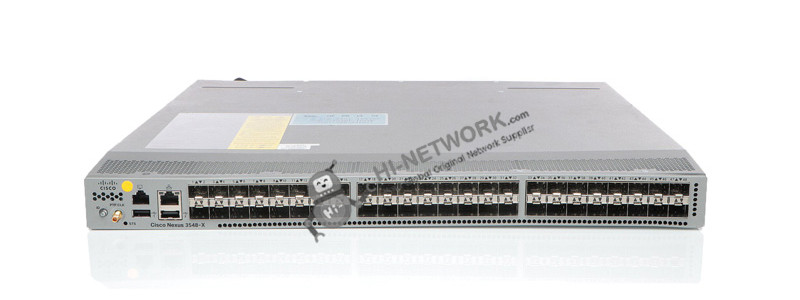

The Front Panel:


n3k-c3548p-10gx-datasheet




The Accessories for N3K-C3548P-10GX

Supported Accessories:


Models

Description

N3548-ALGK9=

Nexus 3500 Algo Boost License Spare

N3548-LAN1K9=

Nexus 3548 Layer 3 LAN Enterprise License Spare

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

SFP-10G-SR

10GBASE-SR SFP Module


Compare To Similar Items


Product Code

N3K-C3548P-10G

N3K-C3548P-10GX

Enclosure Type

1 RU

1 RU

Switching Capacity

960-Gbps

960-Gbps

Forwarding Rate

720 Mpps

720 Mpps

Ports

48 x fixed SFP+ ports (1 or 10 Gbps)

1 x 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*

2 × 10/100/1000-Mbps management ports

1 x RS-232 serial console port

1 x USB port

48 x fixed SFP+ ports (1 or 10 Gbps)

1 x 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type

1 x 10/100/1000-Mbps management port

1 x RS-232 serial console port

2 x USB ports


Get More Information

Do you have any question about the N3K-C3058P-10GX?

Contact us now via [email protected]


Specific Data Sheet:


Physical

●  48 fixed SFP+ ports (1 or 10 Gbps)

●  Dual redundant hot-swappable power supplies

●  Four individual redundant hot-swappable fans

●  One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*

●  One 10/100/1000-Mbps management port

●  One RS-232 serial console port

●  Two USB ports

●  Locator LED

●  Locator LED button

Performance

●  960-Gbps switching capacity

●  Forwarding rate of 720 mpps

●  Line-rate traffic throughput (both Layer 2 and 3) on all ports

●  Configurable MTUs of up to 9216 bytes (jumbo frames)

Typical operating power

●  112W

Maximum power

●  213W

Typical heat dissipation

●  383 BTUs per hr

Maximum heat dissipation

●  727 BTUs per hr

Hardware tables and scalability

Mode

Normal Mode

Warp Mode

Number of MAC addresses

64,000

8000

Number of IPv4 unicast routes

24,000

4000

Number of IPv4 hosts

64,000

8000

Number of IPv4 multicast routes

8000

8000

Number of VLANS

4096

Number of ACL entries

4096

Number of spanning-tree instances

Rapid Spanning Tree Protocol (RSTP): 512

Multiple Spanning Tree (MST) Protocol: 64

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

6 MB shared among 16 ports; 18 MB total

Boot flash memory

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Power

Number of power supplies

2 (redundant)

Power supply types

●  AC (forward and reversed airflow)

●  DC (forward and reversed airflow)

Input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power supply efficiency

89 to 91% at 220V

Cooling

Forward and reversed airflow schemes

●  Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports)

●  Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)

Four individual, hot-swappable fans (3+1 redundant)

Environment

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

Weight

17.4 lb (7.9 kg)

Operating temperature

32 to 104° F (0 to 40°C)

Storage temperature

-40 to 158° F (-40 to 70°C)

Relative humidity (operating)

●  10 to 85% noncondensing

●  Up to 5 days at maximum (85%) humidity

●  Recommend ASHRAE data center environment

Relative humidity (nonoperating)

5 to 95% noncondensing

Altitude

0 to 10,000 ft (0 to 3000m)

Mean time between failure (MTBF)

317,030 hours

Software Features

Layer 2

●  Layer 2 switch ports and VLAN trunks

●  IEEE 802.1Q VLAN encapsulation

●  Support for up to 4096 VLANs

●  Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)

●  MSTP (IEEE 802.1s): 64 instances

●  Spanning Tree PortFast

●  Spanning Tree Root Guard

●  Spanning Tree Bridge Assurance

●  Cisco EtherChannel technology (up to 24 ports per EtherChannel)

●  LACP: IEEE 802.3ad, IEEE 802.1ax

●  Advanced PortChannel hashing based on Layer 2, 3, and 4 information

●  Jumbo frames on all ports (up to 9216 bytes)

●  Storm control (multicast and broadcast)

●  Link-level flow control (IEEE 802.3x)

●  vPC

Layer 3

●  Layer 3 interfaces: Routed ports on interfaces, switch virtual interfaces (SVIs), PortChannels, and subinterfaces (total: 1024)

●  24-way Equal-Cost Multipath (ECMP)

●  4096 ACL entries

●  Routing protocols: Static, RIPv2, EIGRP, OSPF, and BGP

●  HSRP and VRRP

●  ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs

●  VRF: VRF-Lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF‑aware multicast

●  VRF route leaking

●  Jumbo frame support (up to 9216 bytes)

Multicast

●  Multicast: PIMv2, PIM Sparse Mode (PIM-SM), SSM, and BiDir

●  Bootstrap router (BSR), Auto-RP, and Static RP

●  MSDP and Anycast RP

●  Internet Group Management Protocol (IGMP) Versions 2 and 3

Security

●  Ingress ACLs (standard and extended) on Ethernet

●  Standard and extended Layer 3 to 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), TCP, and User Datagram Protocol (UDP)

●  VLAN-based ACLs (VACLs)

●  Port-based ACLs (PACLs)

●  Named ACLs

●  ACLs on virtual terminals (VTYs)

●  Dynamic Host Configuration Protocol (DHCP) relay

●  Control Plane Policing (CoPP)

Cisco Nexus Data Broker

●  Topology support for tap and SPAN aggregation

●  Traffic load balancing to multiple monitoring tools

●  Time stamping using PTP

●  Packet truncation

●  Traffic filtering based on Layer 1 through Layer 4 header information

●  Traffic replication and forwarding to multiple monitoring tools

●  Robust RBAC

●  Northbound Representational State Transfer (REST) API for all programmability support

Management

●  Power On Auto Provisioning (POAP)

●  Python scripting

●  Switch management using 10/100/1000-Mbps management or console ports

●  CLI-based console to provide detailed out-of-band management

●  In-band switch management

●  Locator and beacon LEDs

●  Configuration rollback

●  SSHv2

●  Telnet

●  AAA

●  AAA with RBAC

●  RADIUS

●  TACACS+

●  Syslog

●  Embedded packet analyzer

●  SNMP v1, v2, and v3

●  Enhanced SNMP MIB support

●  XML (NETCONF) support

●  Remote monitoring (RMON)

●  Advanced Encryption Standard (AES) for management traffic

●  Unified username and passwords across CLI and SNMP

●  Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)

●  Digital certificates for management between switch and RADIUS server

●  Cisco Discovery Protocol Versions 1 and 2

●  RBAC

●  SPAN on physical, PortChannel, and VLAN

●  ERSPAN Versions 2 and 3

●  Ingress and egress packet counters per interface

●  Network Time Protocol (NTP)

●  Cisco OHMS

●  Comprehensive bootup diagnostic tests

●  Cisco Call Home

●  Cisco DCNM

●  Active buffer monitoring

●  PTP (IEEE 1588) boundary clock

Management and Standards Support

MIB support

Generic MIBs

●  SNMPv2-SMI

●  CISCO-SMI

●  SNMPv2-TM

●  SNMPv2-TC

●  IANA-ADDRESS-FAMILY-NUMBERS-MIB

●  IANAifType-MIB

●  IANAiprouteprotocol-MIB

●  HCNUM-TC

●  CISCO-TC

●  SNMPv2-MIB

●  SNMP-COMMUNITY-MIB

●  SNMP-FRAMEWORK-MIB

●  SNMP-NOTIFICATION-MIB

●  SNMP-TARGET-MIB

●  SNMP-USER-BASED-SM-MIB

●  SNMP-VIEW-BASED-ACM-MIB

●  CISCO-SNMP-VACM-EXT-MIB

Ethernet MIBs

●  CISCO-VLAN-MEMBERSHIP-MIB

Configuration MIBs

●  ENTITY-MIB

●  IF-MIB

●  CISCO-ENTITY-EXT-MIB

●  CISCO-ENTITY-FRU-CONTROL-MIB

●  CISCO-ENTITY-SENSOR-MIB

●  CISCO-SYSTEM-MIB

●  CISCO-SYSTEM-EXT-MIB

●  CISCO-IP-IF-MIB

●  CISCO-IF-EXTENSION-MIB

●  CISCO-NTP-MIB

●  CISCO-IMAGE-MIB

●  CISCO-IMAGE-UPGRADE-MIB

Monitoring MIBs

●  NOTIFICATION-LOG-MIB

●  CISCO-SYSLOG-EXT-MIB

●  CISCO-PROCESS-MIB

●  RMON-MIB

●  CISCO-RMON-CONFIG-MIB

●  CISCO-HC-ALARM-MIB

Security MIBs

●  CISCO-AAA-SERVER-MIB

●  CISCO-AAA-SERVER-EXT-MIB

●  CISCO-COMMON-ROLES-MIB

●  CISCO-COMMON-MGMT-MIB

●  CISCO-SECURE-SHELL-MIB

Miscellaneous MIBs

●  CISCO-LICENSE-MGR-MIB

●  CISCO-FEATURE-CONTROL-MIB

●  CISCO-CDP-MIB

●  CISCO-RF-MIB

Layer 3 and Routing MIBs

●  UDP-MIB

●  TCP-MIB

●  OSPF-MIB

●  OSPF-TRAP-MIB

●  BGP4-MIB

●  CISCO-HSRP-MIB

●  PIM-MIB

Standards

●  IEEE 802.1D: Spanning Tree Protocol

●  IEEE 802.1p: CoS Prioritization

●  IEEE 802.1Q: VLAN Tagging

●  IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol

●  IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol

●  IEEE 802.3z: Gigabit Ethernet

●  IEEE 802.3ad: Link Aggregation Control Protocol (LACP)

●  IEEE 802.1ax: Link Aggregation Control Protocol (LACP)

●  IEEE 802.3ae: 10 Gigabit Ethernet

●  IEEE 802.3ba: 40 Gigabit Ethernet

●  IEEE 802.1ab: LLDP

RFC

BGP

●  RFC 1997: BGP CommunitiesAttribute

●  RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option

●  RFC 2439: BGP Route Flap Damping

●  RFC 2519: A Framework for Inter-Domain Route Aggregation

●  RFC 2545: Use of BGPv4 Multiprotocol Extensions

●  RFC 2858: Multiprotocol Extensions for BGPv4

●  RFC 3065: Autonomous System Confederations for BGP

●  RFC 3392: Capabilities Advertisement with BGPv4

●  RFC 4271: BGPv4

●  RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4

●  RFC 4456: BGP Route Reflection

●  RFC 4486: Subcodes for BGP Cease Notification Message

●  RFC 4724: Graceful Restart Mechanism for BGP

●  RFC 4893: BGP Support for Four-Octet AS Number Space

OSPF

●  RFC 2328: OSPFVersion 2

●  8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option

●  RFC 3137: OSPF Stub Router Advertisement

●  RFC 3509: Alternative Implementations of OSPF Area Border Routers

●  RFC 3623: Graceful OSPF Restart

●  RFC 4750: OSPF Version 2 MIB

RIP

●  RFC1724: RIPv2 MIB Extension

●  RFC 2082: RIPv2 MD5 Authentication

●  RFC 2453: RIP Version 2

●  IP Services

●  RFC 768: User Datagram Protocol (UDP)

●  RFC 783: Trivial File Transfer Protocol (TFTP)

●  RFC 791: IP

●  RFC 792: Internet Control Message Protocol (ICMP)

●  RFC 793: TCP

●  RFC 826: ARP

●  RFC 854: Telnet

●  RFC 959: FTP

●  RFC 1027: Proxy ARP

●  RFC 1305: Network Time Protocol (NTP) Version 3

●  RFC 1519: Classless Interdomain Routing (CIDR)

●  RFC 1542: BootP Relay

●  RFC 1591: Domain Name System (DNS) Client

●  RFC 1812: IPv4 Routers

●  RFC 2131: DHCP Helper

●  RFC 2338: VRRP

IP Multicast

●  RFC 2236: InternetGroup Management Protocol, version 2

●  RFC 3376: Internet Group Management Protocol, Version 3

●  RFC 3446: Anycast Rendezvous Point Mechanism Using PIM and MSDP

●  RFC 3569: An Overview of SSM

●  RFC 3618: Multicast Source Discovery Protocol (MSDP)

●  RFC 4601: Protocol Independent Multicast - Sparse Mode (PIM-SM): Protocol Specification (Revised)

●  RFC 4607: Source-Specific Multicast for IP

●  RFC 4610: Anycast-RP using PIM

●  RFC 5015: PIM BiDir

●  RFC 5132: IP Multicast MIB


Customer Reviews

5
4.7
(36 reviews)
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
Posted on 06/14/2024
Verified Buyer
4.9
quality product. It just works and speeds are consistent throughout my network.

Do you have other questions or feedback? You may write here:

*Question:
*Use your name:
*Email:

What is Guaranteed.

After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.


After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.


Service Never Ends.

Hardwares Warrany Time:

Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year

After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.

Resources Downloads

Support and Resources

Related Products

Copyright © 2014-2024 Hi-Network.com | HAILIAN TECHNOLOGY CO., LIMITED | All Rights Reserved.
