Sealed New N3K-C3548P-10G Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports

9650 $24000 (59.8% OFF)
4.9
4.9/5.0
Q/A
3 sold/Mon
Detail: Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports
Model: N3K-C3548P-10G
Condition: Facotry Sealed New, Pre-Order
Related:
Warranty:
3 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
21.0
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

Sealed New N3K-C3548P-10G Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports

(Note:  Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was  changed accordingly.  So Our Products Service will contact you after order if meet such special condition.)

The Cisco Nexus 3548 Switches allow the Cisco Nexus 3548 to operate 48 ports, these fixed switches are compact one-rack-unit (1RU) form-factor 10 Gigabit Ethernet switches that provide line-rate Layer 2 and 3 switching with ultra-low latency. Software licenses run the industry-leading CiscoNX-OS Software operating system, providing customers with comprehensive features and functions that are deployed globally. The Cisco Nexus 3548 contains no physical layer (PHY) chips, allowing low latency and low power consumption.


Quick Specification:



Brand

Cisco

Product Number

N3K-C3548P-10G

Product Description

Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports - Ultra-Low latency - Managed

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

6 MB shared among 16 ports; 18 MB total

Boot flash memory

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

Weight

17.4 lb (7.9 kg)


The Front Panel:


N3K-C3548P-10G-datasheet

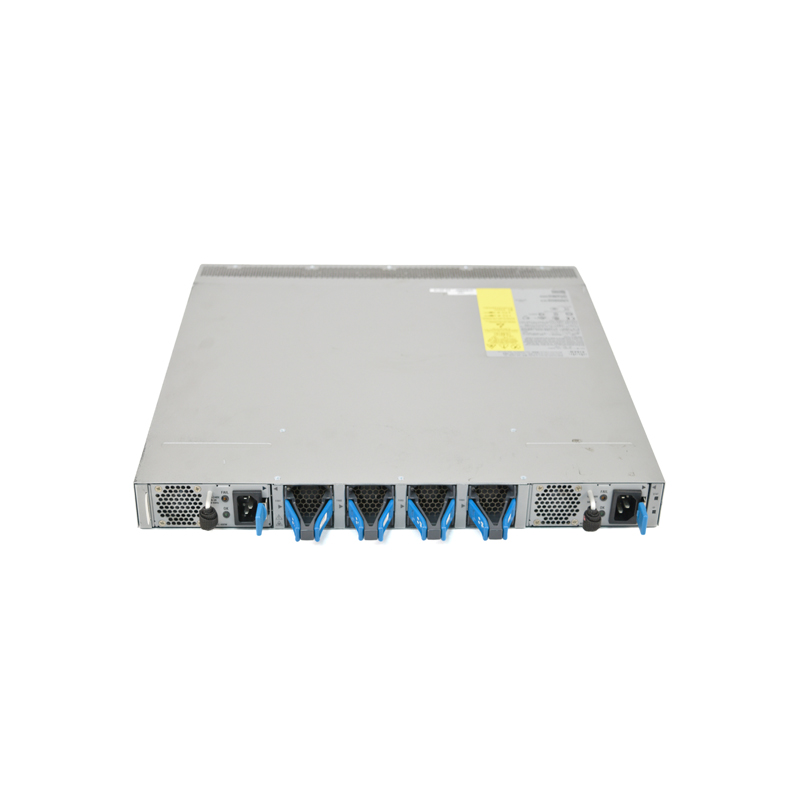

The Back Panel:


N3K-C3548P-10G-back-datasheet


The Accessories For N3K-C3548P-10G

Compare To Similar Items:


Product Code

N3K-C3548P-10G

N3K-C3524P-10G

Product Description

Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports - Ultra-Low latency - Managed

Cisco Nexus N3K-C3524P-10G Switch Layer 2 and layer 3 - 24 x 10G SFP+ active Ethernet ports - Ultra-Low latency - Managed

Typical operating power

●   142W

●   152 watts (W)

Maximum power

●   245W

●   265W

Buffer size

6 MB shared among 16 ports; 18 MB total

6 MB shared among 16 ports; 18 MB total

Boot flash memory

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)



Get More Information

Do you have any question about the N3K-C3548P-10G?

Contact us now via [email protected]


Specific Data Sheet:


Brand

Cisco

Model

N3K-C3548P-10G

Product Description

Cisco Nexus N3K-C3548P-10G Switch Layer 2 and layer 3 - 48 x 10G SFP+ Ethernet ports - Ultra-Low latency - Managed

Physical

●  48 fixed SFP+ ports (1 or 10 Gbps)

●  Dual redundant hot-swappable power supplies

●  Four individual redundant hot-swappable fans

●  One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*

●  Two 10/100/1000-Mbps management ports

●  One RS-232 serial console port

●  One USB port

●  Locator LED

●  Locator LED button

Performance

●  960-Gbps switching capacity

●  Forwarding rate of 720 million packets per second (mpps)

●  Line-rate traffic throughput (both Layer 2 and 3) on all ports

●  Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)

Typical operating power

●  152 watts (W)

Maximum power

●  265W

Typical heat dissipation

●  519 BTUs per hr

Maximum heat dissipation

●  904 BTUs per hr

Mode

Normal Mode

Warp Mode

Number of MAC addresses

64,000

8000

Number of IPv4 unicast routes

24,000

4,000

Number of IPv4 hosts

64,000

8000

Number of IPv4 multicast routes

8000

8000

Number of VLANS

4096

Number of ACL entries

4096

Number of spanning-tree instances

Rapid Spanning Tree Protocol (RSTP): 512

Multiple Spanning Tree (MST) Protocol: 64

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

6 MB shared among 16 ports; 18 MB total

Boot flash memory

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Power

Number of power supplies

2 (redundant)

Power supply types

●  AC (forward and reversed airflow)

●  DC (forward and reversed airflow)

Input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power supply efficiency

89 to 91% at 220V

Cooling

Forward and reversed airflow schemes

●  Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports)

●  Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)

Four individual, hot-swappable fans (3+1 redundant)

Environment

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

Weight

17.4 lb (7.9 kg)

Operating temperature

32 to 104° F (0 to 40°C)

Storage temperature

-40 to 158° F (-40 to 70°C)

Relative humidity (operating)

●  10 to 85% noncondensing

●  Up to 5 days at maximum (85%) humidity

●  Recommend ASHRAE data center environment

Relative humidity (nonoperating)

5 to 95% noncondensing

Altitude

0 to 10,000 ft (0 to 3000m)
