Sealed New N3K-C3264Q Nexus 3264Q 64 QSFP+ ports 2RU switch

USD

7355 ~~$30100~~ (75.6% OFF )

4.8 4.8/5.0 Reviews Q/A 2 Sold/ Mon
Detail:	Nexus 3264Q, 64 QSFP+ ports, 2RU switch
Model:	N3K-C3264Q
Condition:	Facotry Sealed New, In Stock
Related:
Warranty:	3 Years - Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 21	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New N3K-C3264Q Nexus 3264Q 64 QSFP+ ports 2RU switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

N3K-C3264Q is the Nexus 3264Q, 64 QSFP+ ports, 2RU switch. The Cisco Nexus 3264Q Switch is a Low Latency, ultra-high-density, power-efficient, 40-Gbps switch designed for the data center. This compact, two-rack-unit (2RU) model offers wire-rate Layer 2 and Layer 3 switching on all ports with latency between 515-700ns. It runs the same modern Cisco NX-OS image that also supports the Cisco Nexus 9000 Series Switches. It provides a comprehensive feature set and simplifies image management. The robust programmability features help enable organizations to run today’s applications while also preparing them for demanding and changing application needs such as big data, cloud services, and virtualization.

Quick Specification:

Model	N3K-C3264Q
Physical	· 2RU fixed form-factor switch · 64 QSFP+ ports; each supports native 40 Gigabit Ethernet. · 2 redundant power supplies · 3+1 redundant fans · Management, console, and USB flash-memory ports
Performance	· 5.12 Tbps switching capacity · Forwarding rate up to 3.8 bpps · Line-rate traffic throughput (both Layer 2 and 3) on all ports · Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)
Physical dimensions (H x W x D)	3.39 x 17.41 x 22.32 in. (88.4 x 442 x 566 mm)
Weight	32.8 lb (14.9 kg)

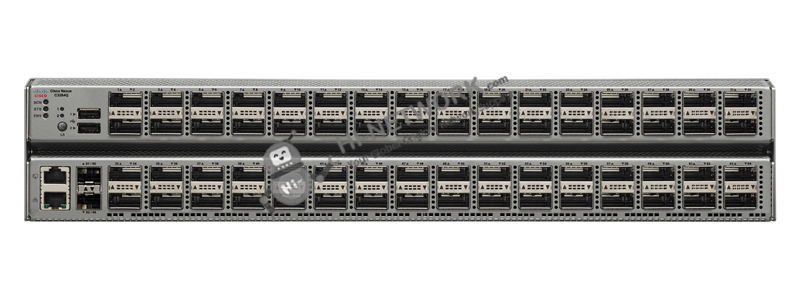

The Front Panel:

N3K-C3264Q-datasheet

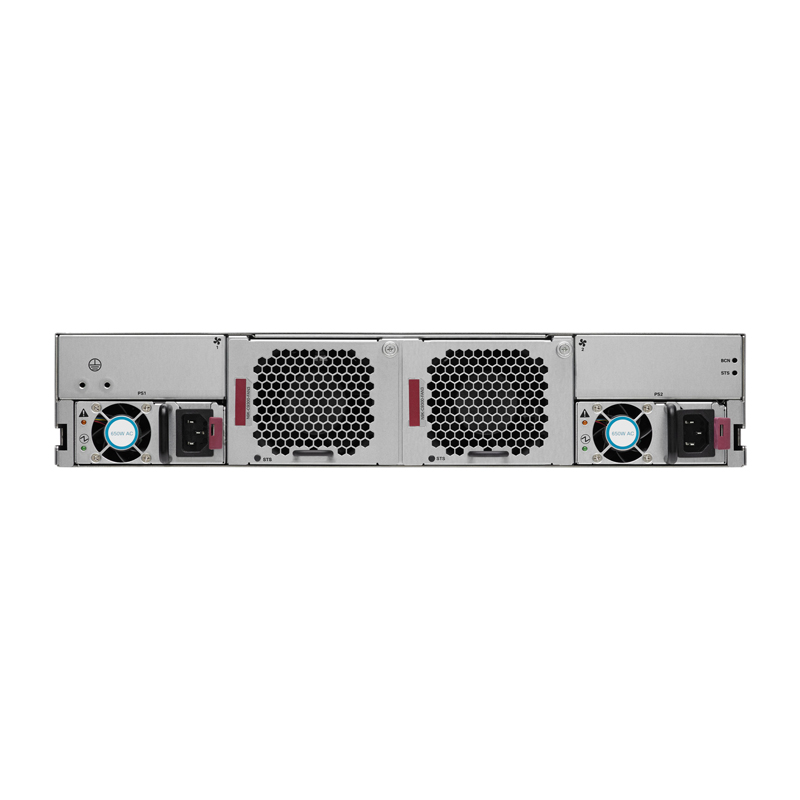

The Back Panel:

N3K-C3264Q-back-datasheet

The Accessories For N3K-C3264Q

Supported Accessories:

Model	Description
QSFP-40G-SR-BD	Cisco QSFP40G BiDi Short-reach Transceiver
QSFP-H40G-AOC1M	QSFP 40G Active Optical Cable 1m
QSFP-H40G-AOC2M	QSFP 40G Active Optical Cable 2m
QSFP-H40G-AOC3M	QSFP 40G Active Optical Cable 3m
QSFP-H40G-AOC5M	QSFP 40G Active Optical Cable 5m
QSFP-H40G-AOC7M	QSFP 40G Active Optical Cable 7m
QSFP-H40G-AOC10M	QSFP 40G Active Optical Cable 10m
QSFP-4X10G-AOC1M	QSFP to 4 x SFP 10Gbps Active Optical Cable 1m
QSFP-4X10G-AOC2M	QSFP to 4 x SFP 10Gbps Active Optical Cable 2m
QSFP-4X10G-AOC3M	QSFP to 4 x SFP 10Gbps Active Optical Cable 3m
QSFP-4X10G-AOC5M	QSFP to 4 x SFP 10Gbps Active Optical Cable 5m
QSFP-4X10G-AOC7M	QSFP to 4 x SFP 10Gbps Active Optical Cable 7m
QSFP-4X10G-AOC10M	QSFP to 4 x SFP 10Gbps Active Optical Cable 10m
QSFP-4SFP10G-CU5M	QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 5m
QSFP-4SFP10G-CU3M	QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 3m
QSFP-4SFP10G-CU1M	QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 1m
QSFP-H40G-CU3M	40GBASE-CR4 passive copper cable, 3m
QSFP-H40G-CU1M	40GBASE-CR4 passive copper cable, 1m
QSFP-40G-SR4	40GBASE-SR4 QSFP transceiver module with MPO connector
QSFP-40G-CSR4	40GBASE-CSR4 QSFP+ transceiver module for MMF, MPO/MTP connector, 300 m reach with OM3 fiber
QSFP-40GE-LR4	40GBASE-LR4 QSFP+ transceiver module for SMF, 4 CWDM lanes in 1310 nm window Muxed inside module, duplex LC connector, 10 km reach
N9K-C9300-FAN3	Nexus 9300 Fan Module, Port side intake, Spare
N9K-PAC-1200W	Nexus 3164 1200W AC Power Supply, Port side intake
L-N3K-LAN1K9=	Nexus 3000 LAN Enterprise License, eDelivery

Compare To Similar Items:

Product Code	N3K-C3548P-XL	N3K-C3264Q
Ports	48 fixed SFP+ ports (1 or 10 Gbps)	64 QSFP+ ports; each supports native 40 Gigabit Ethernet
Physical dimensions (H x W x D)	1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)	3.39 x 17.41 x 22.32 in. (88.4 x 442 x 566 mm)
Weight	17.4 lb (7.9 kg)	32.8 lb (14.9 kg)

Get More Information

Do you have any question about the N3K-C3264Q?

Specific Data Sheet:

Physical	· 2 RU fixed form-factor switch · 64 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes · 2 redundant power supplies · 3+1 redundant fans · Management, console, and USB flash-memory ports
Performance	· 5.12 Tbps switching capacity · Forwarding rate up to 3.8 bpps · Line-rate traffic throughput (both Layer 2 and 3) on all ports · Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability	Number of VLANS	MSTP: 4096
	Number of spanning-tree instances	MSTP: 64 RPVST+: 512
	Number of access control list (ACL) entries	· 7000 ingress · 1000 egress
	Routing table	· Maximum number of longest prefix match (LPM) routes: 128K · Maximum number of IP host entries:72K · Maximum number of MAC address entries: 136K · Maximum Number of L3 Multicast: 64K
	Number of EtherChannels	256 (With VPC)
	Number of ports per EtherChannel	32
	Buffer size	16 MB shared
	System memory	8 GB
	Log Flash	64 GB
Power	Frequency	50 to 60 Hz
	Power supply types	AC
	Typical operating power	285 watts (W)
	Maximum power	715 Watts (W)
	AC PSUs · Input voltage · Frequency · Efficiency	· 200 to 240 VAC · 50 to 60 Hz · 93% at 220V
	Typical heat dissipation	2739 BTU/hr (with SR4 optics at 100% load)
	Maximum heat dissipation	1160 BTU/hr
Cooling	Port-side intake and port-side exhaust options Port-side intake: Yes Port-side exhaust: Post FCS
Dimensions	· Dimensions (height x width x depth)	3.48 x 17.41 x 22.32in. (88.4 x 442 x 566 mm)
Environment	Weight	32.8 lb (14.9 kg)
	Operating temperature	32 to 104°F (0 to 40°C)
	Storage temperature	-40 to 158°F (-40 to 70°C)
	Operating relative humidity	· 10 to 85% noncondensing · Up to 5 days at maximum (85%) humidity Recommend ASHRAE data center environment
	Storage relative humidity	5% to 95% noncondensing
	Altitude	0 to 10,000 ft (0 to 3000m)
