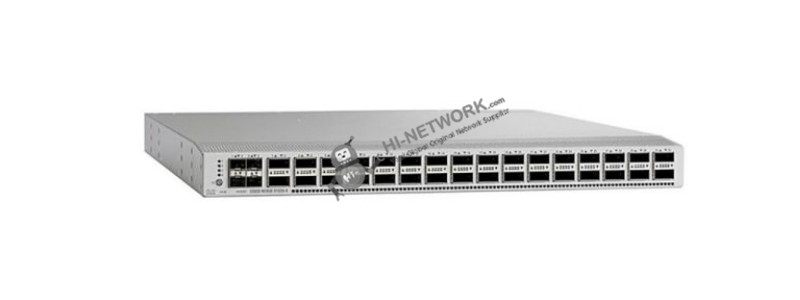

Sealed New N3K-C3232C Cisco Nexus 32 ports 100GE Switch

USD

24462 ~~$34515~~ (29.1% OFF)

4.8 4.8/5.0 Reviews Q/A 80 sold/Mon
Detail:	Nexus 3232C 32 x 100G,1RU switch
Model:	N3K-C3232C
Condition:	Facotry Sealed New, Pre-Order
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 30.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New N3K-C3232C Cisco Nexus 32 ports 100GE Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

N3K-C3232C is the Nexus 3232C 32 x 100G, 1RU switch. The Cisco Nexus 3232C Switch is a low latency, dense, high-performance, power-efficient, 100-Gbps switch designed for the data center. This compact, 1-rack-unit (1RU) model offers wire-rate Layer 2 and 3 switching on all ports with latency of 450ns. It is a member of the Cisco Nexus 3200 platform and runs the industry-leading Cisco NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. The comprehensive programmability features help enable organizations to run today’s applications while also preparing them for demanding and changing application needs such as big data, cloud, and virtualization. The Cisco Nexus 3232C supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.

Quick Specification:

Product Code	N3K-C3232C
Physical	1RU fixed form-factor switch 32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes 2 redundant power supplies 4 redundant (3+1) fans Management, console, and USB flash-memory ports
Performance	6.4-Tbps switching capacity Forwarding rate of up to 3.3 bpps Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.4 in. (4.4 x 43.9 x 56.8 cm)
Weight	22.2 lb (10.06 kg)

The Front Panel:

The Accessories for N3K-C3232C

Modules and Cables:

Models	Description
NXA-FAN-30CFM-F	Nexus 9300 Fan, Forward airflow (Port-side Exhaust)
NXA-FAN-30CFM-B	Nexus 9300 Reverse airflow (Port-side Intake)
NXA-PAC-650W-PI	Nexus 9300 650W AC PS, Port-side Intake
NXA-PAC-650W-PE	Nexus 9300 650W AC PS, Port-side Exhaust
L-N3K-LAN1K9=	Nexus 3000 LAN Enterprise License, eDelivery

Compare To Similar Items:

Product Code	N3K-C3232C	N3K-C3264Q
Ports	32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes	64 QSFP+ ports; each supports native 40 Gigabit Ethernet
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.4 in. (4.4 x 43.9 x 56.8 cm)	3.39 x 17.41 x 22.32 in. (88.4 x 442 x 566 mm)
Weight	22.2 lb (10.06 kg)	32.8 lb (14.9 kg)

Get More Information

Do you have any question about the N3K-C3232C?

Specific Data Sheet:

Type	N3K-C3232C
Physical	1RU fixed form-factor switch 32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes 2 redundant power supplies 4 redundant (3+1) fans Management, console, and USB flash-memory ports
Performance	6.4-Tbps switching capacity Forwarding rate of up to 3.3 bpps Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)
Number of MAC addresses	40,000
Number of VLANS	4096
Number of ACL entries	4096
Number of spanning-tree instances	Rapid Spanning Tree Protocol (RSTP): 512 Multiple Spanning Tree (MST) Protocol: 64
Number of ACL entries	6000 ingress 1000 egress
Routing table	Maximum number of longest-prefix-match (LPM) routes: 128,000 Maximum number of IP host entries:72,000 Maximum number of MAC address entries: 136,000 Maximum number of Layer 3 multicast entries: 64,000
Number of EtherChannels	256 (with vPC)
Latency	~450ns
Number of ports per EtherChannel	32
Buffer size	16 MB shared
System memory	8 GB
Boot flash memory	64 GB
Frequency	50 to 60 Hz
Power-supply types	AC (forward and reverse airflow)
Typical operating power	205 watts (W)
Maximum power	402W
AC PSUs Input voltage Frequency Efficiency	100 to 240 VAC 50 to 60 Hz 89 to 91% at 220V
Power supply efficiency	89 to 91% at 220V
Typical heat dissipation	700 BTU/hr
Maximum heat dissipation	1371 BTU/hr
Forward and reversed airflow schemes Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Redundant fans Hot swappable (must swap within 1 minute)
Measured sound power (maximum) Fan speed: 40% duty cycle Fan speed: 70% duty cycle Fan speed: 100% duty cycle	66.1 dBA 70.6 dBA 76.9 dBA
Dimensions (height x width x depth)	1.72 x 17.3 x 22.4 in. (4.36 x 43.9 x56.8 cm)
Weight	22.2 lb (10.06 kg)
Operating temperature	32 to 104° F (0 to 40°C)
Storage temperature	-40 to 158° F (-40 to 70°C)
Relative humidity (operating)	10 to 85% noncondensing Up to 5 days at maximum (85%) humidity Recommend ASHRAE data center environment
Relative humidity (nonoperating)	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)
