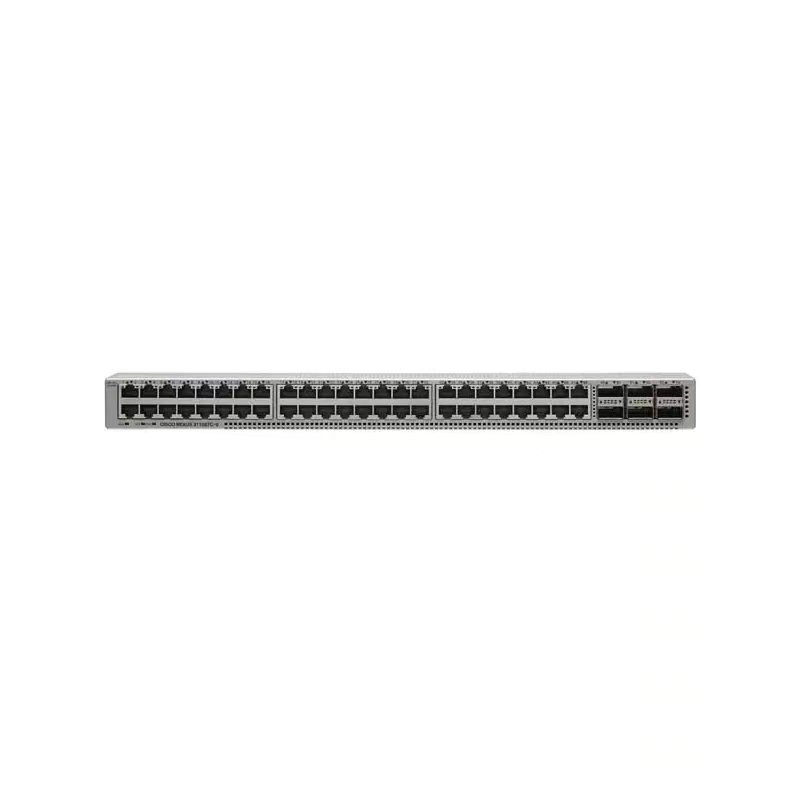

Sealed New N3K-C31108TC-V Cisco Nexus 48 10Gbase-T RJ-45 Switch

USD

13169 ~~$27817~~ (52.7% OFF)

4.9 4.9/5.0 Reviews Q/A 95 sold/Mon
Detail:	Nexus 31108TC-V, 48 10Gbase-T RJ-45 and 6 QSFP28 ports
Model:	N3K-C31108TC-V
Condition:	Facotry Sealed New, Pre-Order
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 25.0	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New N3K-C31108TC-V Cisco Nexus 48 10Gbase-T RJ-45 Switch

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

N3K-C31108TC-V is the Nexus 31108TC-V, 48 10Gbase-T RJ-45 and 6 QSFP28 ports. The Cisco Nexus 3100-V switch platform is the latest addition to the industry’s widely deployed Cisco Nexus 3100 platform. The Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed- configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, High-Performance Computing (HPC), and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/40/100-Gbps connectivity with improved port density and scalability in compact 1-rack-unit (1RU) form factors.

Quick Specification:

Product Code	N3K-C31108TC-V
Physical	1RU fixed form factor Cisco Nexus 31108TC-V 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet Redundant fans (3+1) 2 redundant power supplies Management, console, and USB flash-memory ports
Performance	2.16-Tbps switching capacity and forwarding rate of up to 1.2 bpps for 31108PC-V and 31108TC-V Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Dimension (height x width x depth)	1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
Net Weight	22.0 lb (10 kg)

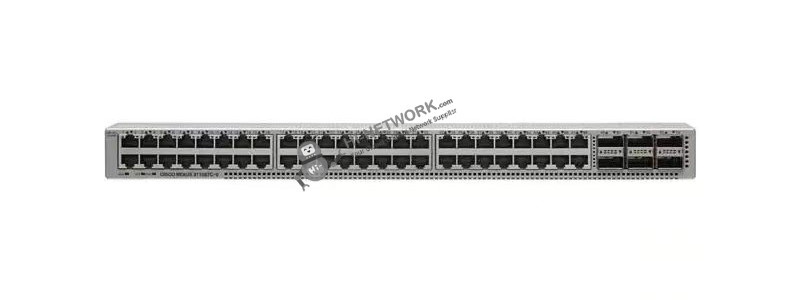

The Front Panel:

Nexus 3100-V platform provides the following main benefits:

● High performance and scalability
The Cisco Nexus 3100-V platform provides wire-rate Layer 2 and 3 switching of up to 2.56 terabits per second (Tbps) and up to 1.4 billion packets per second (bpps) on all ports.
The Cisco Nexus 3100-V platform delivers ultra-low nominal latency (approximately 650 nanoseconds [ns]), which allows customers to implement high performance infrastructure for High-Frequency-Trading (HFT) workloads.
● Line-rate Virtual Extensible LAN (VXLAN) routing
VXLAN is designed to provide the same Ethernet Layer 2 network services as VLAN does today, but with greater extensibility and flexibility.
The Cisco Nexus 3100-V platform offers native line-rate VXLAN routing.
The Border Gateway Protocol (BGP) Ethernet Virtual Private Network (EVPN) control plane provides scalable multitenancy and host mobility (for more information, refer to the document “VXLAN Network with MP-BGP EVPN Control Plane.
● Enhanced buffer for applications
The Cisco Nexus 3100-V platform offers 16 MB of shared buffer space.
In today’s data center, application teams require the network to be flexible and capable of handling the rapid growth of applications. The Cisco Nexus 3100-V platform provides deep shared buffers (16 MB) to absorb bursts of traffic and a wide variety of applications, such as multicast feeds, voice traffic, video traffic, and healthcare applications.
These deep buffers also provide flexibility to expand your network as your needs change. The shared buffers are also instrumental in situations in which one or more servers are consuming most of the bandwidth in highly oversubscribed environments.
● Higher ingress Access Control List (ACL) entries
The Cisco Nexus 3100-V platform offer 16,000 ACL entries and 1000 egress ACL entries.
The increased number of ingress ACL entries can be especially useful in today’s data centers, particularly in virtualized environments.
● High availability Virtual-Port-Channel (vPC) technology provides Layer 2 multipathing through the elimination of Spannin

The Accessories for N3K-C31108TC-V

Modules and Cables:

Models	Description
NXA-FAN-30CFM-F	Nexus 2K/3K single fan, Forward airflow (port side exhaust)
NXA-FAN-30CFM-B	Nexus 2K/3K single fan, Reversed airflow (port side intake)
NXA-PAC-650W-PI	Nexus 9000 650W AC PS, Port-side Intake [Use with Nexus 31108PC-V or 31108TC-V]
NXA-PAC-650W-PE	Nexus 9000 650W AC PS, Port-side Exhaust [Use with Nexus 31108PC-V or 31108TC-V]
NXA-PDC-930W-PE	Nexus 9000 930W DC PS, Port-side Exhaust [Use with Nexus 31108PC-V or 31108TC-V]
NXA-PDC-930W-PI	Nexus 9000 930W AC PS, Port-side Intake [Use with Nexus 31108PC-V or 31108TC-V]
L-N3K-LAN1K9=	Nexus 3000 LAN Enterprise License, eDelivery

Compare To Similar Items:

Product Code	N3K-C3132Q-XL	N3K-C31108TC-V
Ports	32 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes	48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet
Physical dimensions (H x W x D)	1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm)	1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
Weight	21.5 lb (9.3 kg)	22.0 lb (10 kg)

Get More Information

Do you have any question about the N3K-C31108TC-V?

Specific Data Sheet:

Type	N3K-C31108TC-V
Physical	1RU fixed form factor Cisco Nexus 31108TC-V 48 RJ-45 ports support 100 Mbps, 1 Gbps, and 10 Gbps 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each or 100 Gigabit Ethernet Redundant fans (3+1) 2 redundant power supplies Management, console, and USB flash-memory ports
Performance	2.16-Tbps switching capacity and forwarding rate of up to 1.2 bpps for 31108PC-V and 31108TC-V Line-rate traffic throughput (both Layer 2 and 3) on all ports Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
MAC addresses	288,000
Number of VLANS	4096
Spanning-tree instances	RSTP: 512 MSTP: 64
ACL entries	16,,000 ingress 1000 egress
Routing table	16,000 prefixes and 16,000 host entries 8000 multicast routes
Number of EtherChannels	64 (with vPC)
Number of ports per EtherChannel	32
System memory	16 GB
Buffers	16 MB shared
Boot flash memory	64 GB SSD (31108PC-V, 31108TC-V, and 31108TCV-32T)
Number of power supplies	2
Power supply types	AC (forward and reverse airflow) NXA-PAC-650W-PE and NX-PAC-650W-PI (31108 models) DC (forward and reverse airflow) NXA-PDC-930W-PE and NX-PDC-930W-PI (31108 models)
Typical operating power	Cisco Nexus 31108TC-V and 31108TCV-32T: 260W
Maximum power	Cisco Nexus 31108TC-V and 31108TCV-32T: 470W
AC PSUs Input voltage Frequency Efficiency	100 to 240 VAC 50 to 60 Hz 89 to 91% at 220V
DC PSUs Input voltage Maximum current Efficiency	-40 to -72 VDC 33A (400W unit), 78A (930W unit) 85 to 88%
Typical heat dissipation	Cisco Nexus 31108TC-V and 31108TCV-32T: 887 BTU/hr
Maximum heat dissipation	Cisco Nexus 31108TC-V and 31108TCV-32T: 1603 BTU/hr
Cooling	Forward and reversed airflow schemes Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Redundant fans Hot swappable (must swap within 1 minute)
Measured sound power (maximum) Fan speed: 40% duty cycle Fan speed: 60% duty cycle Fan speed: 100% duty cycle	64.9 dBA 69.3 dBA 76.7 dBA
Dimensions (height x width x depth)	1.72 x 17.3 x 22.3 in. (4.4 x 43.9 x 56.6 cm)
Weight	22.0 lb (10 kg)
Operating temperature	32 to 104°F (0 to 40°C)
Storage temperature	-40 to 158°F (-40 to 70°C)
Operating relative humidity	10 to 85% noncondensing Up to 5 days at maximum (85%) humidity Recommend ASHRAE data center environment
Storage relative humidity	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)
