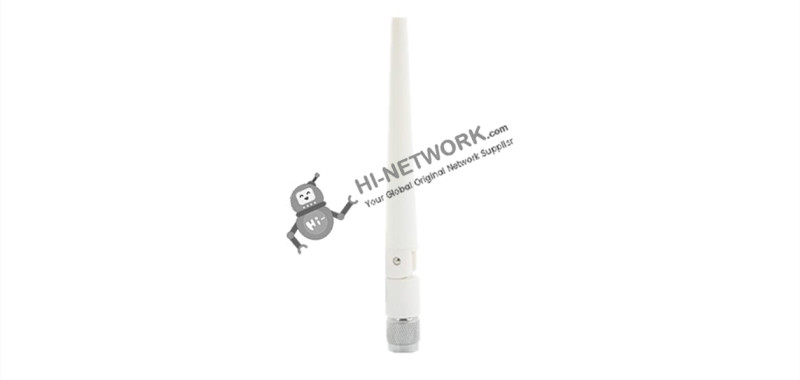

Sealed New Antenna AIR-ANT2422DW-R 2.4 GHz 2.2dBi Swivel Dipole

USD

11 ~~$25~~ (56.0% OFF)

4.8 4.8/5.0 Reviews Q/A 2 sold/Mon
Detail:	2.4 GHz 2.2 dBi Swivel Dipole Antenna White, RP-TNC
Model:	AIR-ANT2422DW-R
Condition:	Factory Sealed New, In stock
Related:
Warranty:	1 Year-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

Sealed New Antenna AIR-ANT2422DW-R 2.4 GHz 2.2dBi Swivel Dipole

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

This document outlines the specifications and description of the 2.2-dBi articulating dipole antenna. This antenna operates in the 2.4- 2.5-GHz band and is designed for use with Cisco Aironet radio products utilizing an RP-TNC connector.

Quick Specification

Antenna type	Dipole
Operating frequency range	2402-2495 MHz
Nominal input impedance	50 Ohms
2:l VSWR bandwidth	2385 - 2515 Mhz
Peak gain	2 dBi
Dimensions	5.5 in. (13 cm)
Weight	1 oz.

Product Details

The Front Panel

air-ant2422dw-r

Installation The Antenna

Caution:This antenna operates in the 2.4-GHz frequency range.

Do not connect it to 5-GHz antenna connectors, which are identified by a blue dot. Connecting this antenna to a 5-GHz connector will degrade radio performance and could damage the radio.
Follow these steps to connect the antenna to an access point.
Step 1 Align the antenna connector with the RP-TNC connector on the access point.

Step 2 Engage the antenna connector threads with the RP-TNC connector.

Step 3 Tighten the antenna hand tight.

Step 4 Adjust the antenna’s articulated mount to the desired position.

Get More Information

Do you have any question about the AIR-ANT2422DW-R?

Specific Data Sheet:

Antenna type	Dipole
Operating frequency range	2402-2495 MHz
Nominal input impedance	50 Ohms
2:l VSWR bandwidth	2385 - 2515 Mhz
Peak gain	2 dBi
Polarization	Linear, vertical
E-Plane 3-dB beamwidth	70o
H-Plane 3-dB beamwidth	Omnidirectional
Dimensions	5.5 in. (13 cm)
Weight	1 oz.
Connector type	RP-TNC plug
Environment	Indoor
Operating temperature range	32oF to 140oF (0oC to 60oC)
