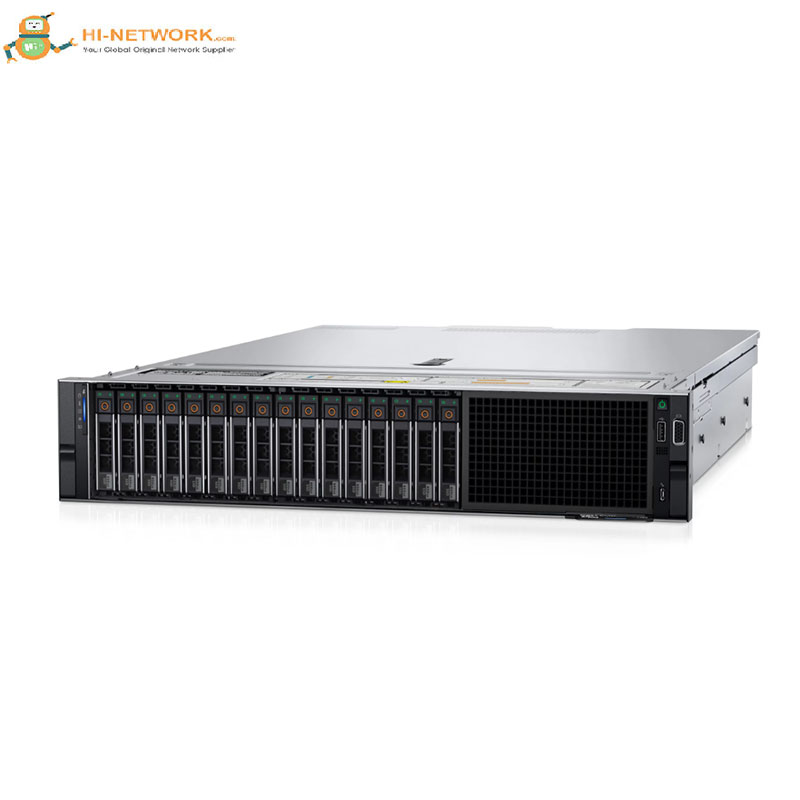

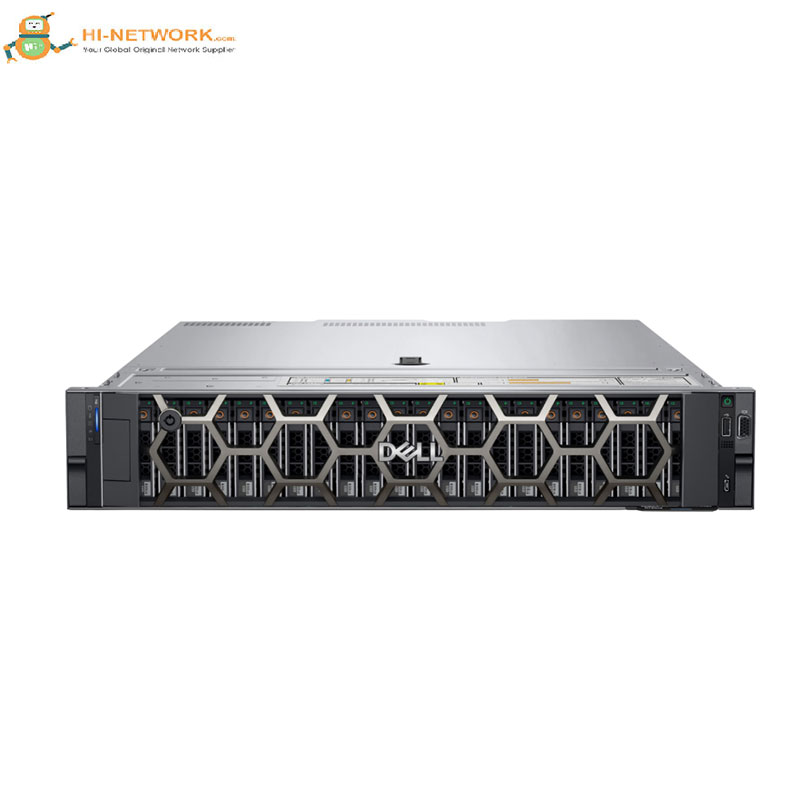

The Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O and storage performance for scale-out.

Purpose-built 2U for growing scale-out solutions

The Dell EMC PowerEdge R750xs with 3rd Generation Intel® Xeon® Scalable processors is designed for virtualization, medium VM density or VDI, and software-defined storage node workloads.

Supports up to 32 cores per CPU, and up to 16x DDR4 RDIMMs at up to 3200 MT/s

Built for fast growing solutions with an optimal footprint and up to 24 drives for SDS deployments

Manage with iDRAC9 Enterprise, OpenManage Enterprise and Plugins, iDRAC Direct, and Quick Sync 2.0

Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premises, edge and cloud environments

>> You can customize Dell EMC PowerEdge R750xs Rack Server

>>Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores

 >>16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s

• Supports registered ECC DDR4 DIMMs only

 >> • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150

• Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB

• External PERC (RAID): PERC H840, HBA355e

 >>Front bays:

• 0 drive bay

• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB

• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
