Register now for better personalized quote!
| Detail: | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic.CUBE25 |
| Model: | ISR4451-X-V/K9 |
| Condition: | Original New; In Stock |
| Related: | Original New ISR4351-V/K9 Cisco ISR Routers 3 x GE ports Voice Bundle Original New ISR4431-V/K9 Cisco ISR Routers 4 x GE ports Voice Bundle Sealed New ISR4321-V/K9 UC Voice Bundle Router 50Mbps-100Mbps Sealed New ISR4331-V/K9 UC Voice Bundle Router 3 WAN |
| Warranty: |
3 Years-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
21.2
|
2-7 Days
US$
|
| Payment: |
More
|
(Note: Cisco discount always changed, we will try most effort to follow it but can not ensure every web price was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router. The Cisco ISR4451-X-V/K9 is the 4451 Voice(V) Bundle.
Product Number | ISR4451-X-V/K9 |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module (SM-X) slot | 2 |
NIM (Network Interface Modules) slots | 3 |
Onboard ISC slot | 1 |

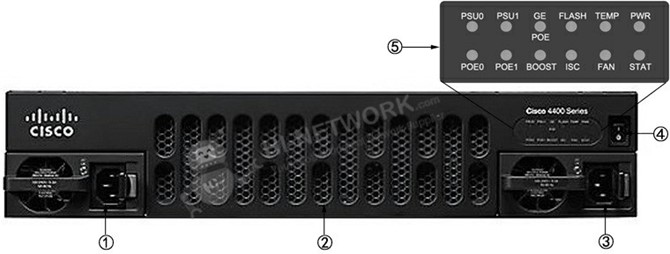

Note:
(1) | AC power supply unit (PSU0) | (4) | Router power On/Off switch |
(2) | Router fan tray | (5) | LEDs |
(3) | AC power supply unit (PSU1) |
· Router fan tray is hidden behind removable bezel.
· LEDs include 12 indicators.
LEDs | Represents | Color | Description |
PSU | Power Supply Unit (P0 and P1) Status | Green | PSU is on and is providing power. |
Amber | PSU is on but with errors or in a failure condition. | ||
Off | Power supply is turned off. | ||
GE POE | Internal PoE Daughter Card Status | Green | PSU is installed and providing power |
Amber | PSU is installed but in a failure condition. | ||
Off | PSU is off. | ||
FLASH | System Flash Status | Blinking Green | Compact flash/eUSB flash is present and currently being accessed. |
TEMP | Temperature Status | Solid green | All temperature sensors in the system are within acceptable range. |
Amber | One or more temperature sensors in the system are outside the acceptable range. | ||
Off | Temperature is not being monitored. | ||
PWR | System Power | Green | System power is on and functioning correctly. |
Green blinking | System power is in the process of shutting down. | ||
Amber | System power is up, but low level initialization failed. | ||
Amber blinking | System power is up, but the system failed to come out of reset. | ||
Off | System power is off. | ||
POE BOOST | Power Over Ethernet Boost Mode | Green | Two PoE power supplies are installed and operating in boost mode. |
Off | This can mean one of the following: · No PoE PSU installed. · One PoE PSU installed. · Two PoE PSUs installed and operating in redundant mode. | ||
ISC | ISC Slot Status | Green | PVDM4 is present and enabled. |
Amber | Initialized with error. | ||
Off | Not present. | ||
FAN | Fan Status | Green | All fans are operating. |
Amber | One fan has stopped working. | ||
Blinking Amber | Two or more fans have stopped working, or the fan tray has been removed. | ||
Off | Fans are not being monitored. | ||
STAT | System Status | Solid green | System operating normally. |
Blinking amber | BIOS/Rommon is booting. | ||
Amber | BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. | ||
Off | System is not out of reset or BIOS image is not loadable. |

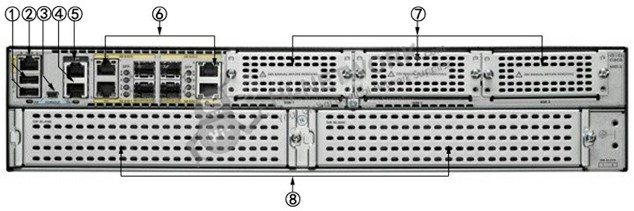

Figure 3 shows the back panel of Cisco ISR4451-X-V/K9.
Note:
(1) | USB Type A port | (5) | Auxiliary port |
(2) | GE management port | (6) | GE Ports |
(3) | USB Type B mini port | (7) | NIM Slots |
(4) | Console port | (8) | SM-X Slot |
· The NIMs support 2 single-wide or 1 double-wide.
· The GE Ports include 4 RJ45 ports and 4 SFP ports.
Table 3 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
Licenses | L-SL-44-APP-K9= | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
NIM-4E/M | Analog voice network interface card (ear and mouth) | |
NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Product Number | ISR4451-X-V/K9 | |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 | Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
Aggregate Throughput | 1 Gbps to 2Gbps | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 | 3 |
RJ-45-based ports | 4 | 3 |
SFP-based ports | 4 | 3 |
NIM slots | 3 | 3 |
Onboard ISC slot | 1 | 1 |
Do you have any question about the Cisco ISR4451-X-V/K9?
Contact us now via [email protected].
Cisco ISR4451-X-V/K9 Specification | |
Product Number | ISR4451-X-V/K9 |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
Default memory DDR3 ECC DRAM (data plane) | 2 GB |
Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC and PoE |
Redundant power supply | Internal: AC, DC and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | <50 A |
Typical power (no modules) (watts) | 158 |
Maximum power with AC power supply (watts) | 450 (no PoE) |
Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
