SFP-GE-SX-C (02312UUB)
  • SFP-GE-SX-C (02312UUB)

OEM SFP-GE-SX-C (02312UUB) Huawei Compatible 1000BASE-SX eSFP 850nm 0.55km LC MMF Optical Transceiver Module

179
4.6
4.6/5.0
Q/A
23 Sold/Mon
Detail: Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
Model: SFP-GE-SX-C (02312UUB)
Condition: Compatible Huawei OEM
Related: Genuine New SFP-GE-LX-SM1310 (02315200) Huawei 1000BASE-LX/LH SFP 1310nm 10km DOM Duplex LC MMF/SMF Transceiver Module Genuine New eSFP-GE-SX-MM850 (02315204 02313URD) Huawei 1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF Transceiver Huawei Switch S5720-28P-LI-AC (98010768) Huawei Switch S5732-H24UM2CC (02353HUC -003, 02353SJY -001 -004 -010 -014 -020 -021 -024)
Warranty:
1 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

OEM SFP-GE-SX-C (02312UUB) Huawei Compatible 1000BASE-SX eSFP 850nm 0.55km LC MMF Optical Transceiver Module


Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)



Quick Specification


Table 1 show the quick specification

Model

SFP-GE-SX-C

Part Number

02312UUB

Description

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

Level-1 category

GE eSFP Optical Modules

Module name

SFP-GE-SX-C

Form factor

eSFP

Application standard

1000BASE-SX

Connector type

LC

Optical fiber type

MMF

Working case temperature [°C(°F)]

-20°C to +85°C (-4°F to +185°F)

Transmission rate [bit/s]

1 Gbit/s

Target transmission distance [km]

Multimode optical fiber (modal bandwidth: 160 MHz*km; diameter: 62.5 μm): 0.22 km

Multimode optical fiber (OM1): 0.275 km

Multimode optical fiber (modal bandwidth: 400 MHz*km; diameter: 50 μm): 0.5 km

Multimode optical fiber (OM2): 0.55 km

Multimode optical fiber (OM3): 1 km

Center wavelength [nm]

850

Maximum Tx optical power [dBm]

-2.5

Minimum Tx optical power [dBm]

-9.5

Minimum extinction ratio [dB]

9

Rx sensitivity [dBm]

-17.0

Overload power [dBm]

0

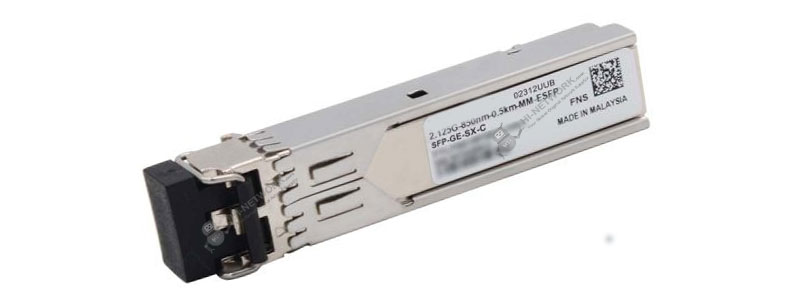

Figure 1 shows the appearance.

huawei-sfp-ge-sx-c-main-datasheet




Get More Information


Do you have any question about the SFP-GE-SX-C (02312UUB)?

Contact us now via [email protected].


Specific Data Sheet:

SFP-GE-SX-C Specification

Basic Information

Model

SFP-GE-SX-C

Part Number

02312UUB

Description

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

Level-1 category

GE eSFP Optical Modules

Technical Specifications

Connector type

LC

Optical fiber type

MMF

Form factor

eSFP

Transmission rate [bit/s]

1 Gbit/s

Target transmission distance [km]

Multimode optical fiber (modal bandwidth: 160 MHz*km; diameter: 62.5 μm): 0.22 km

Multimode optical fiber (OM1): 0.275 km

Multimode optical fiber (modal bandwidth: 400 MHz*km; diameter: 50 μm): 0.5 km

Multimode optical fiber (OM2): 0.55 km

Multimode optical fiber (OM3): 1 km

Application standard

1000BASE-SX

Working case temperature [°C(°F)]

-20°C to +85°C (-4°F to +185°F)

Center wavelength [nm]

850

Maximum Tx optical power [dBm]

-2.5

Minimum Tx optical power [dBm]

-9.5

Overload power [dBm]

0

Minimum extinction ratio [dB]

9

Rx sensitivity [dBm]

-17.0
