S-SFP-FE-LH40-SM1310 (02317344)
  • S-SFP-FE-LH40-SM1310 (02317344)

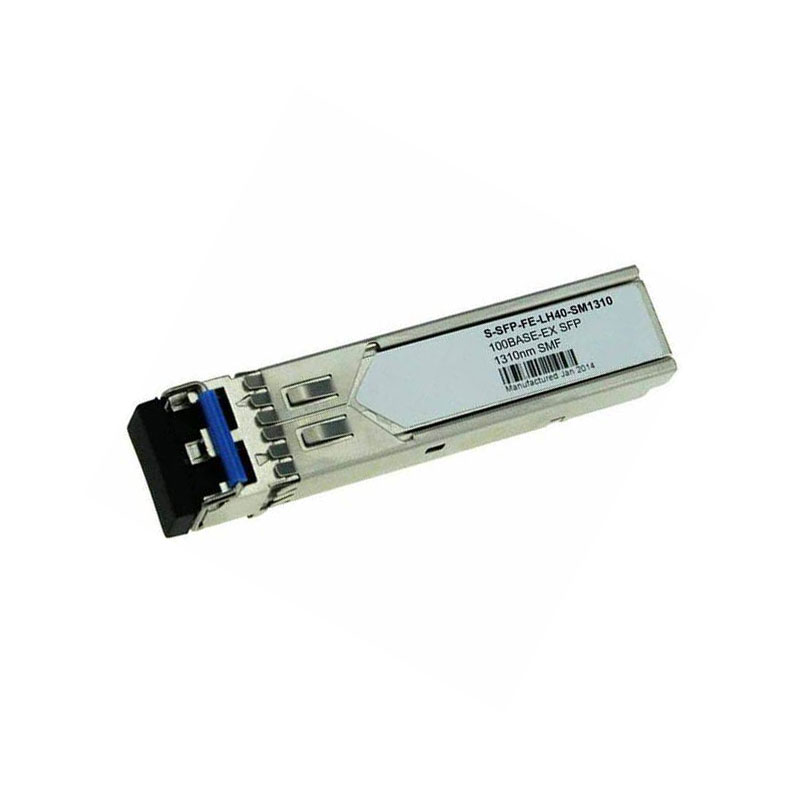

OEM S-SFP-FE-LH40-SM1310 (02317344) Huawei Compatible 100BASE-EX SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module

105
4.9
4.9/5.0
Q/A
23 Sold/Mon
Detail: Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)
Model: S-SFP-FE-LH40-SM1310 (02317344)
Condition: Compatible Huawei OEM
Related: OEM S-SFP-FE-LH80-SM1550 (02317345) Huawei Compatible 100BASE-ZX SMF 1550nm 80km SFP Transceiver Module Huawei Switch S5735-L24T4S-A1 (98011306, 98011306-001) Huawei CloudEngine Switch S5731-S48S4X-A (98011801/98011801-001)
Warranty:
1 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

OEM S-SFP-FE-LH40-SM1310 (02317344) Huawei Compatible 100BASE-EX SFP 1310nm 40km DOM Duplex LC SMF Transceiver Module


Huawei S-SFP-FE-LH40-SM1310 is Optical Transceiver. It’s a Single-mode Module.



Quick Specification


Table 1 shows the quick specification.

Model

S-SFP-FE-LH40-SM1310

Part Number

02317344

Description

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

Level-1 category

FE SFP/eSFP Optical Modules

Transceiver form factor

SFP

Transmission speed

Fast Ethernet

Center wavelength (nm)

1310

Standard compliance

100base-FX

Connector type

LC

Applicable cable and maximum transmission distance

Multimode fiber (50 μm or 62.5 μm diameter): 2 km

Transmit power (dBm)

-19.0 to -14.0

Maximum receiver sensitivity (dBm)

-30.0

Overload power (dBm)

-14.0

Extinction ratio (dB)

10

Operating temperature

0°C to 70°C (32°F to 158°F)

Net Dimension (D x W x H mm)

145 x 80 x 35

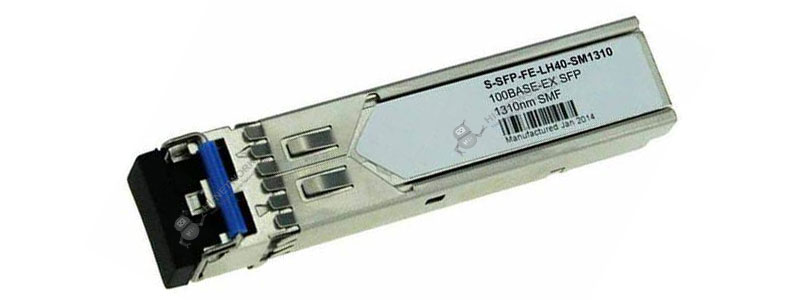

Figure 1 shows the appearance.

huawei-s-sfp-fe-lh40-sm1310-main-datasheet



Product Details


The Supported Switches


Table 2 shows the Huawei hot switches which support S-SFP-FE-LH40-SM1310.

Model

Description

S2700-26TP-EI-DC

24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, DC -48V

S2700-52P-EI-AC

48 x Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V

S2700-26TP-EI-AC

4 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, AC 110/220V

S2700-9TP-PWR-EI

8 x Ethernet 10/100 ports, PoE+, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V

S2700-26TP-PWR-EI

24 x Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP, PoE+, without power module

S2700-9TP-EI-AC

8 x Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V

S3700-28TP-EI-AC

24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V

S3700-28TP-SI-AC

24 x Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, AC 110/220V

S3700-28TP-PWR-SI

24 x Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, with 500W AC power supply


Compare to Similar Items


Table 3 shows the comparison of SFP-FE-SX-MM1310 and S-SFP-FE-LH40-SM1310.

Model

SFP-FE-SX-MM1310

S-SFP-FE-LH40-SM1310

Transceiver form factor

SFP

eSFP

Transmission speed

Fast Ethernet

100 Mbit/s

Center wavelength (nm)

1310

1310

Standard compliance

100base-FX

100base-LX

Connector type

LC

LC

Applicable cable and maximum transmission distance

Multimode fiber (50 μm or 62.5 μm diameter): 2 km

Single-mode fiber: 40 km

Transmit power (dBm)

-19.0 to -14.0

-5.0 to 0

Maximum receiver sensitivity (dBm)

-30.0

-37.0

Overload power (dBm)

-14.0

-10.0

Extinction ratio (dB)

10

10.5

Operating temperature

0°C to 70°C (32°F to 158°F)

0°C to 70°C (32°F to 158°F)

Net Dimension (D x W x H mm)

145 x 80 x 35

110 x 70 x 37


Get More Information


Do you have any question about the S-SFP-FE-LH40-SM1310 (02317344)?

Contact us now via [email protected].


Specific Data Sheet:


S-SFP-FE-LH40-SM1310 Specification

Basic Information

Model

S-SFP-FE-LH40-SM1310

Part Number

02317344

Description

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

Level-1 category

FE SFP/eSFP Optical Modules

Technical Specifications

Connector type

LC

Optical fiber type

SMF

Form factor

eSFP

Transmission rate [bit/s]

100 Mbit/s

Target transmission distance [km]

Single-mode fiber: 40 km

Application standard

Non-standard

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

Center wavelength [nm]

1310

Maximum Tx optical power [dBm]

0

Minimum Tx optical power [dBm]

-5.0

Overload power [dBm]

-10.0

Minimum extinction ratio [dB]

10.5

Rx sensitivity [dBm]

-37.0
