QSFP-40G-LR4 (02310MHS 02313URY)
  • QSFP-40G-LR4 (02310MHS 02313URY)

OEM QSFP-40G-LR4 (02310MHS 02313URY) Huawei Compatible 40GBASE-LR4 QSFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

398
4.6
4.6/5.0
Q/A
23 Sold/Mon
Detail: 40GBASE-LR4 optical transceiver, QSFP+, 40G, single-mode module (1310nm, 10km, LC)
Model: QSFP-40G-LR4 (02310MHS 02313URY)
Condition: Compatible Huawei OEM
Related: OEM SFP-6GE-LR (02310SRD) Huawei Compatible 1310nm,2km,LC SM Optical Transceiver Module OEM SFP-10G-iLR (02311BJJ) Huawei Compatible 1310nm,1.4km,LC SM Optical Transceiver Module Huawei Switch S5732-H24UM2CC (02353HUC -003, 02353SJY -001 -004 -010 -014 -020 -021 -024) Huawei Switch S5732-H48S6Q (02353AJU/02353AJU-001/02353AJU-003/02353AJU-004)
Warranty:
1 Years-Warranty
100% Money-back
Free After-Sales Service
Shipping:
Air Shipping to United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
Ships to:
0.3
2-7 Days US$
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Quantity
- +
add to Cart quick quote
add to Cart quick quote
  • Description
  • Specification
  • Reviews
  • Q&A
  • Warranty
  • Download

OEM QSFP-40G-LR4 (02310MHS 02313URY) Huawei Compatible 40GBASE-LR4 QSFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module


40GBase-LR4 Optical Transceiver, QSFP+,40GE, Single-mode Module (1310nm,10km, LC).




Quick Specification


Table 1 show the quick specification

Model

QSFP-40G-LR4

Part Number

02310MHS

Description

40GBase-LR4 Optical Transceiver, QSFP+, 40GE, Single-mode Module (1310nm, 10km, LC)

Form Type

QSFP+

Wavelength

1310nm

Interface

LC duplex

Cable Type

SMF

CDR Support

Yes

TX Power

-7~2.3dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Max Data Rate

44.6Gbps

Max Cable Distance*

10km

Optical Components

DFB CWDM

DOM Support

Yes

Protocols

OTN OTU3, 40G Ethernet, Infini band, Fiber Channel, SATA/SAS3

Receiver Sensitivity

<-11.5dBm

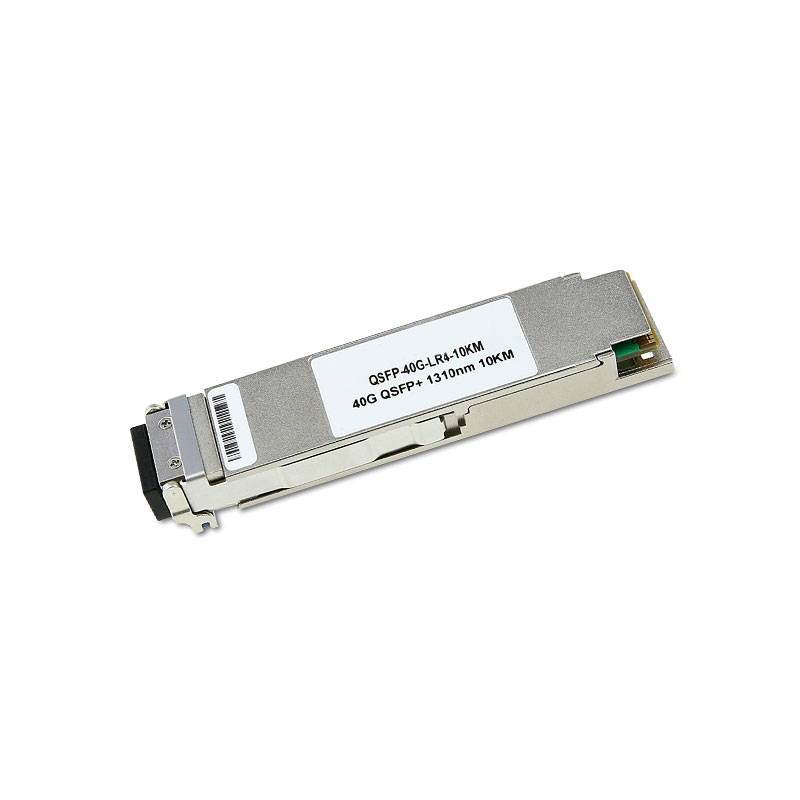

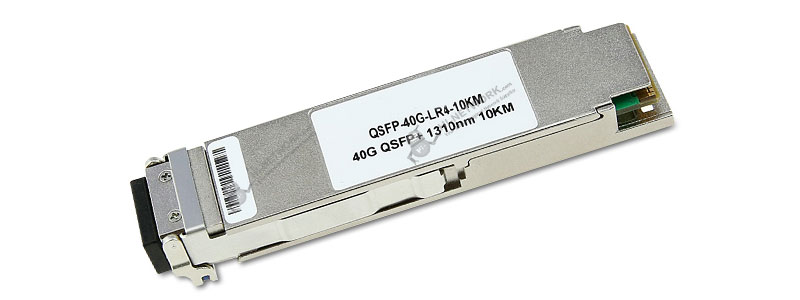

Figure 1 shows the appearance.

huawei-qsfp-40g-lr4(main)





Product Details


Compare to Similar Items


Table 2 shows the comparison of QSFP-40G-ER4, QSFP-40G-iSR4 and QSFP-40G-LR4.

Model

QSFP-40G-ER4

QSFP-40G-iSR4

QSFP-40G-LR4

Part Number

02311BKT

02310MHR

02310MHS

Description

40GBase-ER4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1310nm, 40km, LC)

40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multimode (850nm, 0.15km, MPO) (Connect to four SFP+ Optical Transceiver)

40GBase-LR4 Optical Transceiver, QSFP+, 40GE, Single-mode Module (1310nm, 10km, LC)

Form Type

QSFP+

QSFP+

QSFP+

Wavelength

1310nm

850nm

1310nm

Max Data Rate

44.6Gbps

40Gbps

44.6Gbps

Max Cable Distance*

40km**

150m**

10km


Get More Information


Do you have any question about the QSFP-40G-LR4 (02310MHS) ?

Contact us now via [email protected].


Specific Data Sheet:

QSFP-40G-LR4 Specification

Basic Information

Model

QSFP-40G-LR4

Part Number

02310MHS 02313URY

Description

40GBASE-LR4 optical transceiver, QSFP+, 40G, single-mode module (1310nm, 10km, LC)

Level-1 category

40GE QSFP+ Optical Modules

Technical Specifications

Connector type

LC

Optical fiber type

SMF

Form factor

QSFP+

Transmission rate [bit/s]

40G

Target transmission distance [km]

Single-mode fiber (G.652) (with diameter of 9 μm): 10 km

Application standard/Type

40GBASE-LR4

Working case temperature [°C(°F)]

0°C to 70°C (32°F to 158°F)

Type of the end face of the fiber ceramic ferrule

PC or UPC

Center wavelength [nm]

1271, 1291, 1311, 1331

Overload power (AVG) [dBm]

3.3

Maximum Tx optical power (AVG) [dBm]

2.3

Minimum Tx optical power (AVG) [dBm]

-7.0

Minimum extinction ratio [dB]

3.5

Rx sensitivity (OMA) [dBm]

-11.5
