OEM GLC-BX40-DA Compatible Cisco 1000BASE-BX-D BiDi SFP 1490nm-TX/1310nm-RX 40km DOM Simplex LC SMF Transceiver Module

(Note:  Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was  changed accordingly.  So Our Products Service will contact you after order if meet such special condition.)

Cisco GLC-BX40-D-I is a 1000BASE-BX40 SFP, delivering 1490 (TX) / 1310 (RX) nm Wavelength.

Quick Specification:

Table 1 shows the Quick Specs.

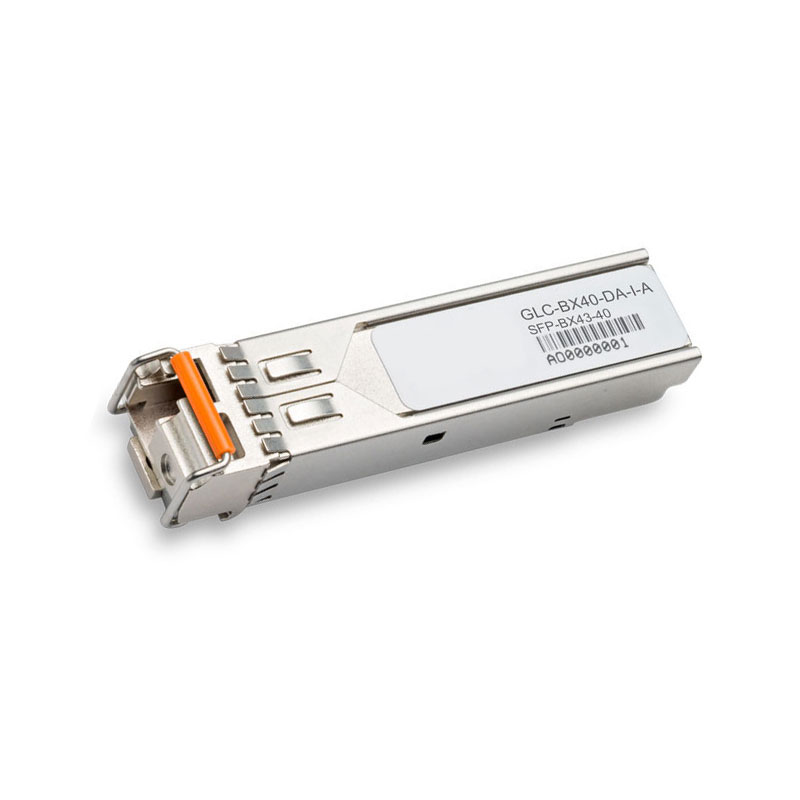

Figure 1 shows the appearance

Product Details

1000BASE-BX40-D and 1000BASE-BX40-U for Single-Fiber Bidirectional ApplicationThe Cisco GLC-BX40-D-I, GLC-BX40-DA-I and GLC-BX40-U-I SFPs operate on a single strand of standard SMF.

A GLC-BX40-D-I or GLC-BX40-DA-I device connects to a GLC-BX40-U-I device with a single strand of standard SMF with an operating transmission range up to 40 km.

The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices.

The GLC-BX40-D-I, GLC-BX40-DA-I, and GLC-BX40-U-I SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA).

This feature gives the end user the ability to monitor real-time parameters of the SFP,

such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Compare to Similar Item

Table 2 shows the comparison.
