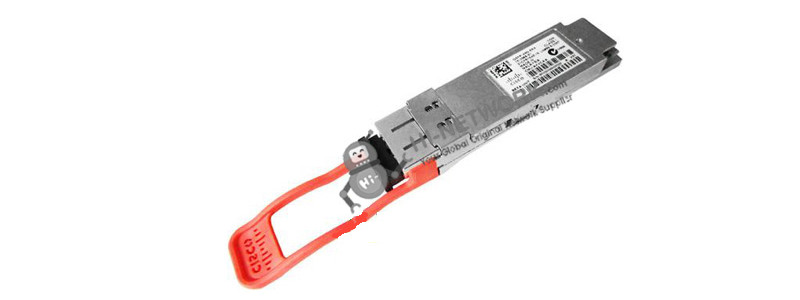

OEM Cisco QSFP-40G-CSR4 Compatible 850nm 4x10GBASE-SR Transceiver Optical Transceiver Module

USD

62 ~~$124~~ (50% OFF)

4.8 4.8/5.0 Reviews Q/A 15 Sold/Mon
Detail:	QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M
Model:	QSFP-40G-CSR4; QSFP-40G-CSR4=
Condition:	Compatible Cisco OEM; In stock
Related:
Warranty:	3 Years-Warranty 100% Money-back Free After-Sales Service
Shipping:	Air Shipping to United States , Most Customers Receive during 5-7 Days ? If you finish the payment today, your order will arrive within the estimated delivery time.
Ships to: 0.2	2-7 Days US$
Payment:	Pay by wire transfer. Pay with your paypal. Pay with your Visa credit card. Pay with your Mastercard credit card. Pay with your Discover Card. Pay by Western Union. More

Description
Specification
Reviews
Q&A
Warranty
Download

OEM Cisco QSFP-40G-CSR4 Compatible 850nm 4x10GBASE-SR Transceiver Optical Transceiver Module

(Note: Cisco discount and Stock always changed, we will try most effort to follow it but can not ensure every web was changed accordingly. So Our Products Service will contact you after order if meet such special condition.)

The Cisco 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio oﬀers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.

Quick Specification

Huawei Compatible	QSFP-40G-CSR4=
Description	Cisco 40GBASE-CSR4 QSFP Module for MMF
Dimensions	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	850
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	82m 300m 400m
Power Consumption (W)	1.5
Pull Tab Color	Orange

The Front Panel:

qsfp-40g-csr4=-datasheet

Features and benefits of Cisco QSFP 40G modules:

•Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port

•Interoperable with other IEEE-compliant 40GBASE interfaces where applicable

• Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability

•High-speed electrical interface compliant to the IEEE 802.3ba standard

•QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Compare to Similar Items

Product Code	QSFP-40G-CSR4=	QSFP-40G-CSR-S=
Description	Cisco 40GBASE-CSR4 QSFP Module for MMF	Cisco 40GBASE-CSR QSFP Module for Duplex MMF
Dimensions	13.5 x 18.4 x 72.4 mm	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	850	850
Cable Type	MMF	MMF
Core Size (microns)	50.0 50.0 50.0	50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)	2000 (OM3) 4700 (OM4)
Cable Distance	82m 300m 400m	300m 400m
Power Consumption (W)	1.5	3.5
Pull Tab Color	Orange	Orange

Get More Information

Do you have any question about theQSFP-40G-CSR4=?

Specific Data Sheet:

Huawei Compatible	QSFP-40G-CSR4=
Description	Cisco 40GBASE-CSR4 QSFP Module for MMF
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)	850
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	82m 300m 400m
Power Consumption (W)	1.5
Pull Tab Color	Orange
Optical characteristics
Type	40GBASE-CSR4, 4 lanes, 850 nm MMF
Transmit Power (dBm)	Max:0.0 per lane Min:-7.3 per lane
Receive Power (dBm)	Max:0.0 per lane Min:-9.9 per lane
Transmit and Receive Wavelength (nm)	840 to 860
Environmental conditions
Commercial temperature	0 to 70°C (32 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and standards compliance
Standards	•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant
